1.2 ”SIMODRIVE 611 universal” in the SIMODRIVE 611 system
1-30
 Siemens AG 2005 All Rights Reserved
SIMODRIVE 611 universal Description of Functions (FBU) – 04.05 Edition
The SIMODRIVE 611 drive converter system with the ”SIMODRIVE
611 universal” control board can comprise the individual components
and higher–level control components as shown in the following dia-
gram.
Equipment bus
DC link
SIMODRIVE
SIEMENS
Supply infeed module
Power module
e.g. control board
”SIMODRIVE 611 universal”
for encoders with sin/cos 1Vpp
PROFIBUS–DP
Optional
TERMINAL
module
or
Optional
PROFIBUS–DP
module
e.g. SIMATIC S7–300 (DP master)
DP slave
Motor and encoders
e.g. 1FT6, 1FK6 or 1PH7 and
encoders with sin/cos 1Vpp
...
Motor and encoders
e.g. 1FT6, 1FK6 or 1PH7 and
encoders with sin/cos 1Vpp
Memory module
Parameterizing
and start–up tool
”SimoCom U”
PG/PC
Setup.exe
(from SW 3.1)

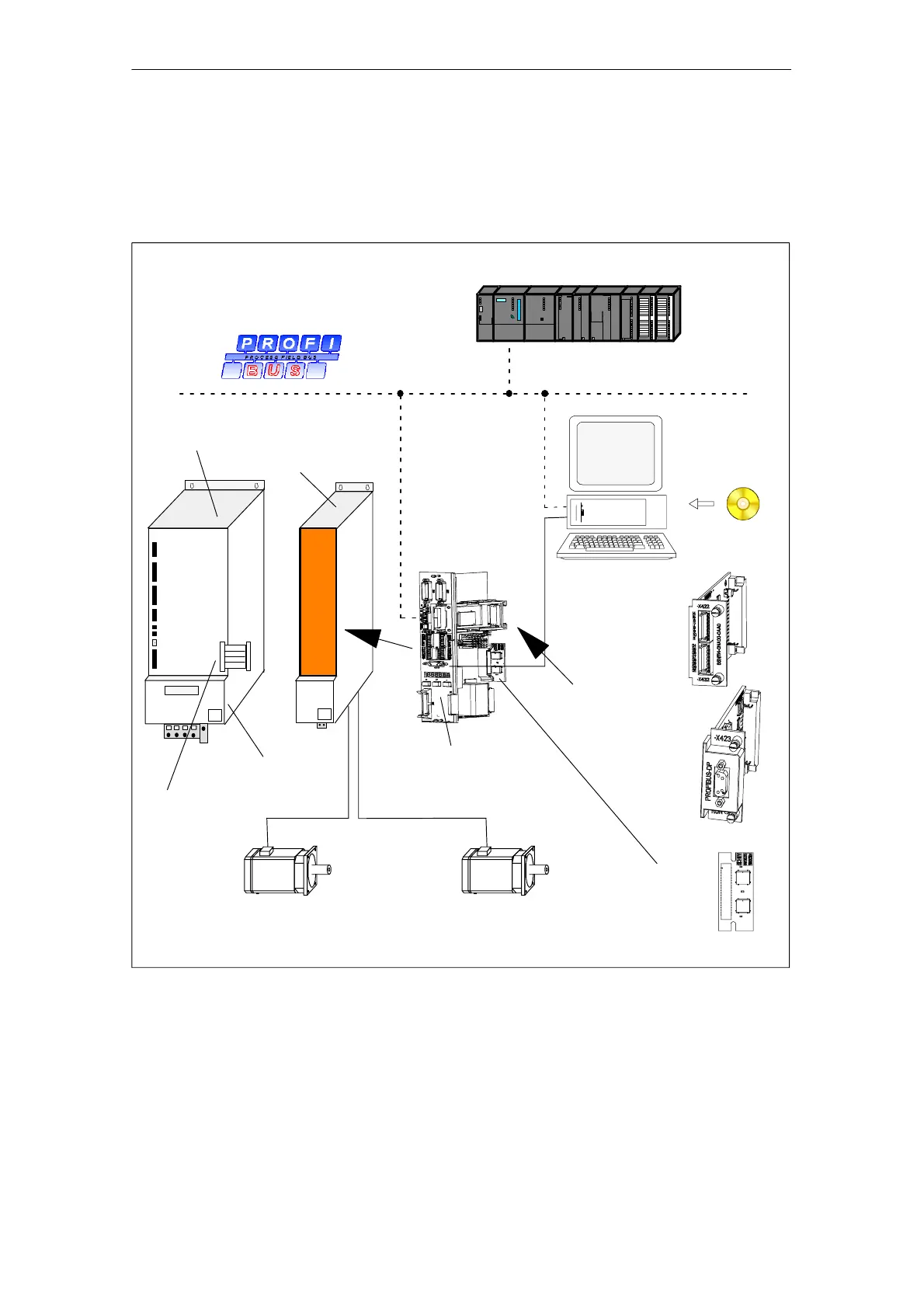

Fig. 1-2 System overview (schematic)
System overview
1 Product Overview
01.99
! 611ue diff !
