2.3 Connection diagram and wiring
2-80
 Siemens AG 2005 All Rights Reserved
SIMODRIVE 611 universal Description of Functions (FBU) – 04.05 Edition
2.3.4 Connection diagram, connecting–up the optional PROFIBUS–DP
module
Power module with
”SIMODRIVE 611 universal”
control board and
optional PROFIBUS–DP module
PROFIBUS–DP
e.g. SIMATIC S7–300 (DP master)
DP slave
...
...
DP slave
MPI
X423 X423
PG/PC
CP 5511
or
CP 5611
(from SW 3.1)
Ä
Ä

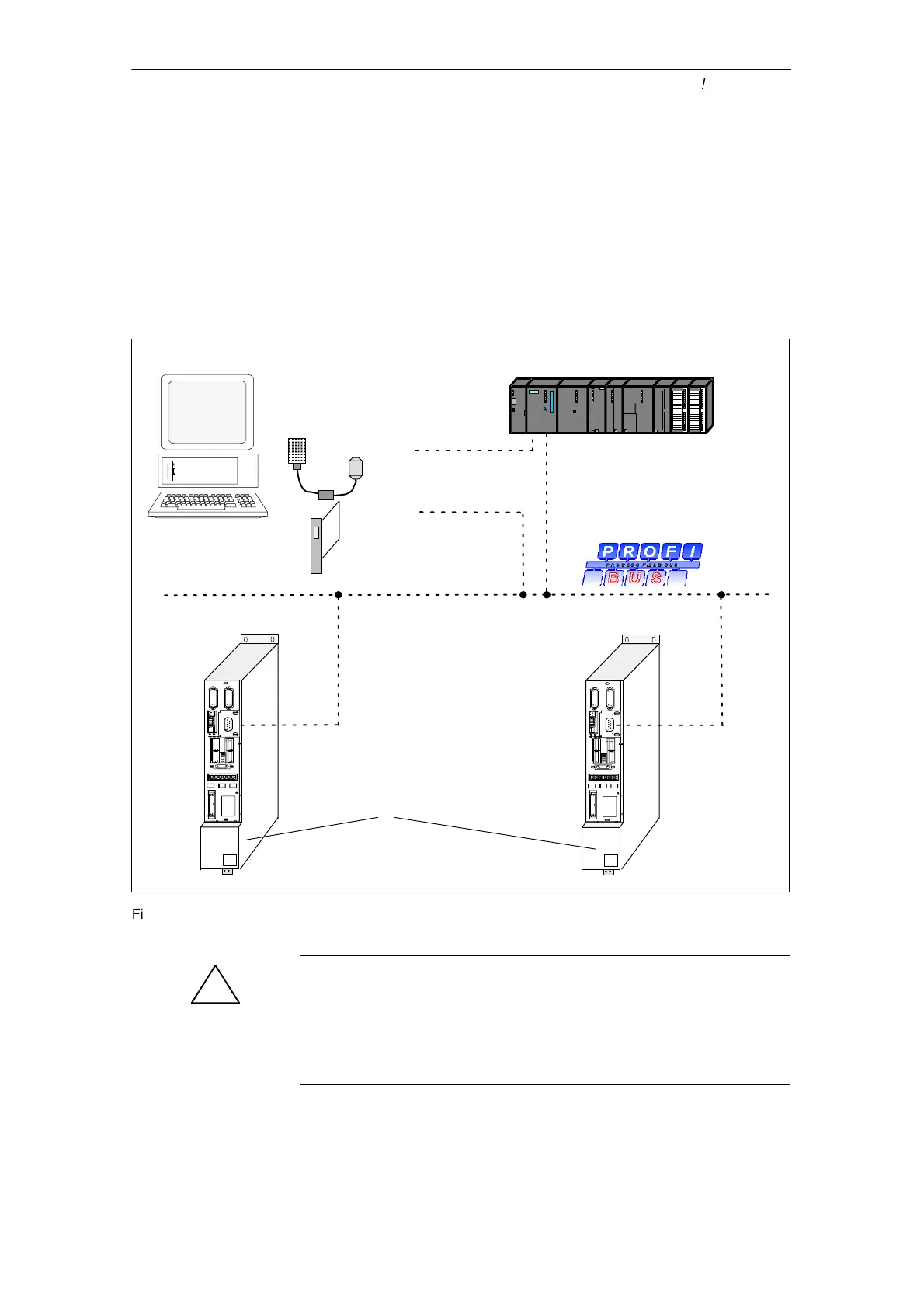

Fig. 2-8 Connection diagram for the optional PROFIBUS–DP module
!
Warning
The serial interface (X471) and the PROFIBUS–DP interface (X423)
use 9–pin D–SUB socket connectors.
If the cables are interchanged when connecting–up, this could destroy
the module or board of the communications partner.
Connection
diagram for the
optional
PROFIBUS–DP
module
