2.5 Cable diagrams
Cable diagram: 9/9 conductor
A commercially available 1 : 1 serial extension cable can be used to
connect a PG/PC to ”SIMODRIVE 611 universal”.
SIMODRIVE 611 universalPG/PC
RxD 2
TxD 3
0 V 5
RTS 7
CTS 8
2 TxD
3 RxD
50 V
7 CTS
8RTS
Connection at X471Connection to a
serial interface,
e.g. COM1/COM2 for PC/PG
9–pin
D–sub
skt. con.
9–pin
D–Sub
plug con.
0.1 mm
2
Setting the interface to
RS232 (P0801 = 0)

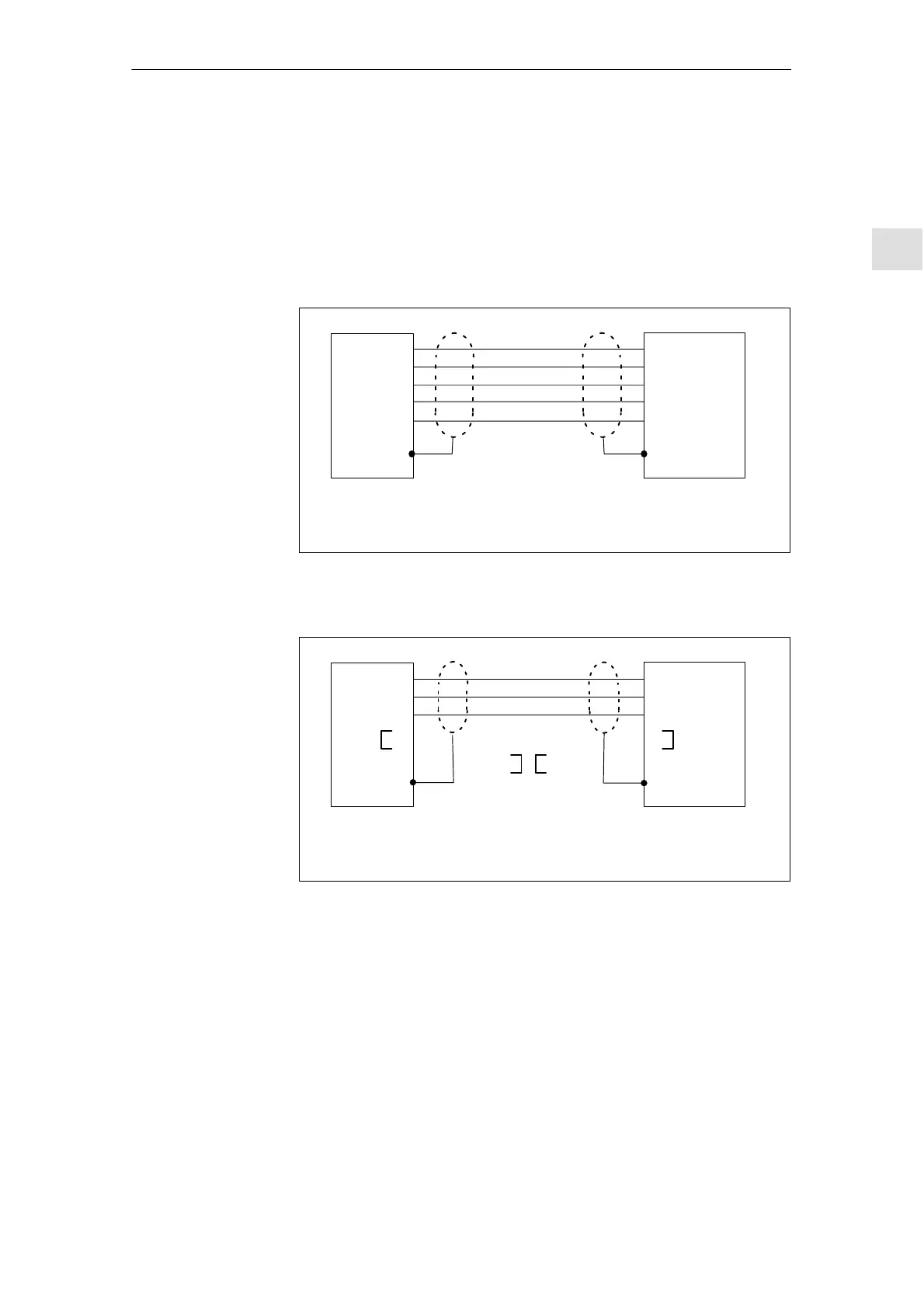

Fig. 2-10 RS232 connecting cable with RTS/CTS lines:
PG/PC <–> SIMODRIVE 611 universal
SIMODRIVE 611 universalPG/PC
RxD 2
TxD 3
0 V 5
RTS 7
CTS 8
2 TxD
3 RxD
50 V
7 CTS
8RTS
Connection at X471Connection to a
serial interface,
e.g. COM1/COM2 for PC/PG
9–pin
D–sub
skt. con.
9–pin
D–Sub
plug con.
0.1 mm
2
Setting the interface to
RS232 (P0801 = 0)
Jumpered
in the
connector
Fig. 2-11 RS232 connecting cable without RTS/CTS lines:
PG/PC <–> SIMODRIVE 611 universal
Cable diagram for
RS232
