1.4 ”SIMODRIVE 611 universal E” control board
1-45
 Siemens AG 2005 All Rights Reserved
SIMODRIVE 611 universal Description of Functions (FBU) – 04.05 Edition
1.4.2 Elements on the control board front panel
Motor
encoder
drive A
X411
Motor
encoder
drive B
X412
Serial
interface
(RS232)
X471
Display
and
operator unit
Equipment bus
X351
AS1
AS2
Signaling terminals
P24
M24
9
663
19
Terminals for supply and
pulse enable
75.A
16.A
75.B
16.B
15
(reference)
Analog outputs
Button for
POWER
ON RESET
Red
FAULT
LED
M DAU1 DAU2
X34
X453
X454
X472
X441
X431
X421
56.B
14.B
24.B
20.B
65.B
9
I0.B
I1.B
O0.B
O1.B
Terminals, drive B
Terminals, drive A
56.A
14.A
24.A
20.A
65.A
9
I0.A
I1.A
O0.A
O1.A
1 P_Encoder
2 M_Encoder
3A
4*A
5 Reserved
6B
7*B
8 Reserved
9 P_Encoder
10 R
11 M_Encoder
12 *R
13 Reserved
14 Reserved
15 Reserved
Optional
PROFIBUS–DP3
module
Encoder interface, TTL encoder
X423

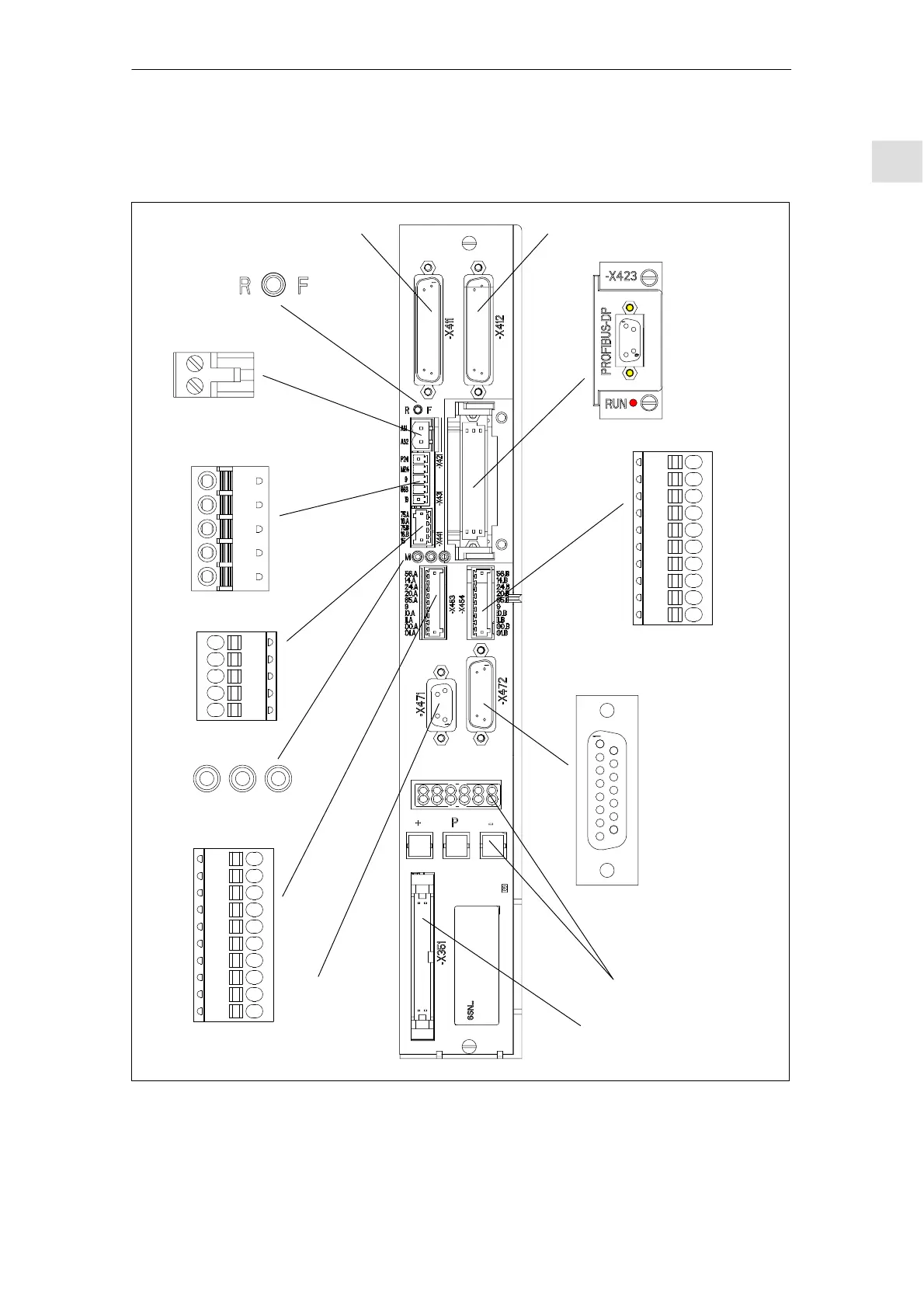

Fig. 1-10 Elements on the front panel of ”SIMODRIVE 611 universal E”
