5.10 Slave–to–slave communications (from SW 4.1)
5-327
 Siemens AG 2005 All Rights Reserved
SIMODRIVE 611 universal Description of Functions (FBU) – 04.05 Edition
The following parameters should be set at the slave drive:
 Source for the ”external position reference value”
––> e.g. P0891 = 4: PROFIBUS–DP
 Select the coupling type using P0410
––> e.g. P0410 = 7: Coupling to the absolute position + P0412
via the digital input signal
 Define the optional coupling factor for revolutions, master and slave
drive
––> P0401 and P0402 (e.g. 1)

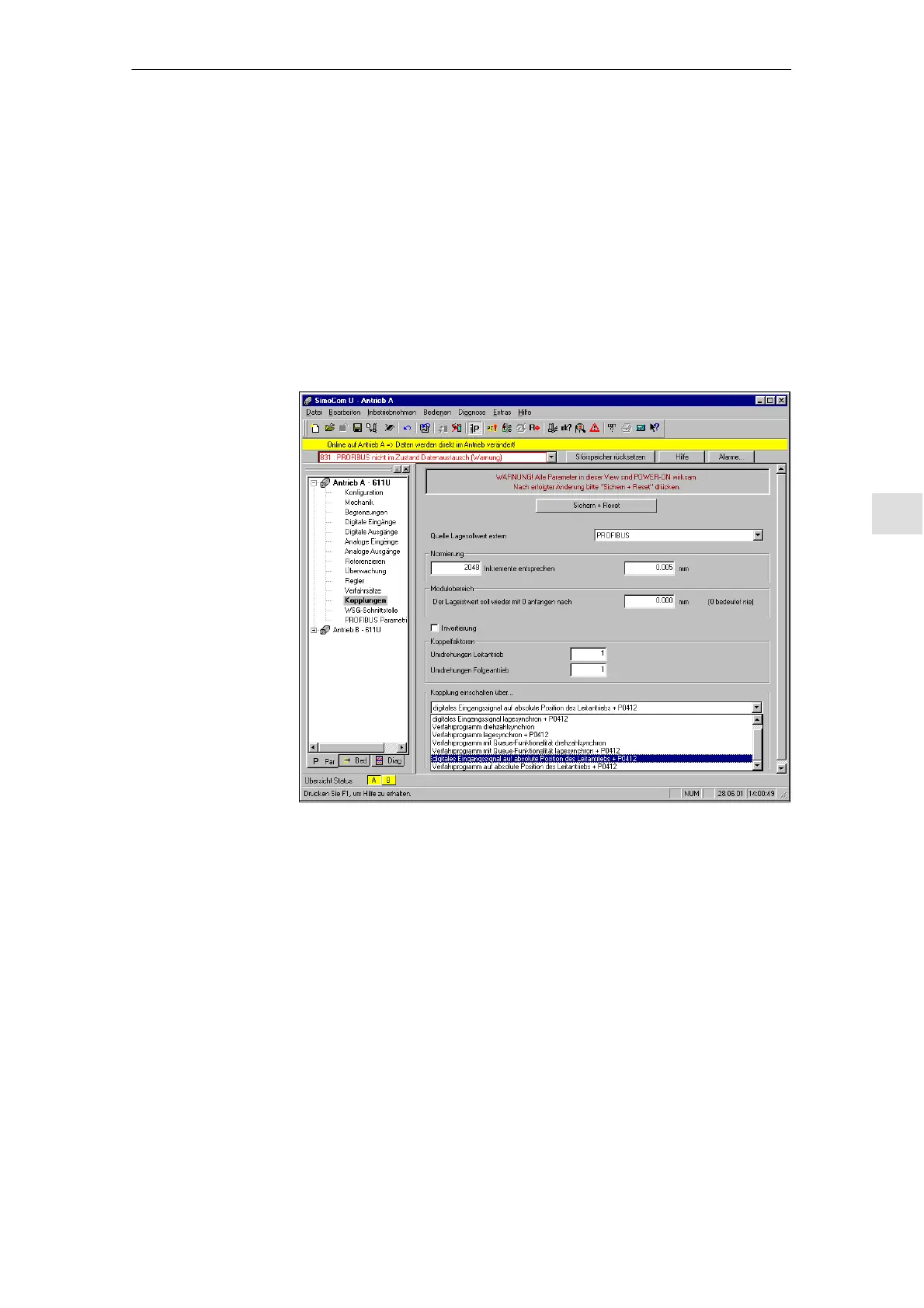

Fig. 5-40 Parameterizing the couplings
The DP master must set control word PosStw.4 in order to activate the
coupling.

