1.3 ”SIMODRIVE 611 universal” control board
1-36
Siemens AG 2005 All Rights Reserved
SIMODRIVE 611 universal Description of Functions (FBU) – 04.05 Edition
The following 1–axis control boards are available:
These interfaces have
no function for the
1–axis version
Slot for
Optional TERMINAL module
or
Optional PROFIBUS–DP
module
Memory module
Firmware
User data
Pulse interface
For screws:
Tighten (to establish a good shield
contact) max. torque = 0.8 Nm
1 axis for resolvers
(refer to Table 1-2)
Equipment bus
Display and operator unit
Interfaces
Terminals
Switch
For plug connections:
Plug connectors with the same number of pins must be
appropriately coded so that they cannot be interchanged
(refer under the index entry ”Coding the mini connectors”).
X302

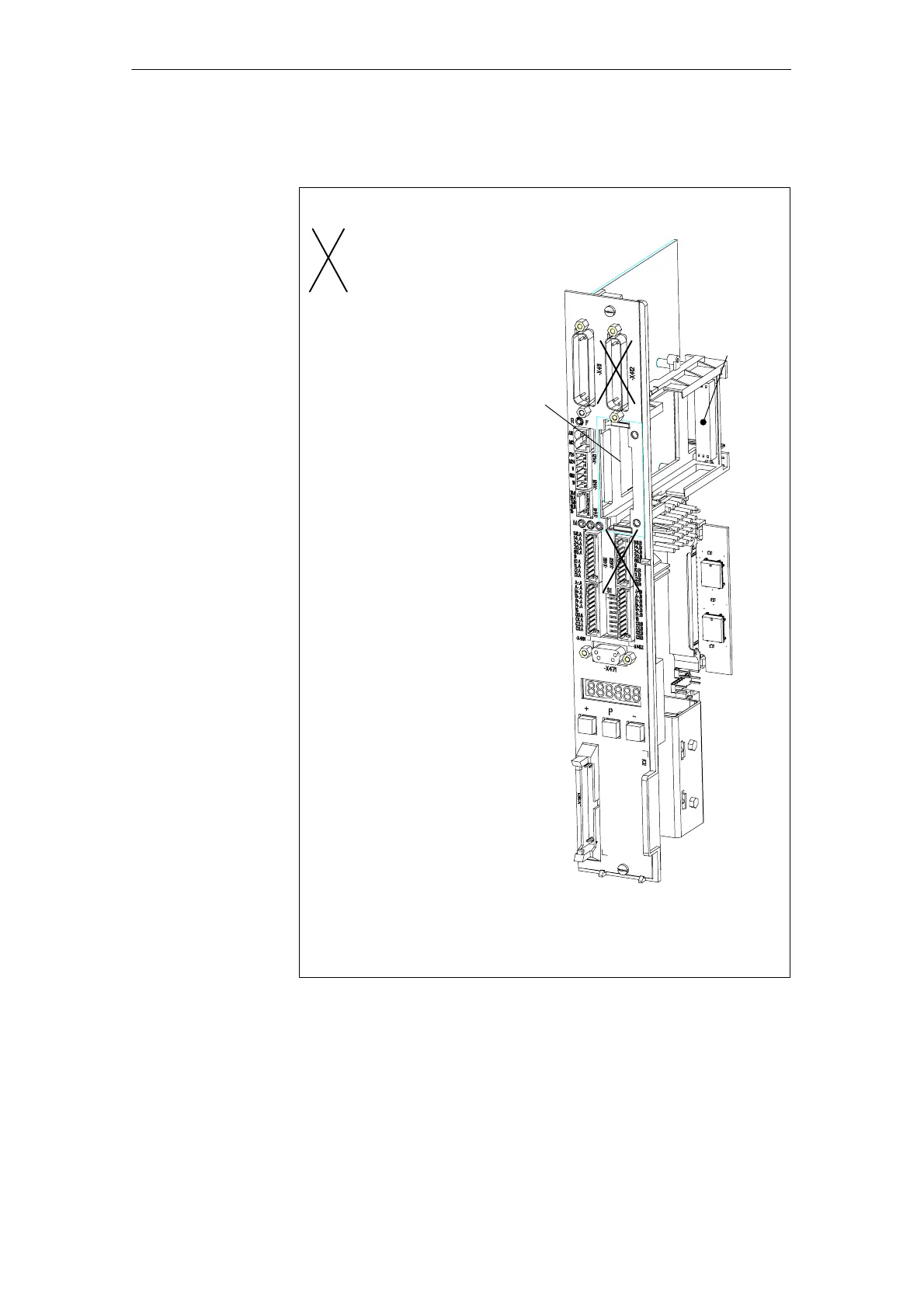

Fig. 1-4 Control board for 1 axis
Control
board
for 1 axis
02.02
