6.8 Angular incremental encoder interface (X461, X462)
6-562
 Siemens AG 2005 All Rights Reserved
SIMODRIVE 611 universal Description of Functions (FBU) – 04.05 Edition
Signal A
Signal B
A+.x
B+.x
R+.x 1 zero pulse/rev
Encoder
signals
Angular incremental encoder signals
Note:
The zero pulse is generated from
”SIMODRIVE 611 universal”.
Zero pulses which can be evaluated
are only available for rotary encoders
with pulse number 2
n
.
1 pulse ( 360)90
x: Space retainer for
drive A or B

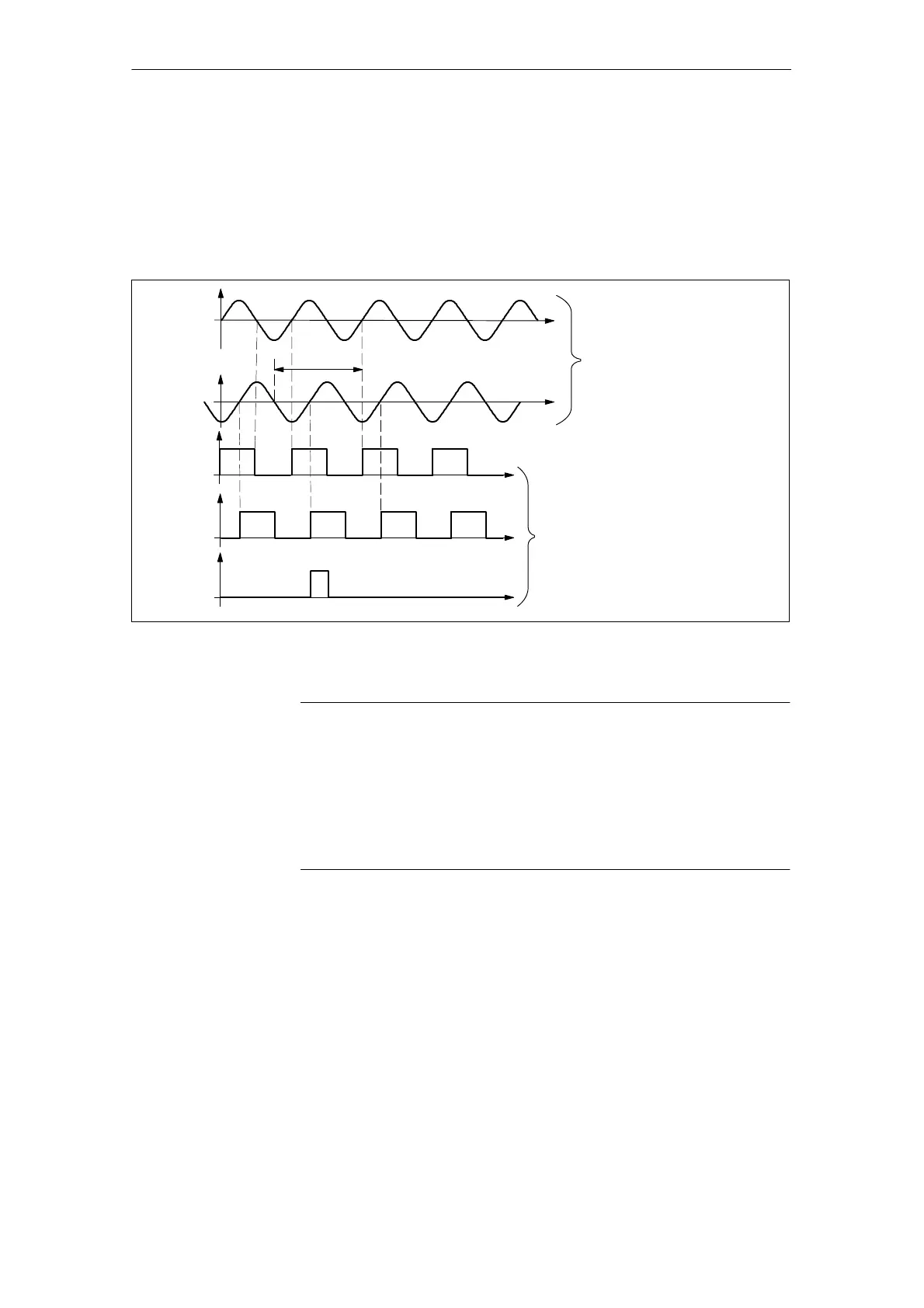

Fig. 6-68 Angular incremental encoder signals for absolute value encoders with sin/cos 1Vpp and EnDat
interface
Note
If the absolute value encoder has more than 2
n
=2048 increments
(n=11), then one zero mark is output for each 2048 increments.
This means, that encoder pulse number/2048 zero marks are output at
the angular incremental encoder interface per motor revolution;
whereby the factor angular incremental encoder pulse number/encoder
pulse number is selected as 1:1.
Angular
incremental
encoder signals
for absolute value
encoders with
sin/cos 1Vpp and
EnDat interface
