Table 7-6 Parameters for the function generator, continued
Parameters
No. EffectiveUnitsMax.Stan-
dard
Min.Description

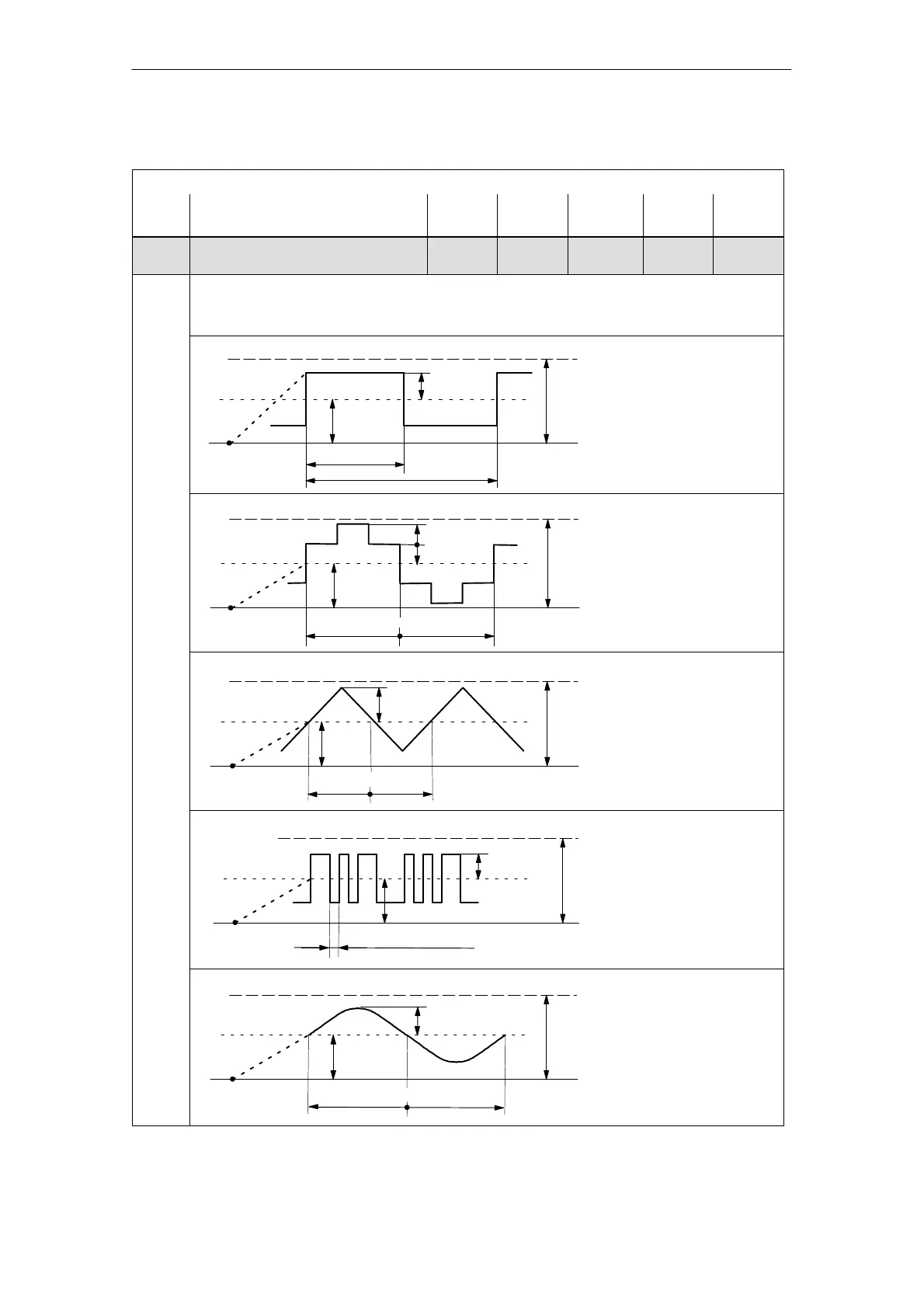

1805 Function generator, waveform 1 1 5 – Immedi-
ately
... specifies which function generator waveform should be output.
Note: When a parameter is changed with the function generator active, this causes the
system to crash.
Start
= 1 Squarewave
Offset
Amplitude
Pulse width
Period
Limiting Parameter list
Offset: P1807
Amplitude: P1806
Pulse width: P1811
Period: P1810
Limit: P1808
Ramp–up time: P1813
Ramp–up
time
= 2 Staircase
Start
Offset
2nd amplitude
Amplitude
Period
Limiting
Ramp–up
time
Parameter list
Offset: P1807
Amplitude: P1806
2. amplitude: P1809
Period: P1810
Limit: P1808
Ramp–up time: P1813
–”– –”–
Start
= 3 Triangular
Offset
Amplitude
Period
Limiting
Ramp–up
time
Parameter list
Offset: P1807
Amplitude: P1806
Period: P1810
Limit: P1808
Ramp–up time: P1813
–”– –”–
Start
= 4 PRBS (pseudo random binary signal)
Offset
Amplitude
Limiting
Ramp–up
time
1/(2 x bandwidth)
Parameter list
Offset: P1807
Amplitude: P1806
Bandwidth: P1812
Limit: P1808
Ramp–up time: P1813
White
noise
Start
= 5 Sinusoidal
Offset
Amplitude
Period
Limiting
Ramp–up
time
Parameter list
Offset: P1807
Amplitude: P1806
Period: P1810
Limit: P1808
Ramp–up time: P1813
–”– –”–
