Configuration
5.4 Installation
1FW6 Built-in torque motors
122 Configuration Manual, 07/2017, 6SN1197-0AE00-0BP9

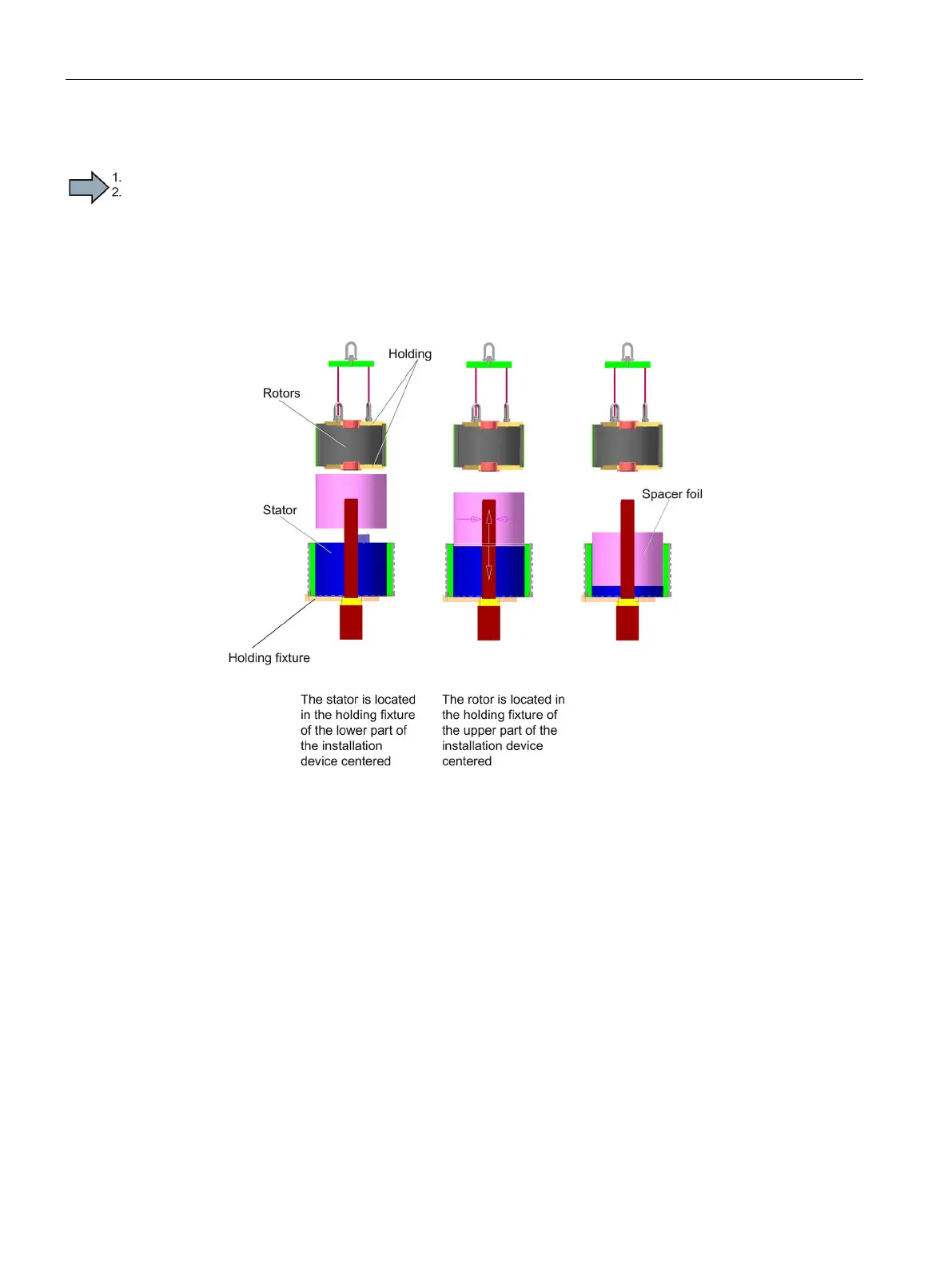

Example: Centering and installing motors with a cooling jacket
1. Place the stator so that it is centered in the holding fixture of the lower part of the
installation device.
2. Place the rotor so that it is centered in the holding fixture of the upper part of the
installation device.
3. Insert the spacer film in the stator in such a way that approx. 1/4 of the spacer film
protrudes.
