Configuration
5.4 Installation
1FW6 Built-in torque motors
Configuration Manual, 07/2017, 6SN1197-0AE00-0BP9
123

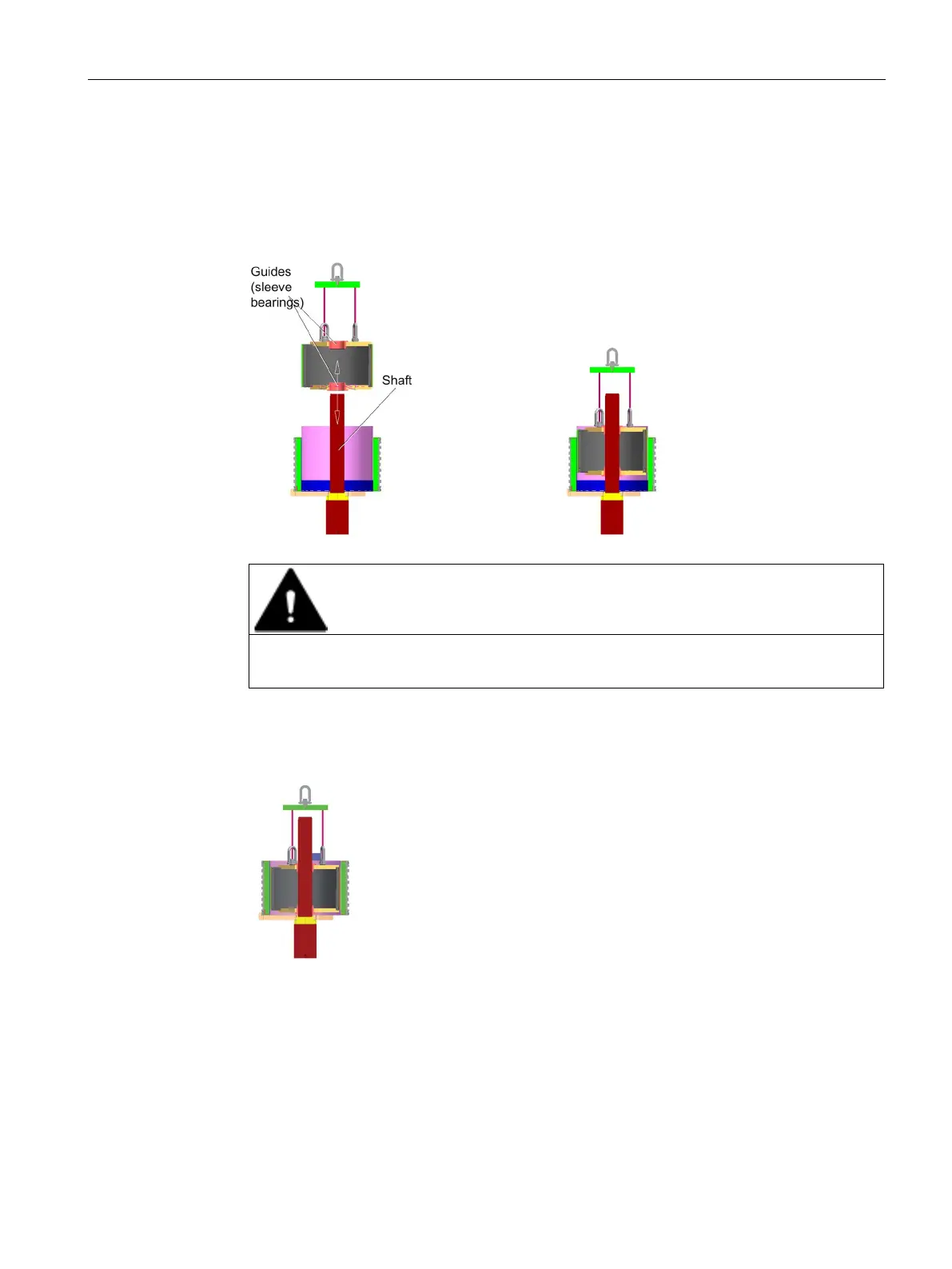

4. Carefully lower the rotor using the upper part of the installation device and carefully fit it
into the lower part of the installation device in such a way that the rotor can be aligned
centrically over the sleeve bearing and shaft in the stator.
Risk of crushing when the rotor is lowered.
• Take extreme care when performing any work.
5. Using the top part of the installation device, lower the rotor as far as it will go into the
lower part of the installation device.
