Siemens SIMOTICS T-1FW6 Configuration Manual

Electrical connection
8.3 System integration
1FW6 Built-in torque motors
476 Configuration Manual, 07/2017, 6SN1197-0AE00-0BP9

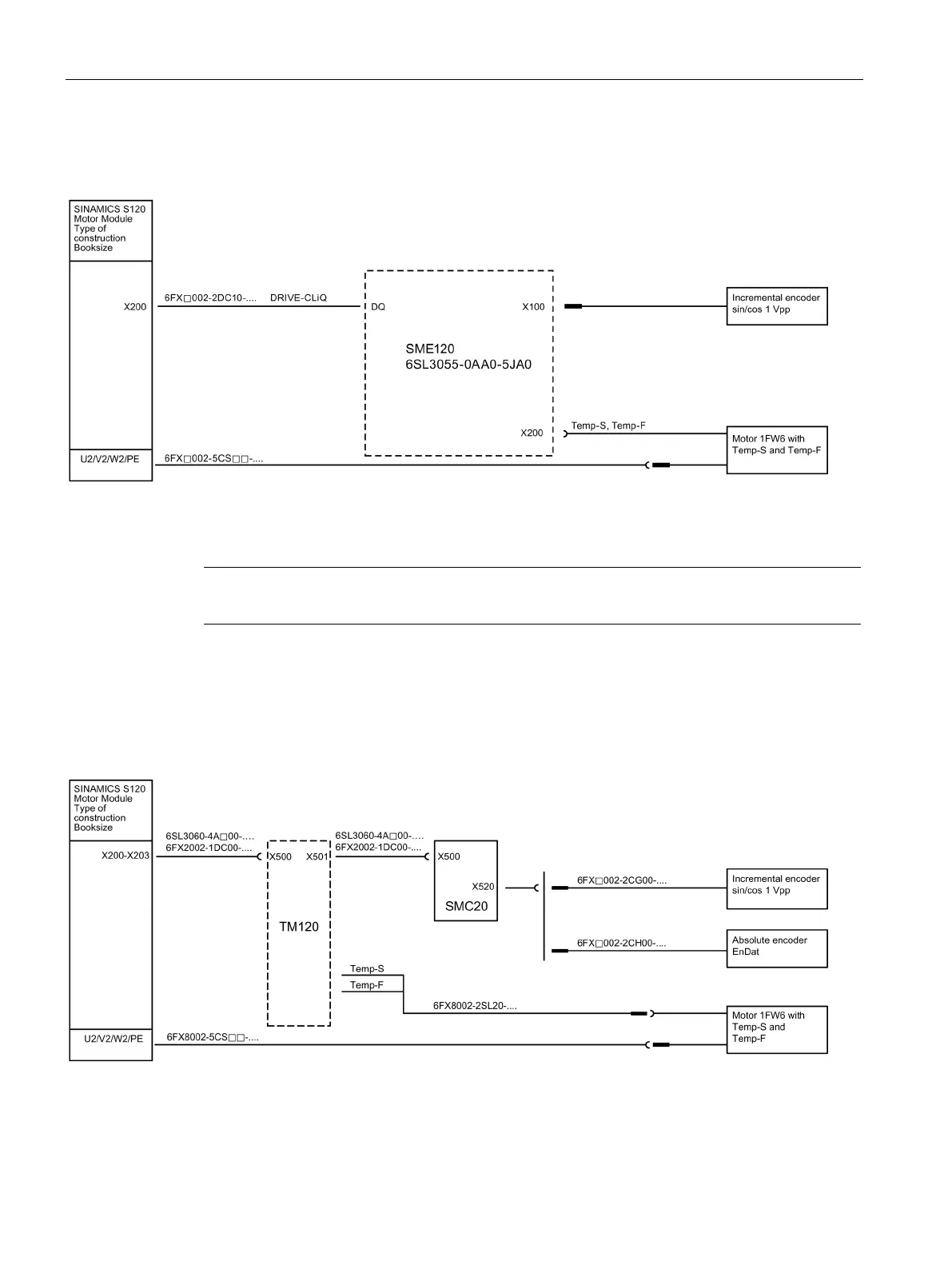

The following diagram shows an example of a motor integrated into a system with the
connection of Temp-S, Temp-F and an incremental encoder (sin/cos 1 V
PP
) via SME120.
Figure 8-3 System integration with SME120 (example)
Note
Connector sizes, see Chapter "
Data for the power cable at the stator (Page 506)".
The following diagram shows an example of a motor integrated into a system with the
connection of Temp-S and Temp-F via TM120. An incremental encoder (sin/cos 1 V
PP
) or
absolute encoder (EnDat with 1 V
PP
, order designation EnDat01 or EnDat02, or SSI with
1 V
PP
) is connected via SMC20.
Figure 8-4 System integration with TM120 (example)
