Siemens SIMOTICS T-1FW6 - Page 483

Electrical connection
8.3 System integration
1FW6 Built-in torque motors
Configuration Manual, 07/2017, 6SN1197-0AE00-0BP9
481
Dimensions of the electrical connections

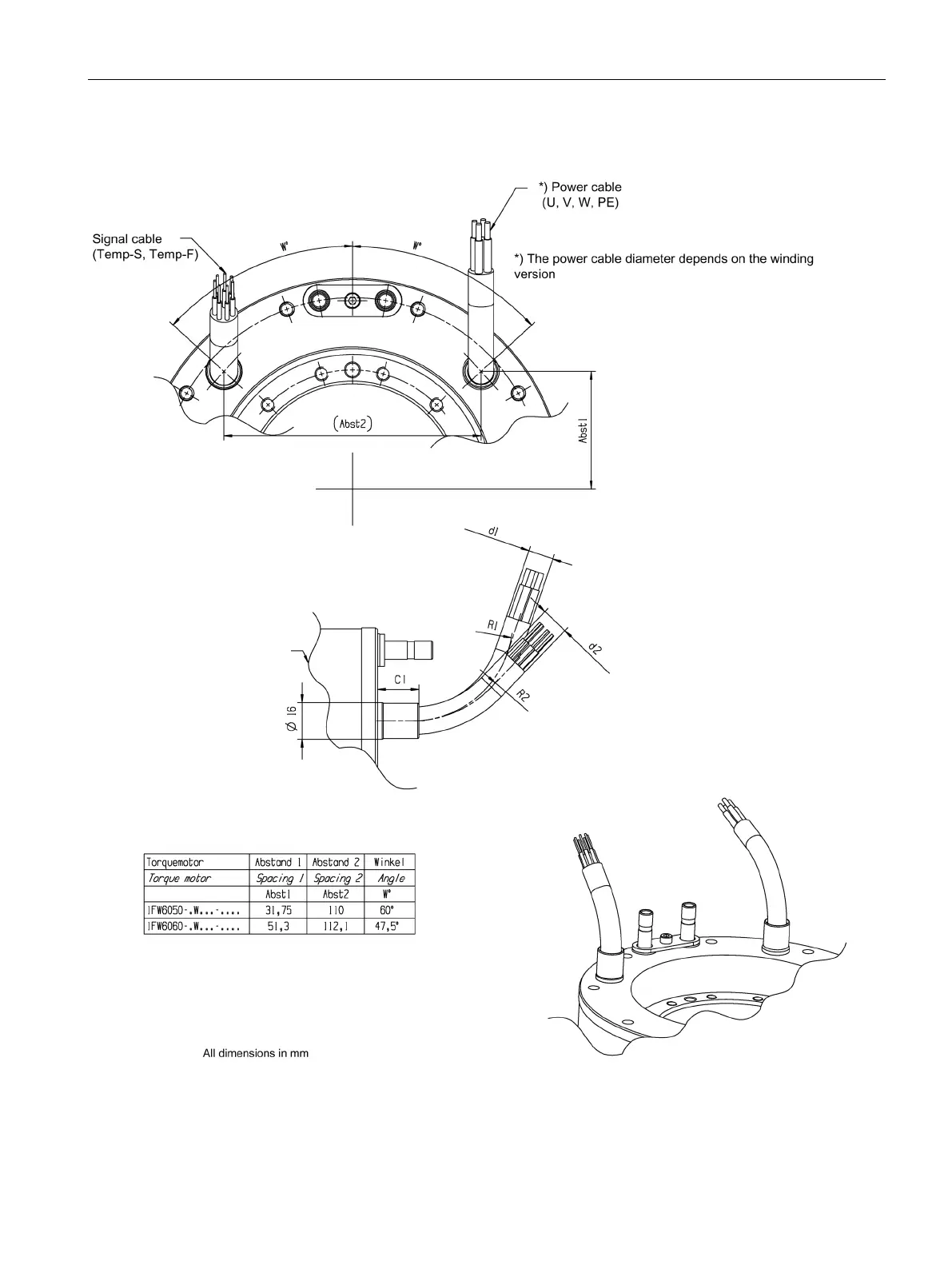

Figure 8-5 Electrical connection axial with sleeve for 1FW605 and 1FW606
