Electrical connection
8.3 System integration
1FW6 Built-in torque motors
482 Configuration Manual, 07/2017, 6SN1197-0AE00-0BP9

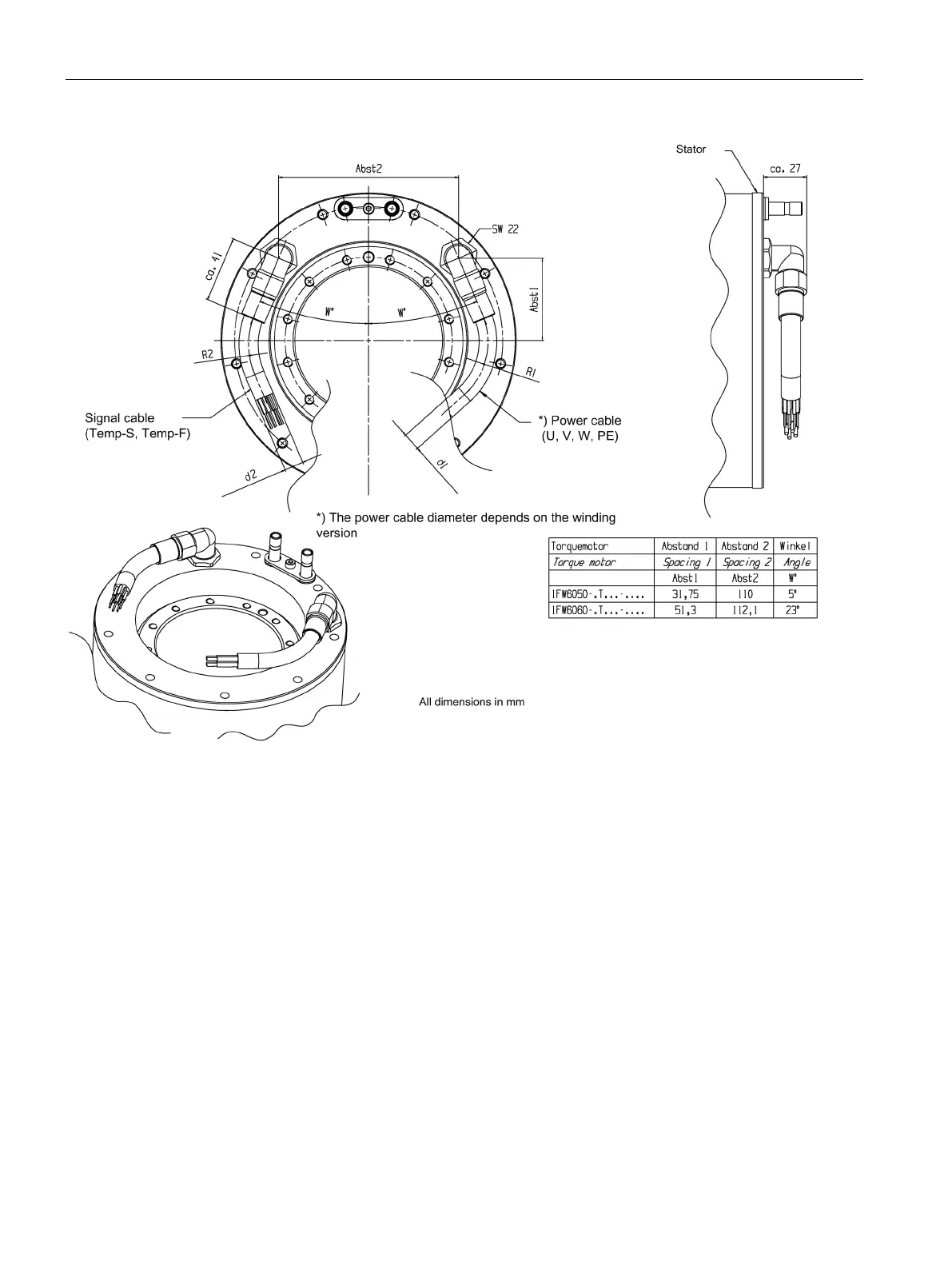

Figure 8-6 Electrical connection tangential with sleeve for 1FW605 and 1FW606
