Siemens SIMOTICS T-1FW6 Configuration Manual

Installation drawings/Dimension drawings
9.2 Information on the installation drawings
1FW6 Built-in torque motors
520 Configuration Manual, 07/2017, 6SN1197-0AE00-0BP9
Installation dimensions
For the design, pay special attention to the following dimensions.
L_St
Stator length
L_Ro
Rotor length

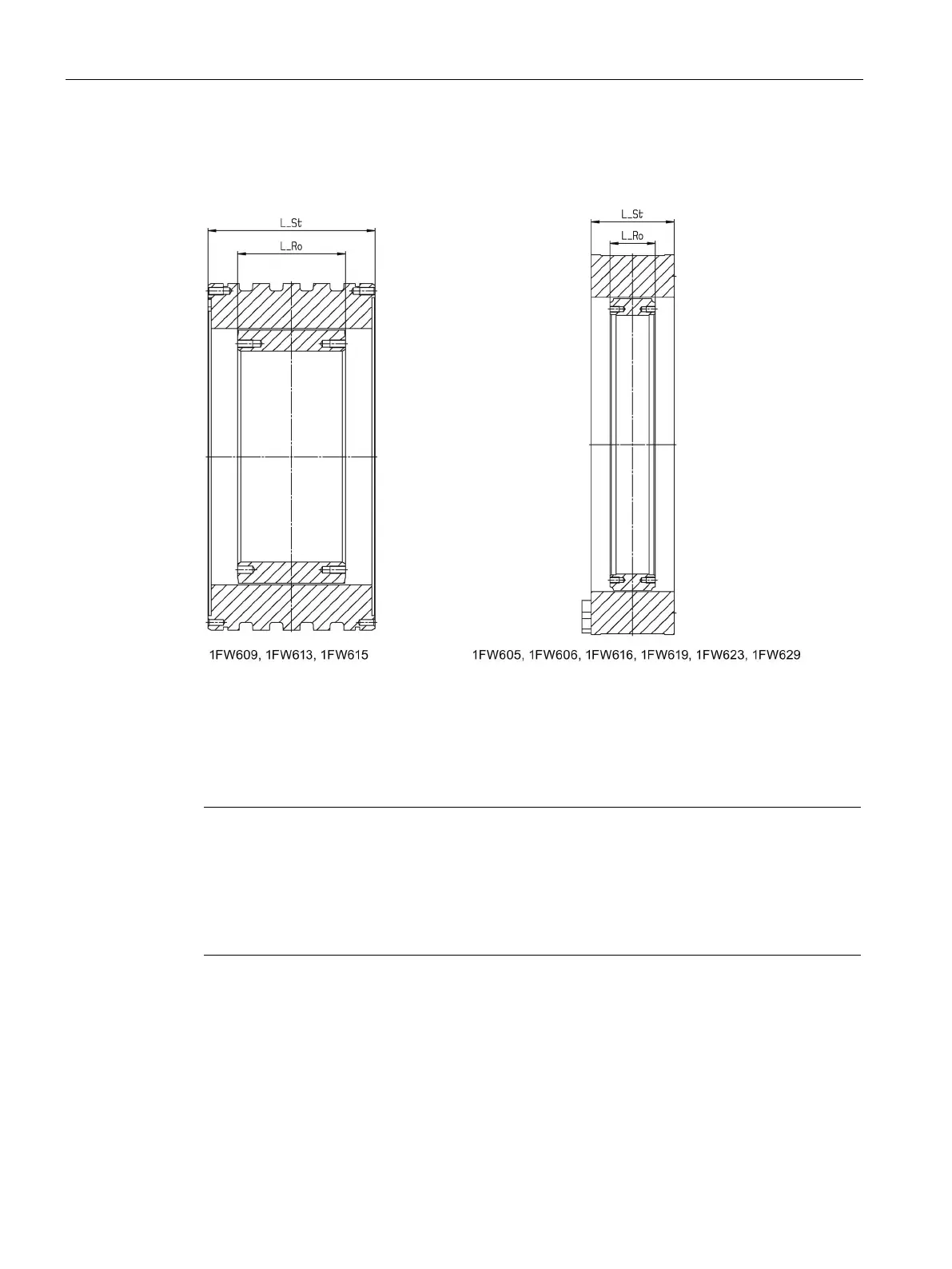

Figure 9-2 Stator length and rotor length of 1FW6 built-in torque motors
Note
Motor dimensions
Siemens reserves the right to change the motor dimensions as part of design improvements
without prior notification. The dimension drawings provided in this documentation, therefore,
may not
necessarily be up to date.
You can request up
-to-date dimension drawings at no charge.
