Servo control
4.17 Travel to fixed stop
Drive functions
176 Function Manual, 11/2017, 6SL3097-4AB00-0BP5
Signal chart

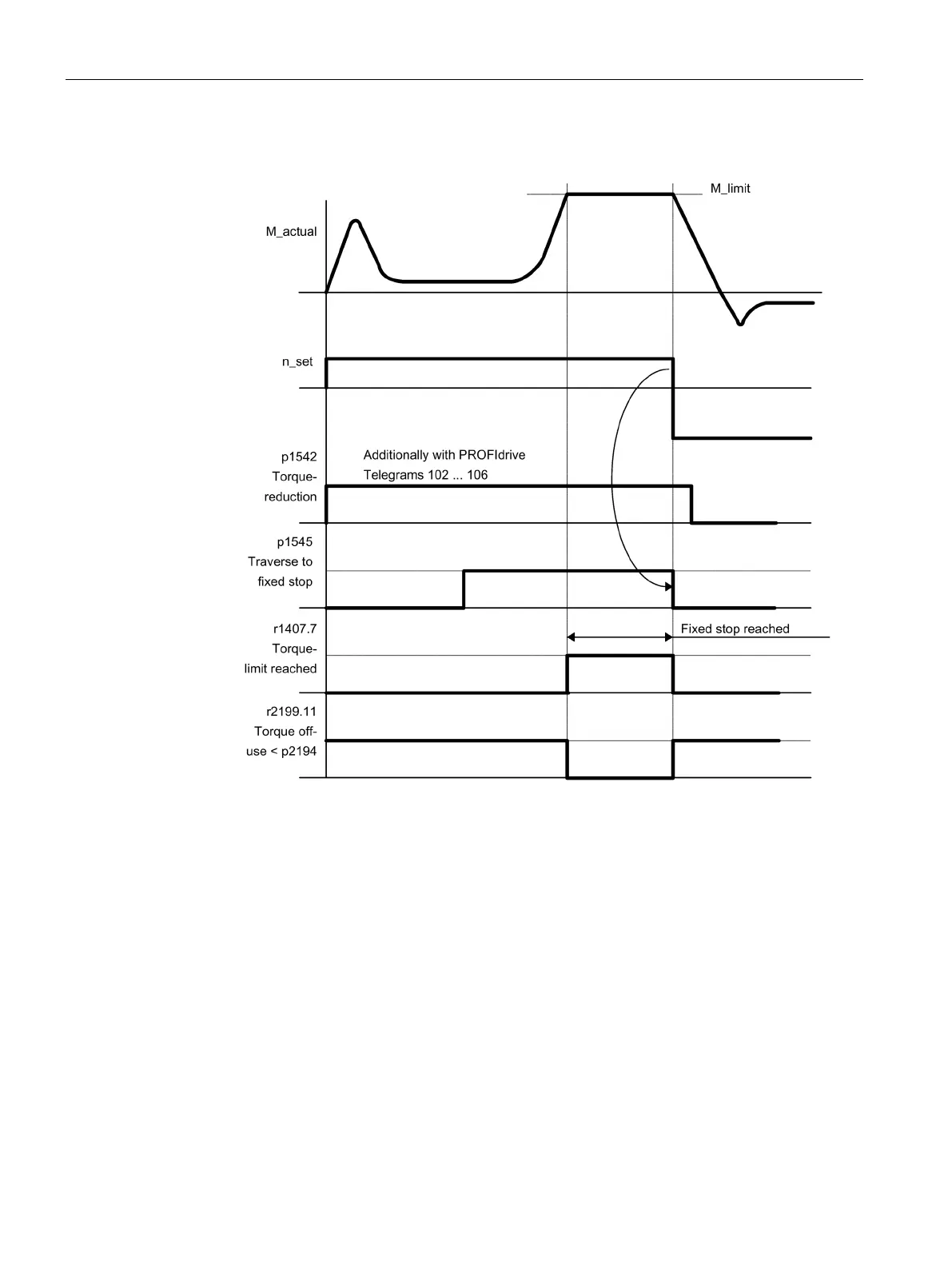

Figure 4-22 Signal chart for "Travel to fixed stop"
