Siemens SINAMICS S120 - Displaying Diagnostic Functions; Status and Operating Display of the Drive Object

Basic functions
7.30 Web server
Drive functions
Function Manual, 11/2017, 6SL3097-4AB00-0BP5
445
7.30.7
Displaying diagnostic functions
7.30.7.1
Status and operating display of the drive object
The status and operating display of the drive objects can be called with the aid of the Web
server.
Displaying the Service overview
1. Click the “Diagnostics" entry in the navigation.
2. Click the “Service overview" tab.
All the drive objects of the drive are listed in the Internet browser.

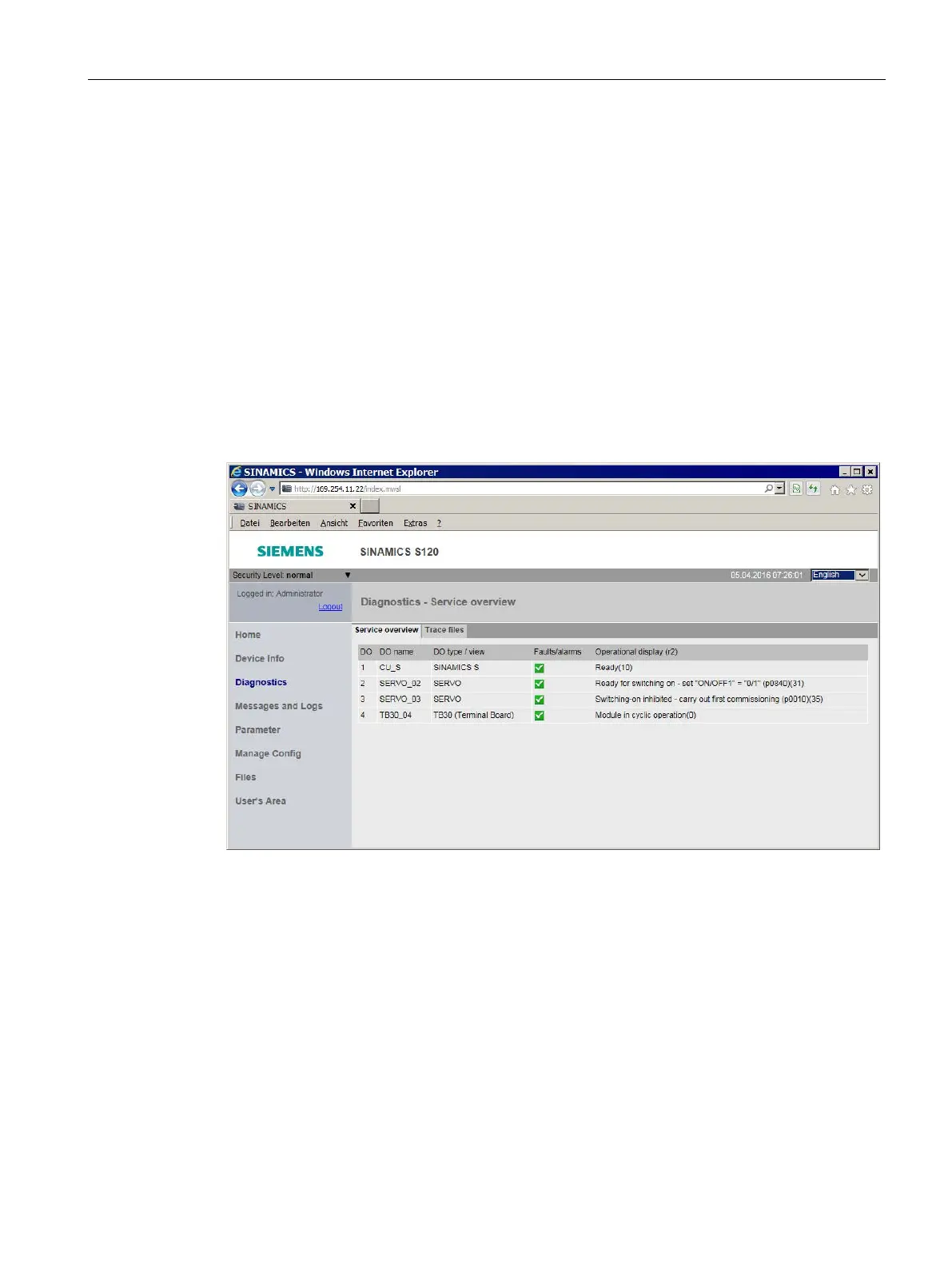

Figure 7-33 Status or operating display of the drive objects
