Basic functions
7.30 Web server
Drive functions
Function Manual, 11/2017, 6SL3097-4AB00-0BP5
443

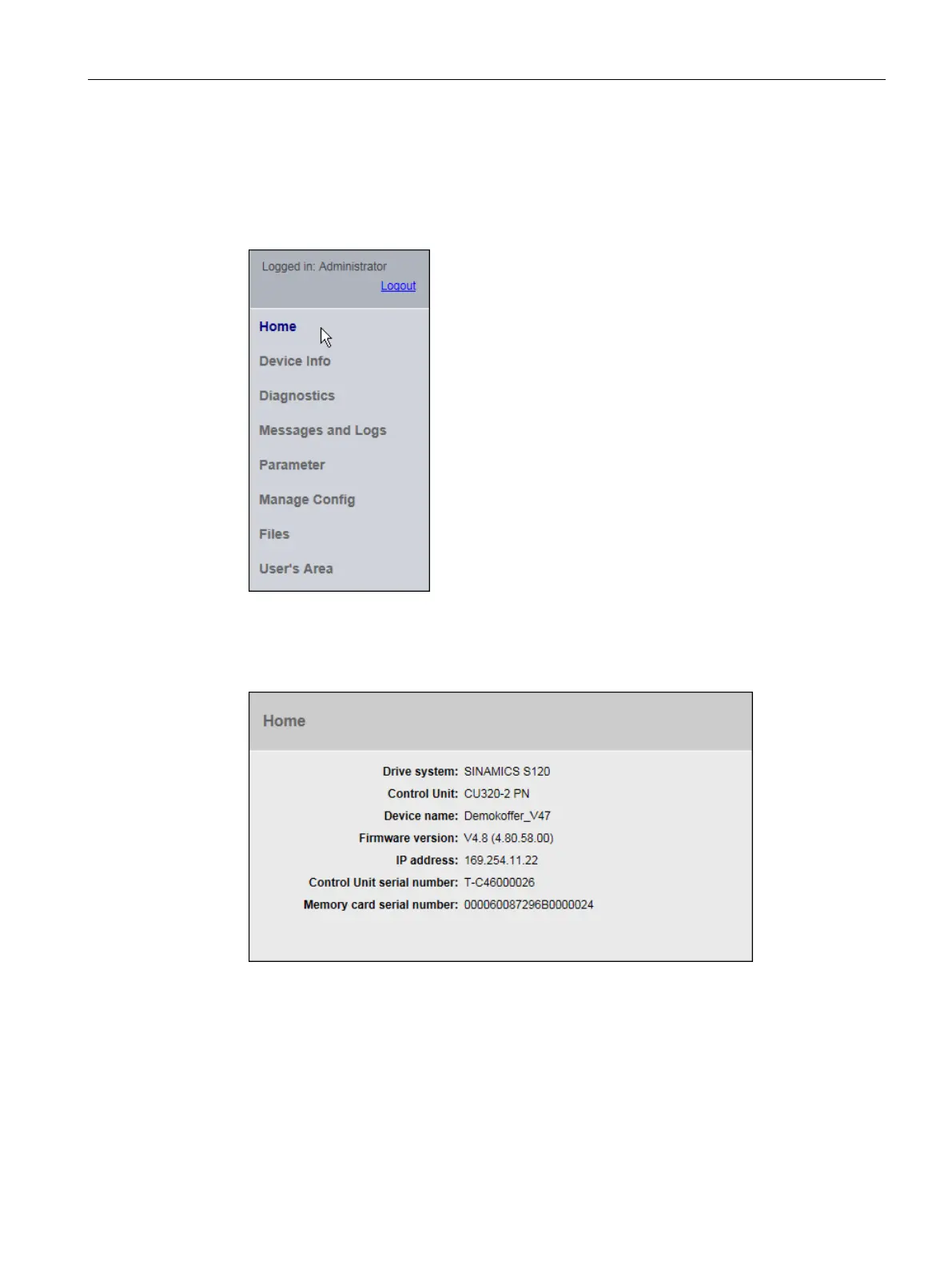

Areas of the Web server display
The display of the Web server is divided into two main areas:
● Navigation
You can select the various display areas directly by clicking in the navigation.
● Display area
Different information is displayed in the various areas. Example of "Parameter". The
display is divided further by tabs in the various display areas. The name of the display
area is shown at the top.
If you no longer require the web server or want to block the detailed display areas, you
should log out for security reasons.
Click "Logout" at the top left in the navigation.
