Function modules
8.9 Master/slave function for Active Infeed
Drive functions
Function Manual, 11/2017, 6SL3097-4AB00-0BP5
551

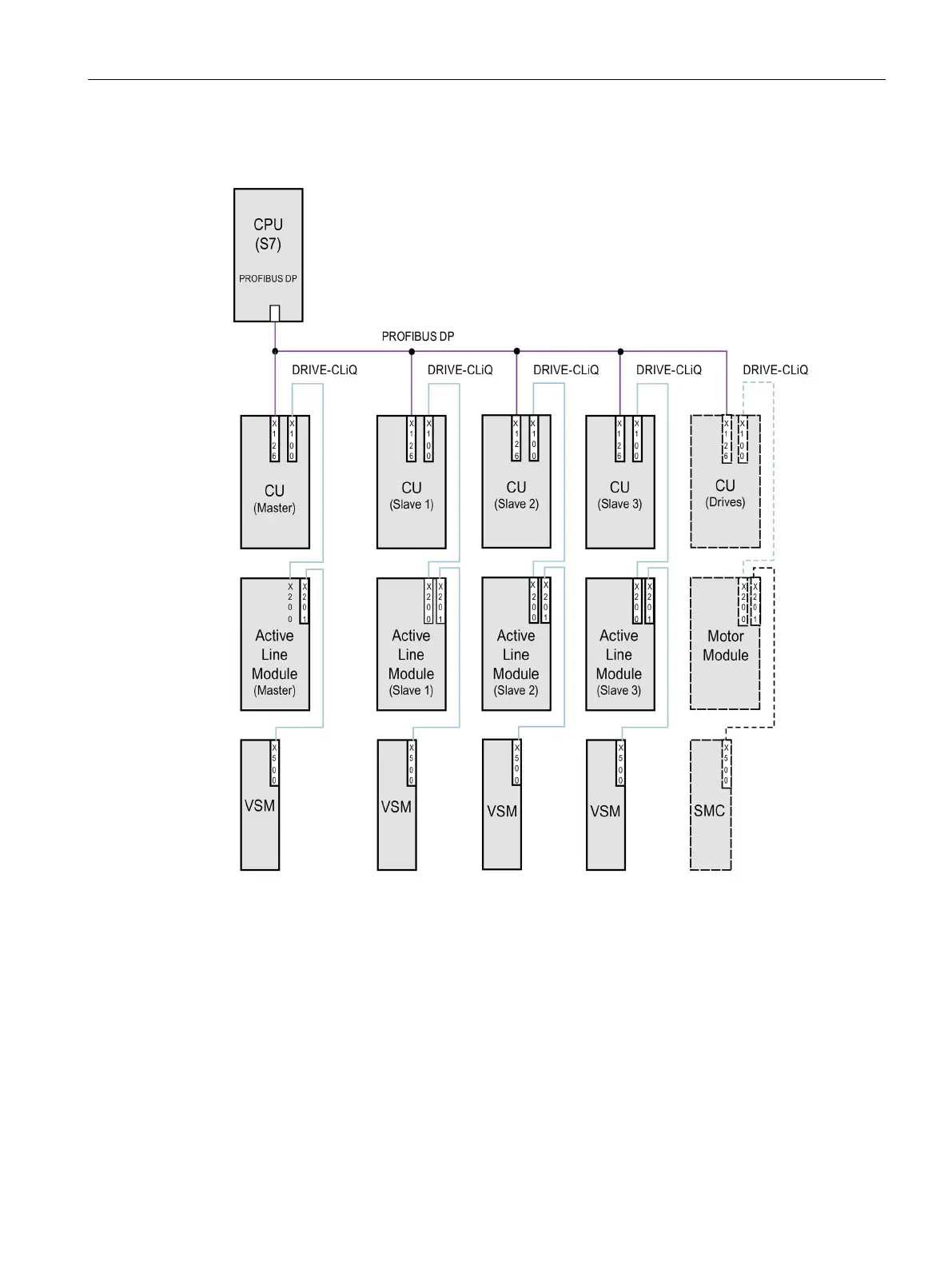

Figure 8-23 Topology structure and communications network based on PROFIBUS for master/slave
operation with redundant infeeds (four infeed trains)
Master/slave operation can be implemented for a maximum of four Active Line Modules.
