Communication
11.1 Communication according to PROFIdrive
Drive functions
Function Manual, 11/2017, 6SL3097-4AB00-0BP5
745
Example: Flying measurement
Assumptions for the example:
● Measuring probe with rising edge (function 1)
● Position control with encoder 1

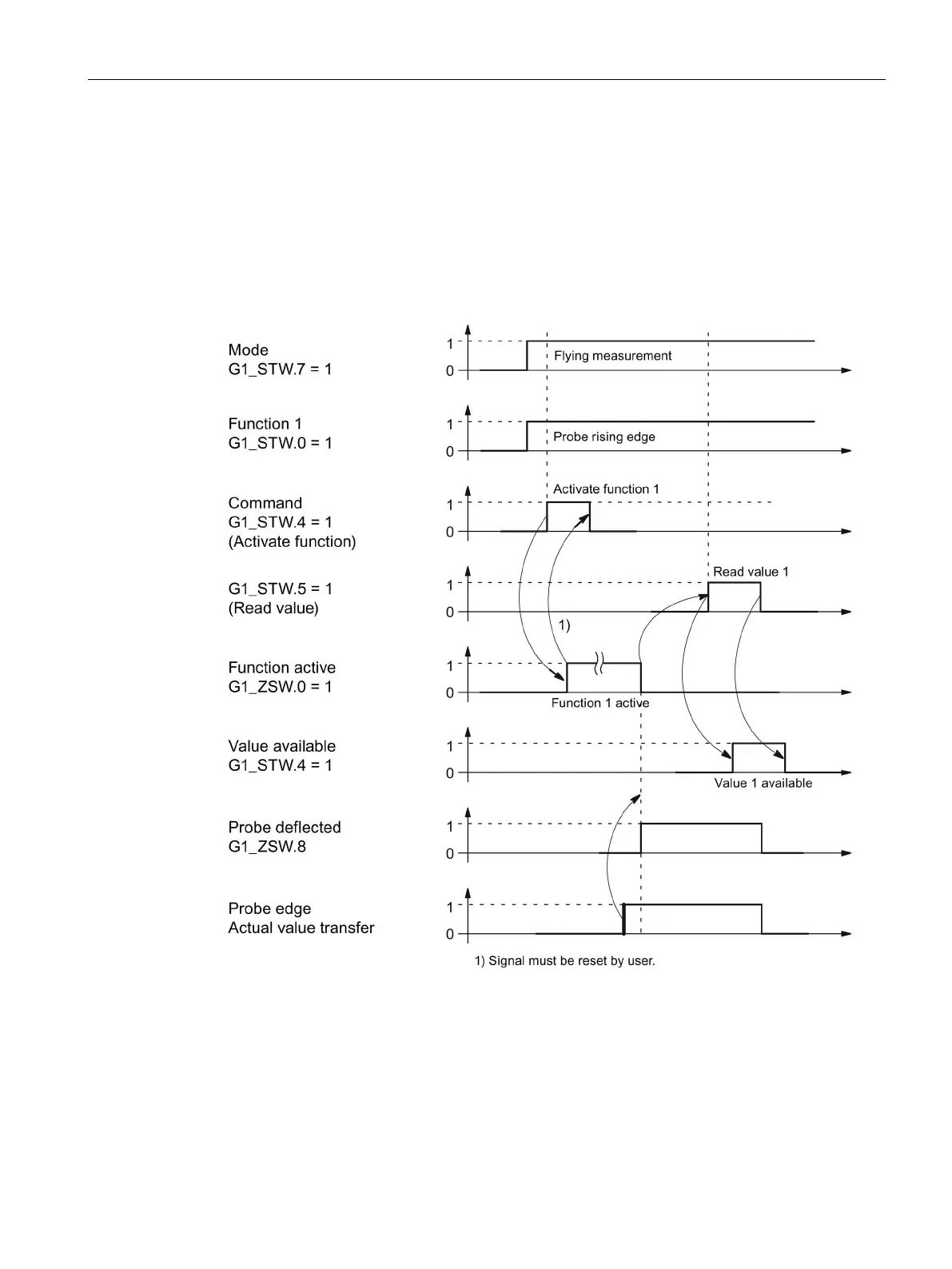

Figure 11-5 Sequence chart for "Flying measurement"
