11.2 Communication via PROFIBUS DP
Drive functions
800 Function Manual, 11/2017, 6SL3097-4AB00-0BP5
9. Click the "Slave-to-slave communication overview" tab.
The configured slave-to-slave communication relationships are shown here which
correspond to the current status of the configuration in HW Config.

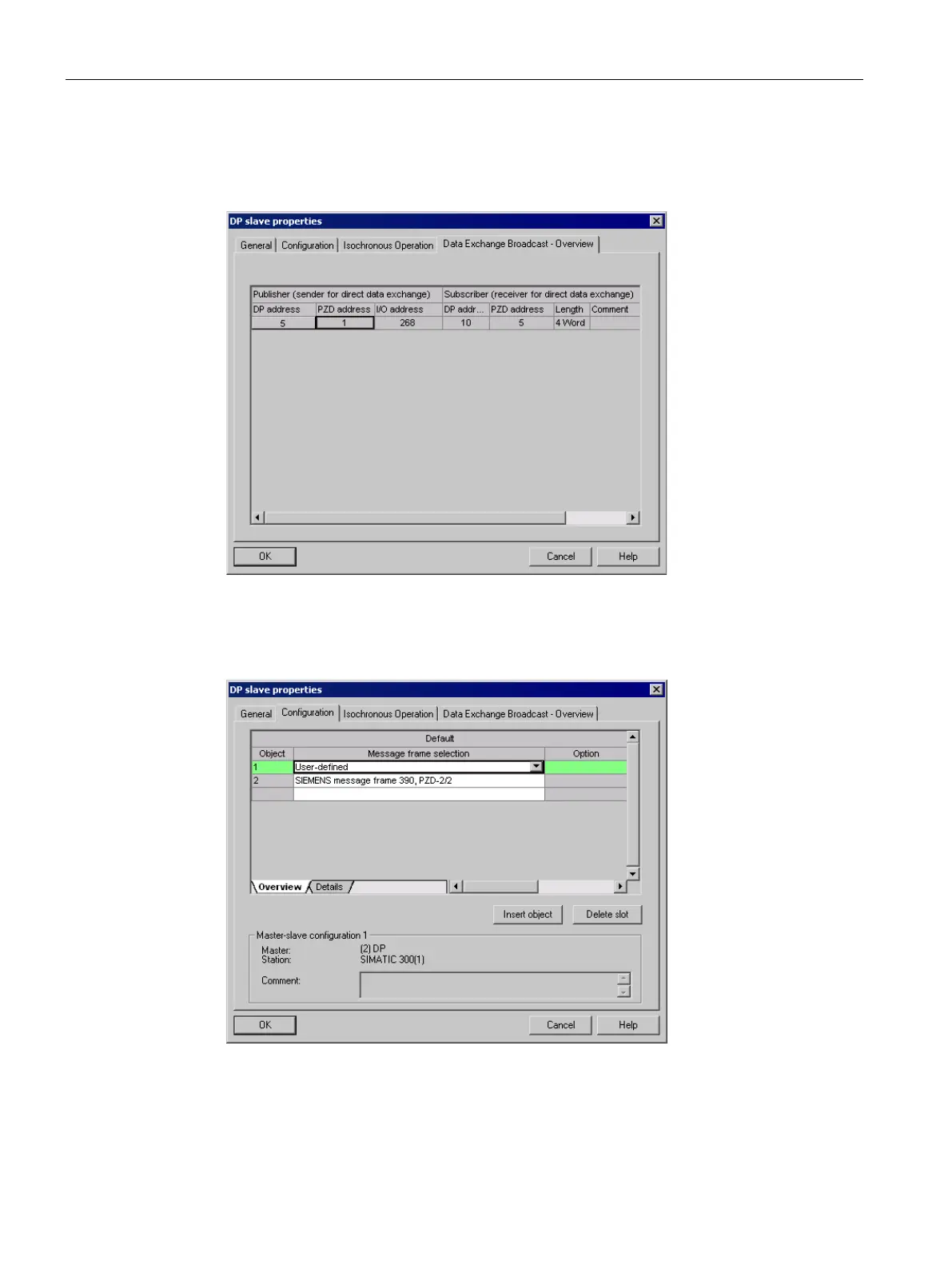

Figure 11-25 Slave-to-slave communication - overview
After the slave-to-slave communication link has been created, instead of showing
"Standard telegram 2" for the drive object, "User-defined" appears in the configuration
overview under telegram selection.
Figure 11-26 Telegram assignment for slave-to-slave communication
