Siemens SINUMERIK 828D Programming Manual

Special Motion Commands
4.3 Spline grouping (SPLINEPATH)
Job planning
Programming Manual, 07/2010, 6FC5398-2BP40-0BA0
247

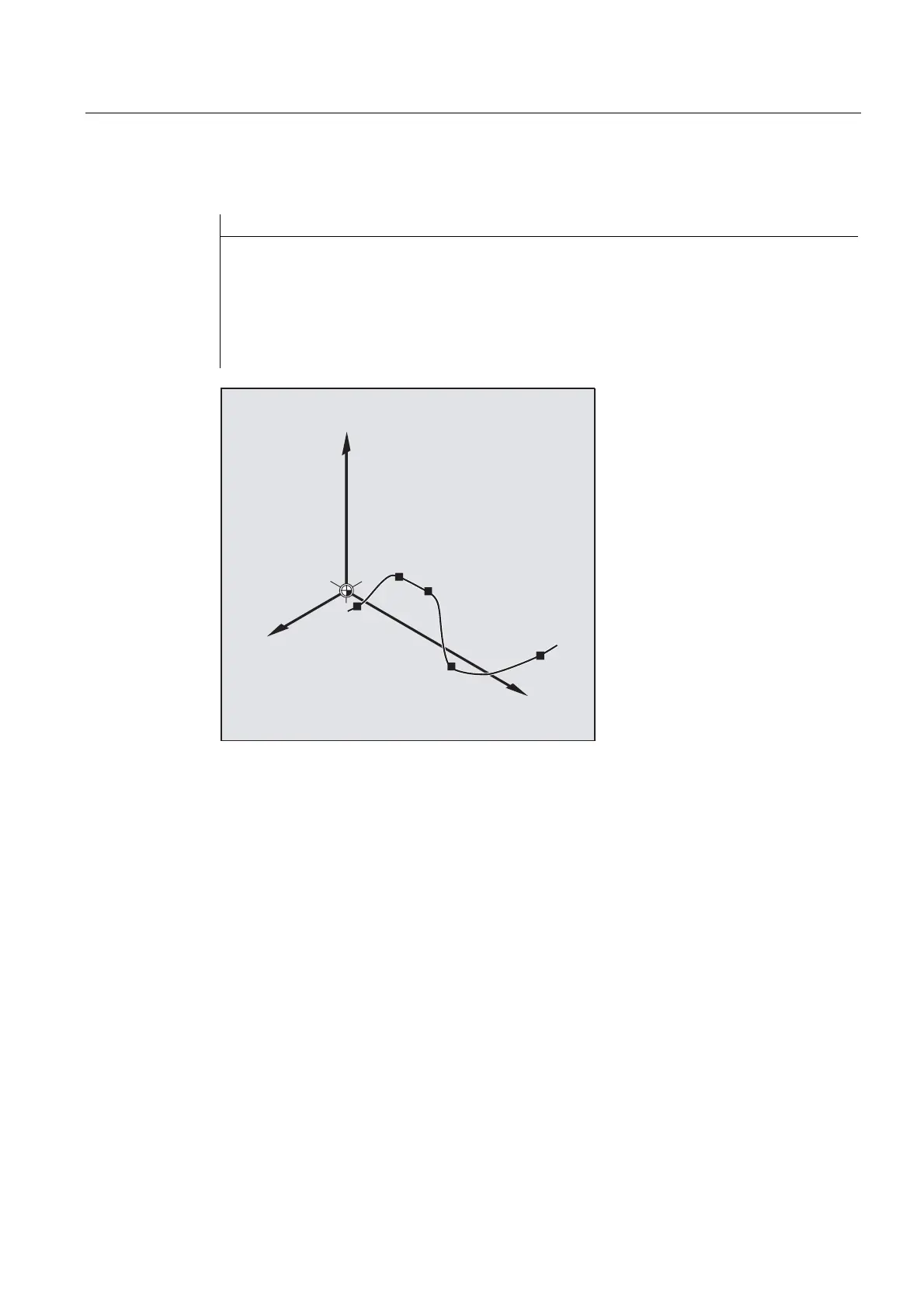

Example: Spline group with three path axes
Program code Comments
N10 G1 X10 Y20 Z30 A40 B50 F350
N11 SPLINEPATH(1,X,Y,Z) ; Spline group
N13 CSPLINE BAUTO EAUTO X20 Y30 Z40 A50 B60 ; C spline
N14 X30 Y40 Z50 A60 B70 ; Intermediate points
…
N100 G1 X… Y… ; Deselect spline interpolation
;
<
63/,1(3$7+;<=
=

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
