9.2 Curve tables (CTAB)

Job planning

Programming Manual, 07/2010, 6FC5398-2BP40-0BA0

501

9.2 Curve tables (CTAB)

Function

Curve tables can be used to program position and velocity relationships between two axes

(leading and following axis). Curve tables are defined in the part program.

Application

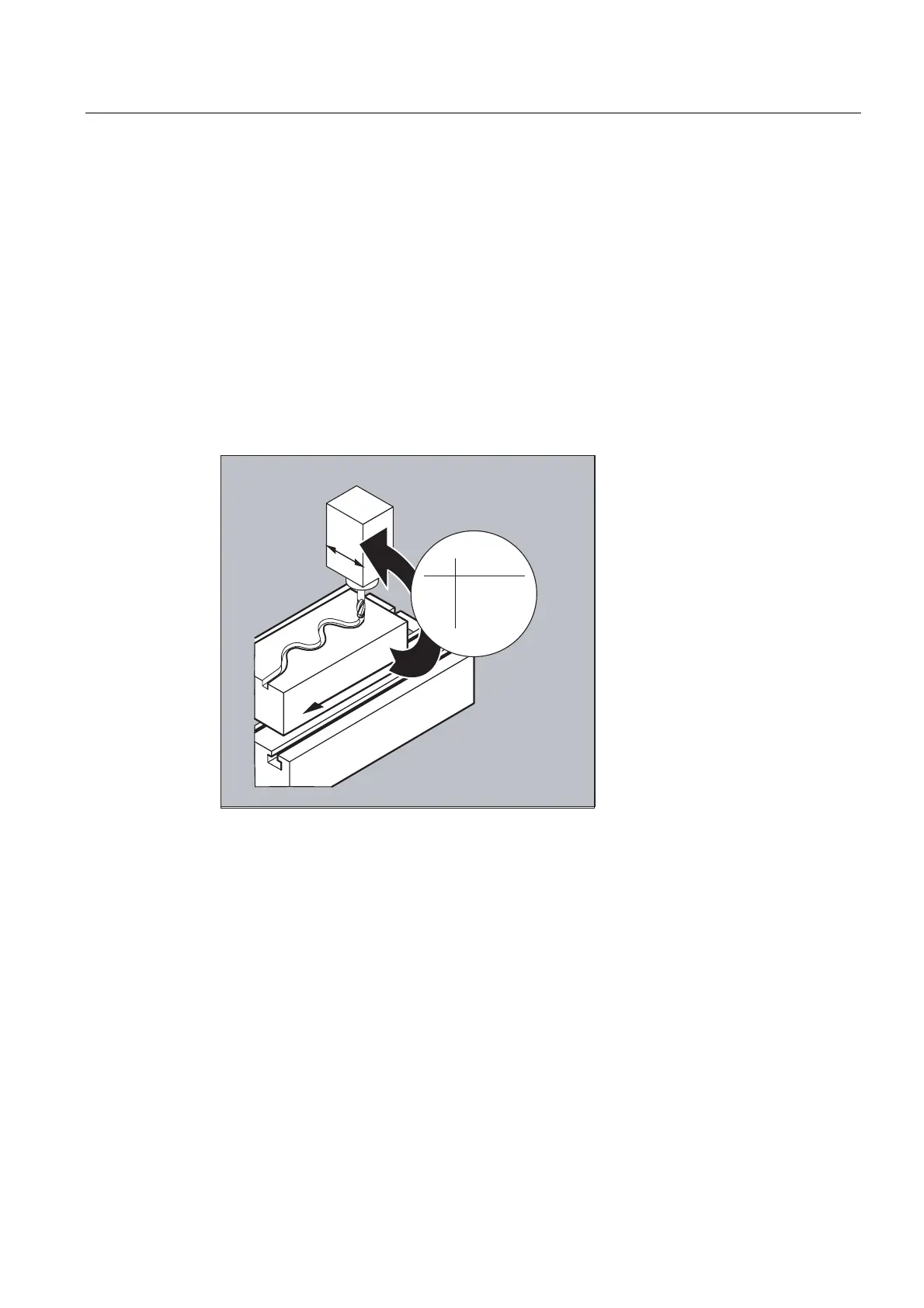

Curve tables replace mechanical cams. The curve table forms the basis for the axial master

value coupling by creating the functional relationship between the leading and the following

value: With appropriate programming, the control calculates a polynomial that corresponds

to the cam from the relative positions of the leading and following axes.



D



D



[

D



D



D



[





[\

;
