Siemens SINUMERIK 828D Programming Manual

Tool offsets
7.5 Activate 3D tool offsets (CUT3DC..., CUT3DF...)
Job planning
Programming Manual, 07/2010, 6FC5398-2BP40-0BA0
411
7.5.2 3D tool offset: Peripheral milling, face milling

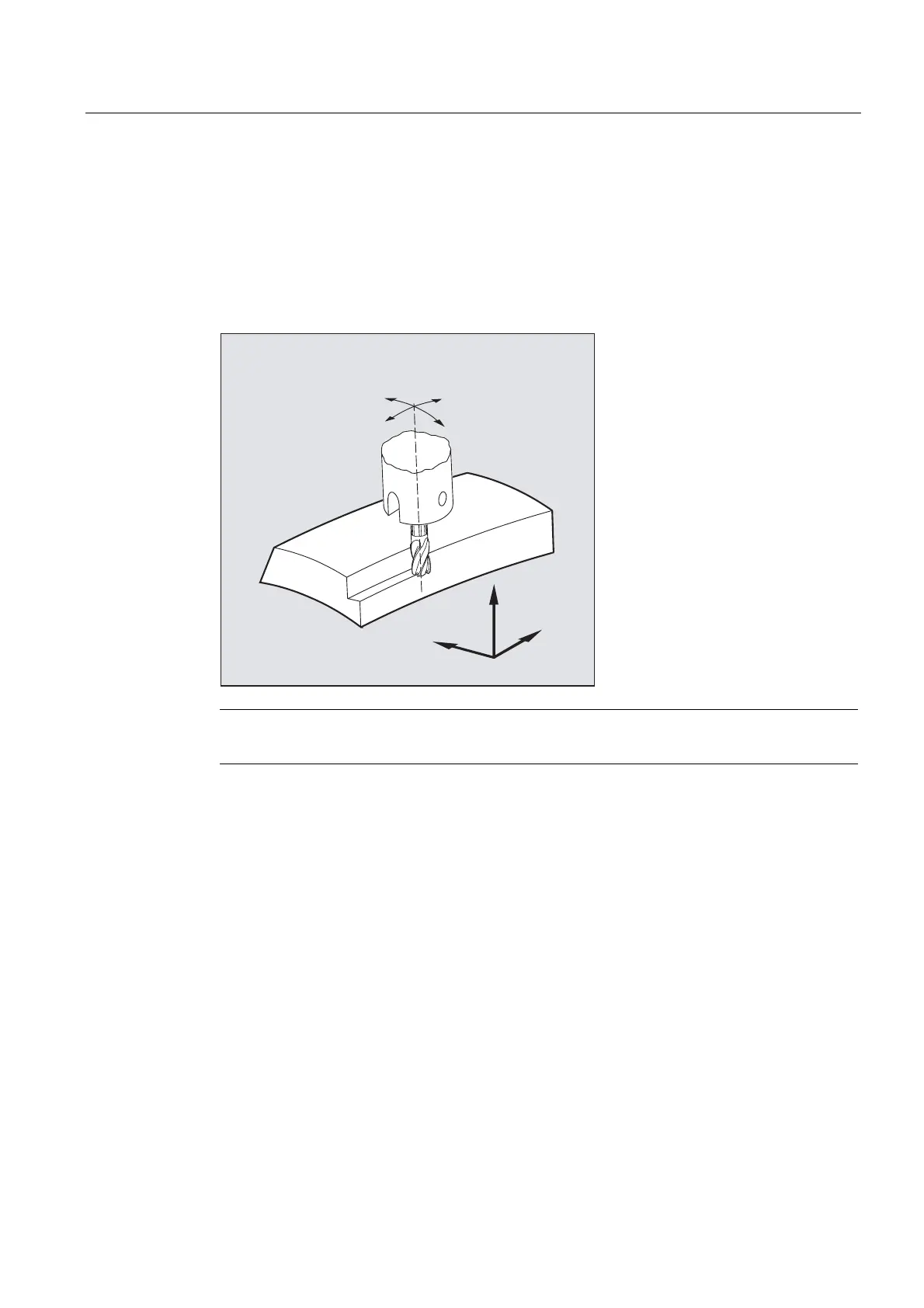

Circumferential milling
The type of milling used here is implemented by defining a path (guide line) and the
corresponding orientation. In this type of machining, the shape of the tool on the path is not
relevant. Especially the radius at the tool intervention point is decisive.
;
<
=
%
$
3HULSKHUDOPLOOLQJ
Note
The function 3D TRC is restricted to cylindrical tools.

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
