Punching and nibbling
12.2 Automatic path segmentation
Job planning
654 Programming Manual, 07/2010, 6FC5398-2BP40-0BA0

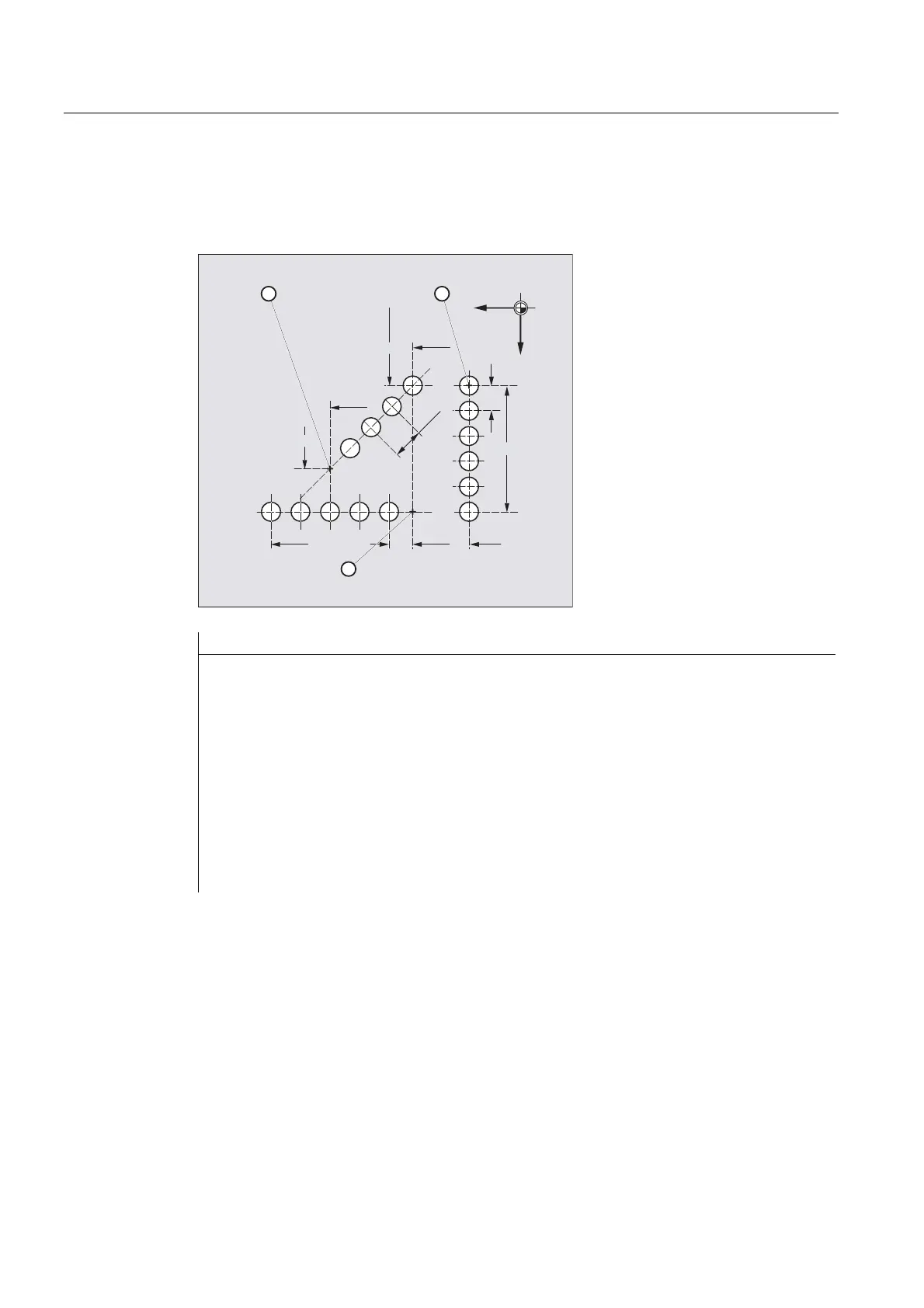

Example 2
Automatic path segmentation should be made for the individual series of holes. The
maximum path segment length (SPP value) is specified for the segmentation.


 





<
;




Program code Comments
N100 G90 X75 Y75 F60 PON ; Position to starting point 1;
punch an individual hole
N110 G91 Y125 SPP=25 ; Maximum path segment length for automatic path
segmentation: 25 mm (3.81 lb)
N120 G90 X150 SPOF ; Punching off; positioning to starting point 2
N130 X375 SPP=45 PON ; Punching on; maximum path segment length
for automatic path segmentation: 45 mm (3.81 lb)
N140 X275 Y160 SPOF ; Punching off; positioning to starting point 3
N150 X150 Y75 SPP=40 PON ; Punching on, instead of the programmed path segment
length of 40 mm, the ;calculated path segment
length of 37.79 mm is used.
N160 G00 Y300 SPOF ; Punching off; positioning
