User stock removal programs

15.6 Calculate circle data (CALCDAT)

Job planning

706 Programming Manual, 07/2010, 6FC5398-2BP40-0BA0

Example

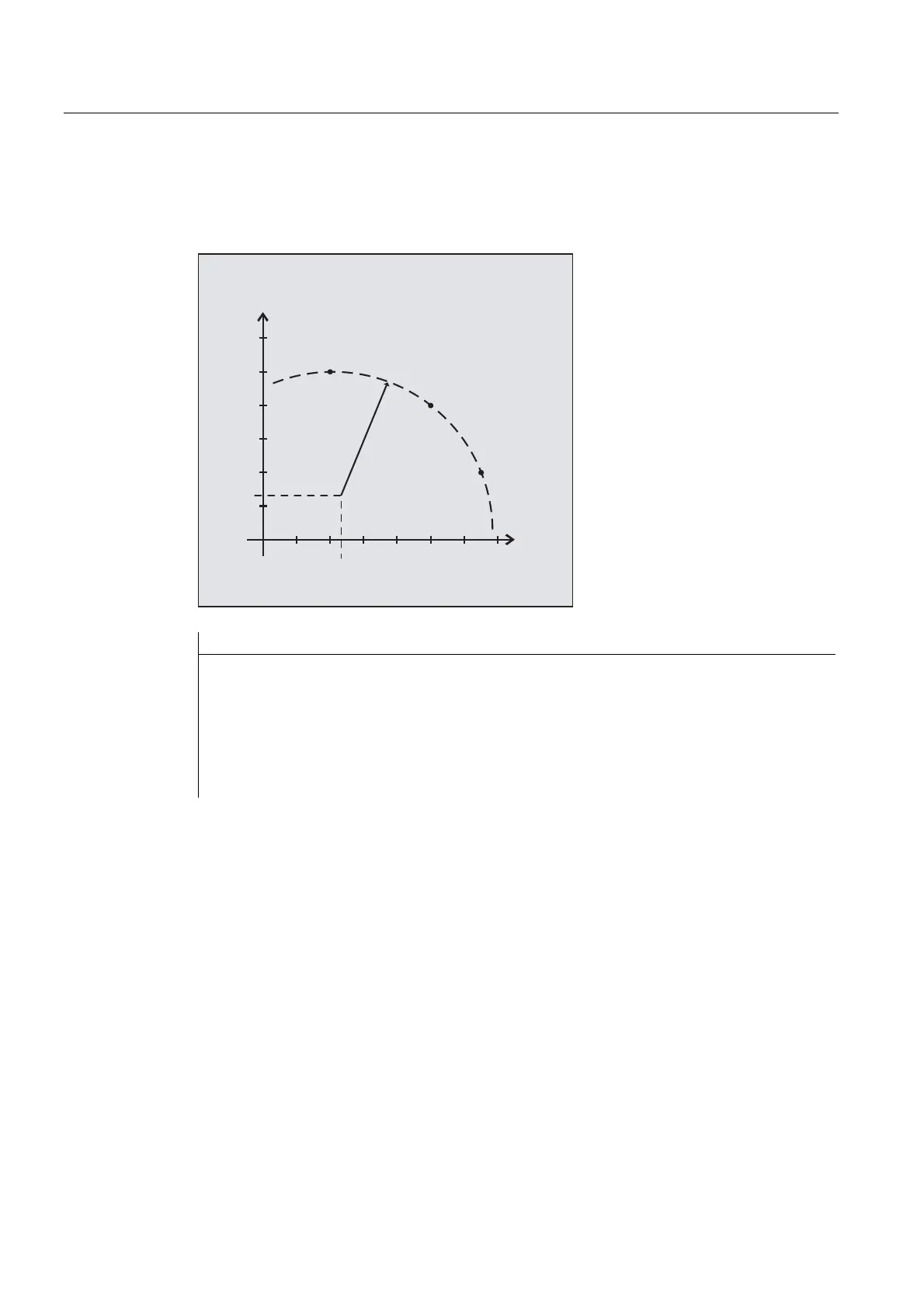

Using three points it should be determined as to whether they are located on a circle

segment.

(5*>@

;











(5*>@

(5*>@

    













Program code Comments

N10 DEF REAL PT[3,2]=(20,50,50,40,65,20) ; Variable to specify the points

along a circle

N20 DEF REAL RES[3] ; Variable for result

N30 DEF BOOL STATUS ; Variable for status

N40 STATUS=CALCDAT(PKT,3,ERG) ; Call the determined circle

data.

N50 IF STATUS == FALSE GOTOF ERROR ; Jump to error
