[7sj6x_wiedereinschaltsperre, 1, en_US]

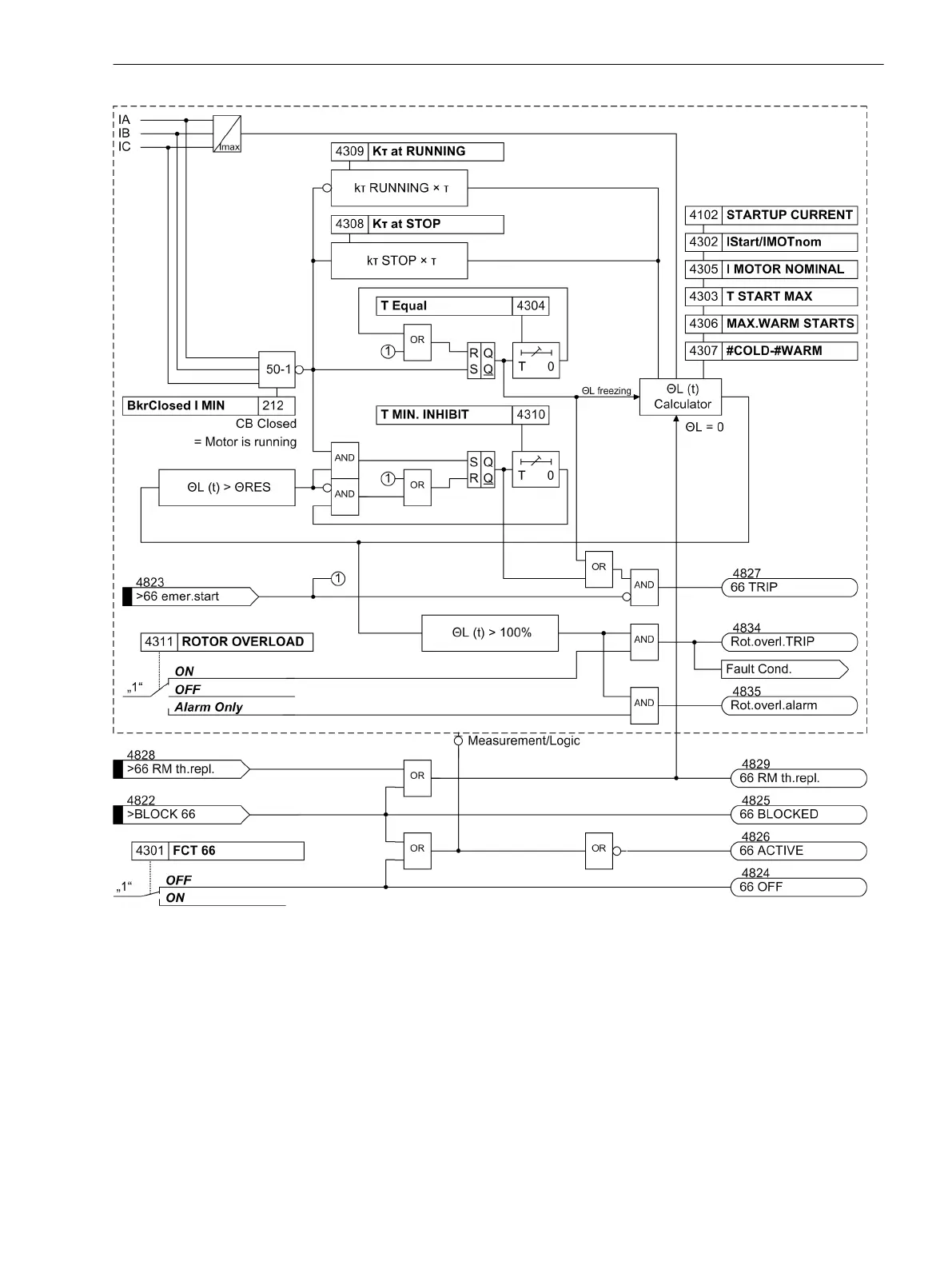

Figure 2-35
Logic diagram for the restart inhibit
Setting Notes
General
Restart inhibit is only effective and accessible if address 143 66 #of Starts is set to Enabled. If not
required, this function is set to Disabled. The function can be turned ON or OFF under address 4301 FCT
66.
2.6.2.2
Functions
2.6 Motor Protection
SIPROTEC 4, 7SJ61, Manual 103
C53000-G1140-C210-6, Edition 05.2016
