[logik-einschaltstabilisierung-sj61-200902-kn, 1, en_US]

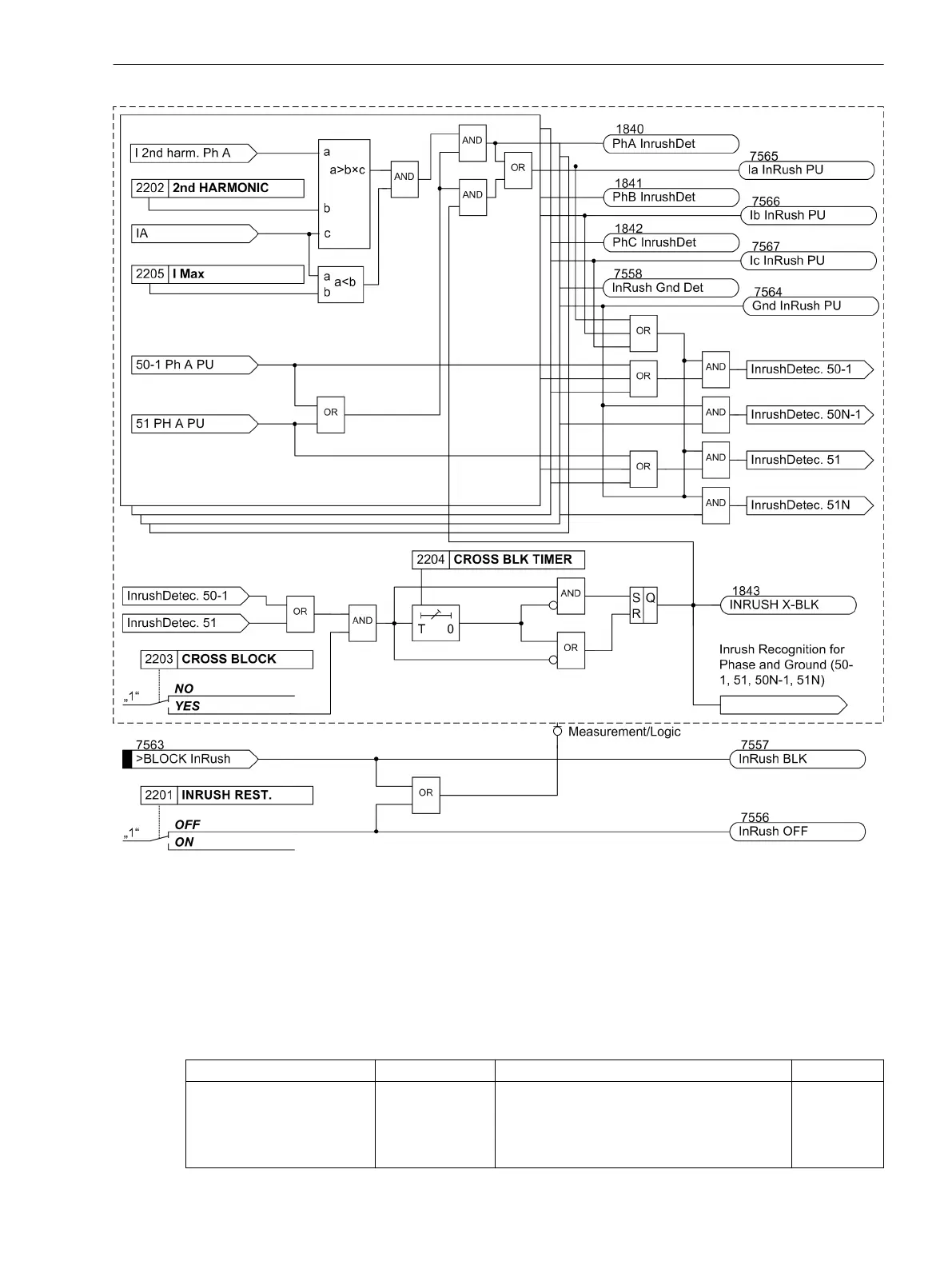

Figure 2-13
Logic diagram for inrush restraint
Pickup Logic and Tripping Logic
The pickup annunciations of the individual phases (or ground) and the individual element are combined with
each other in such a way that the phase information and the element that has picked up are issued.
Table 2-2
Pickup Indications of Overcurrent Protection
Internal indication Figure Output indication FNo.
50-3 A PU
50-2 A PU
50-1 A PU
51 A PU
Figure 2-5
Figure 2-7
Figure 2-11
50/51 Ph A PU
1762
2.2.7
Functions
2.2 Overcurrent Protection 50, 51, 50N, 51N
SIPROTEC 4, 7SJ61, Manual 57
C53000-G1140-C210-6, Edition 05.2016
