[einstell-bedienberecht-webmon-040721-ro, 1, en_US]

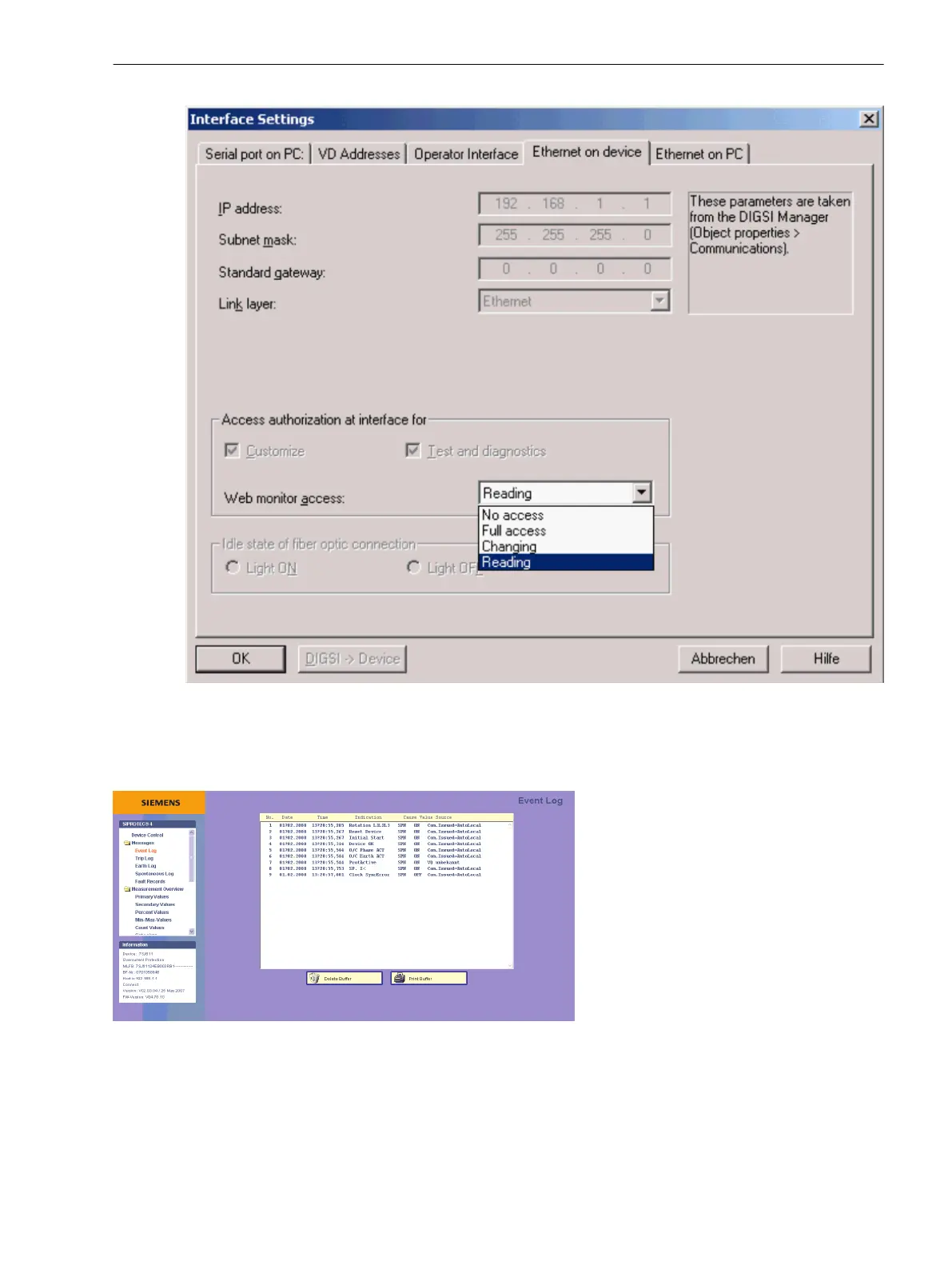

Figure 2-81
Setting the Web Monitor authorization for acces via Ethernet interface
As an example for the basic functionality, the figure below shows messages of the event log of the device in
the form of a list. These messages are displayed with their short text stored in the device.
[sj61-web-betrmeld, 1, en_US]
Figure 2-82 Operational Messages (Buffer: Event Log)
Operating Modes
The Web Monitor works in the following operating modes between the operator PC and the SIPROTEC 4
device:
2.17.9.3
Functions
2.17 Auxiliary Functions
SIPROTEC 4, 7SJ61, Manual 215
C53000-G1140-C210-6, Edition 05.2016
