Connection Examples for Current Transformers, all Devices
[stromwdl-normalschalt-20070413, 1, en_US]

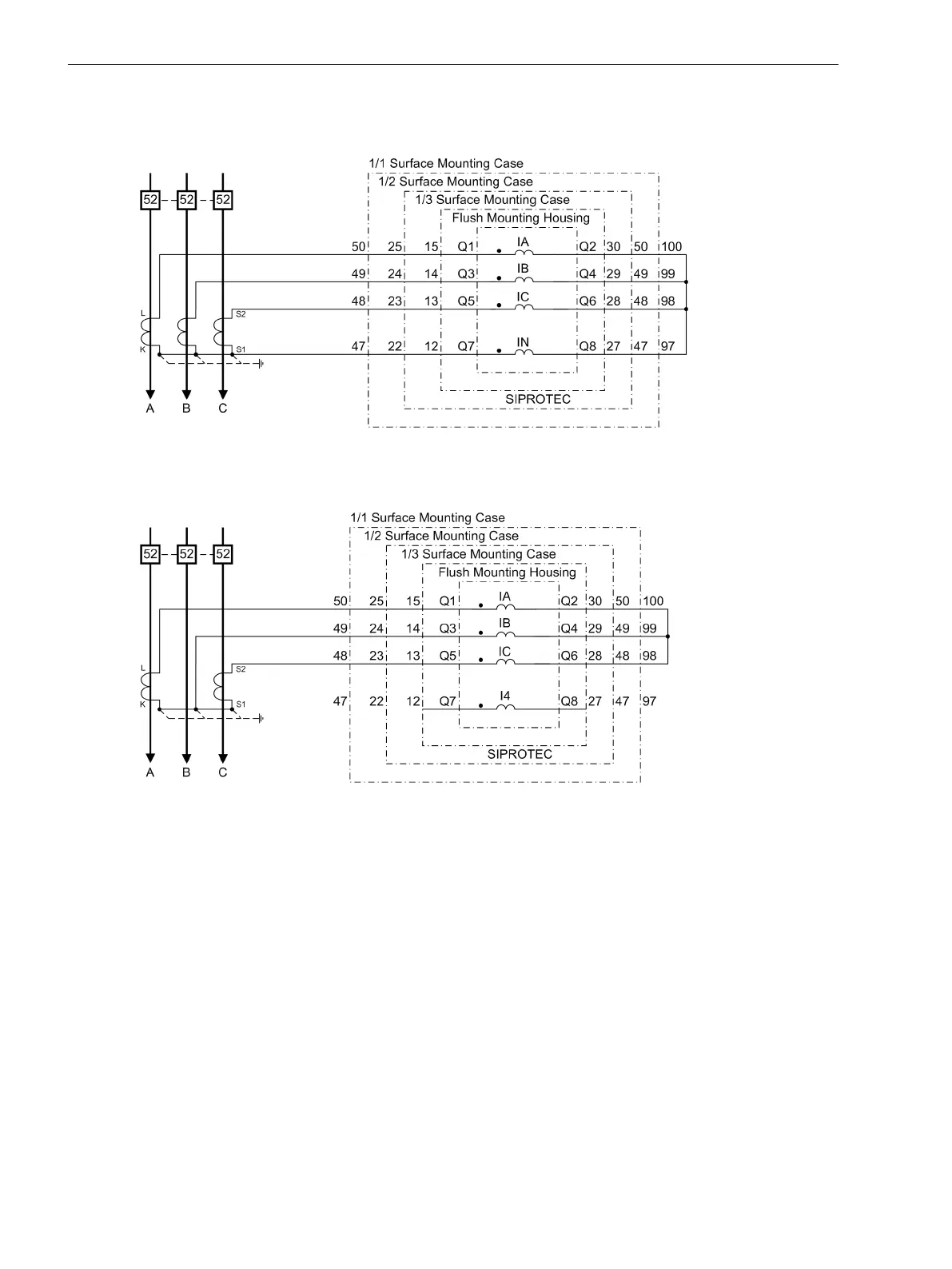

Figure C-1 Current transformer connections to three current transformers and neutral point current
(ground current), standard connection, suitable for all electrical power systems
[zwei-stromwandler-20070418, 1, en_US]
Figure C-2 Current connections to two current transformers - only for ungrounded or compensated
networks
C.1
Connection Examples
C.1 Connection Examples for Current Transformers, all Devices
362 SIPROTEC 4, 7SJ61, Manual
C53000-G1140-C210-6, Edition 05.2016
