[7sj6x-hochstromst-i-fuer-ph-20061212, 1, en_US]

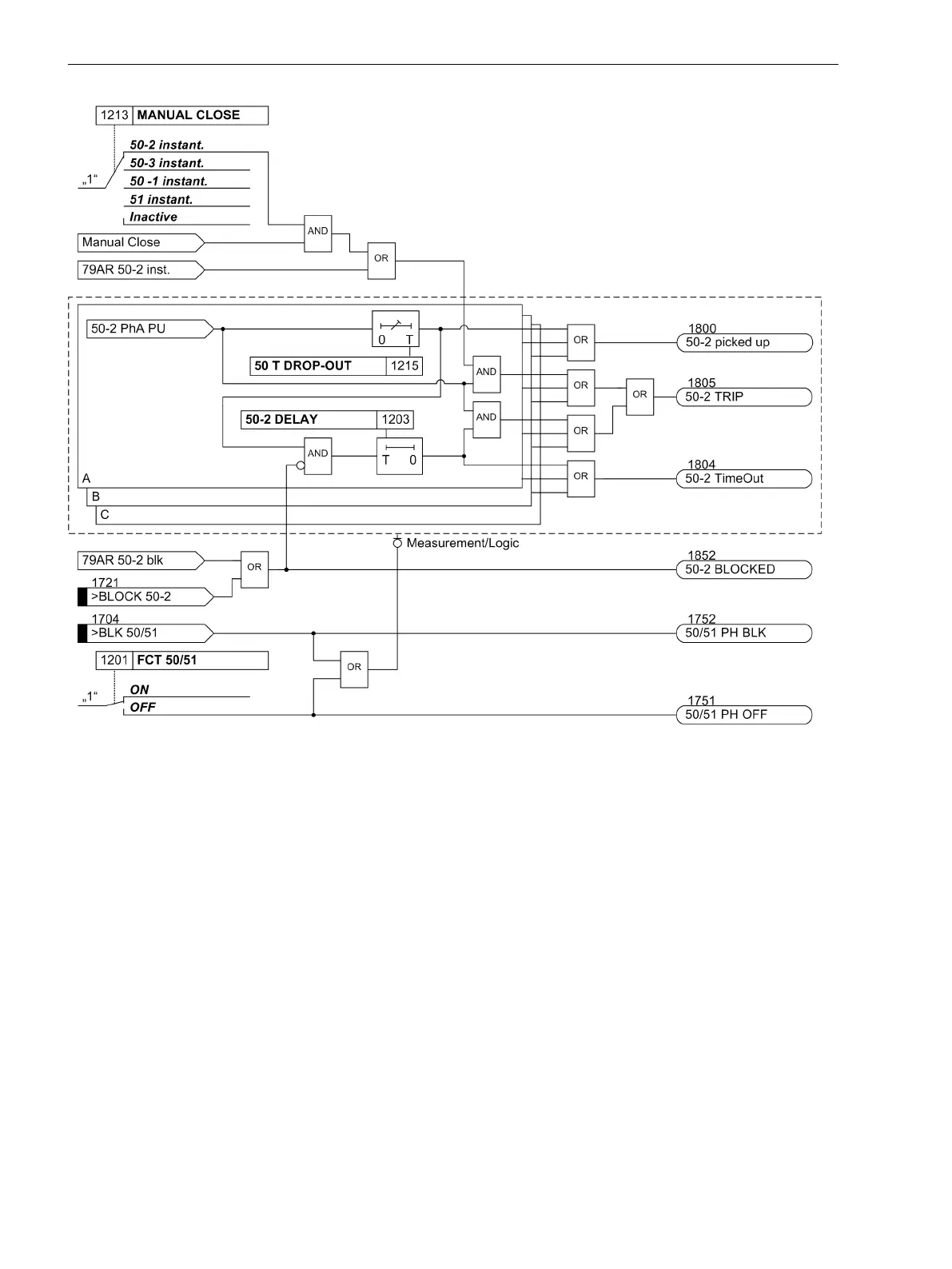

Figure 2-5
Logic diagram for 50-2 high-set element for phases
If parameter MANUAL CLOSE is set to 50-2 instant. or 50-3 instant. and manual close detection is
used, a pickup causes instantaneous tripping, even if the element is blocked via binary input.
The same applies to 79 AR 50-2 inst. or 79 AR 50-3 inst.
Functions
2.2 Overcurrent Protection 50, 51, 50N, 51N
48 SIPROTEC 4, 7SJ61, Manual
C53000-G1140-C210-6, Edition 05.2016
