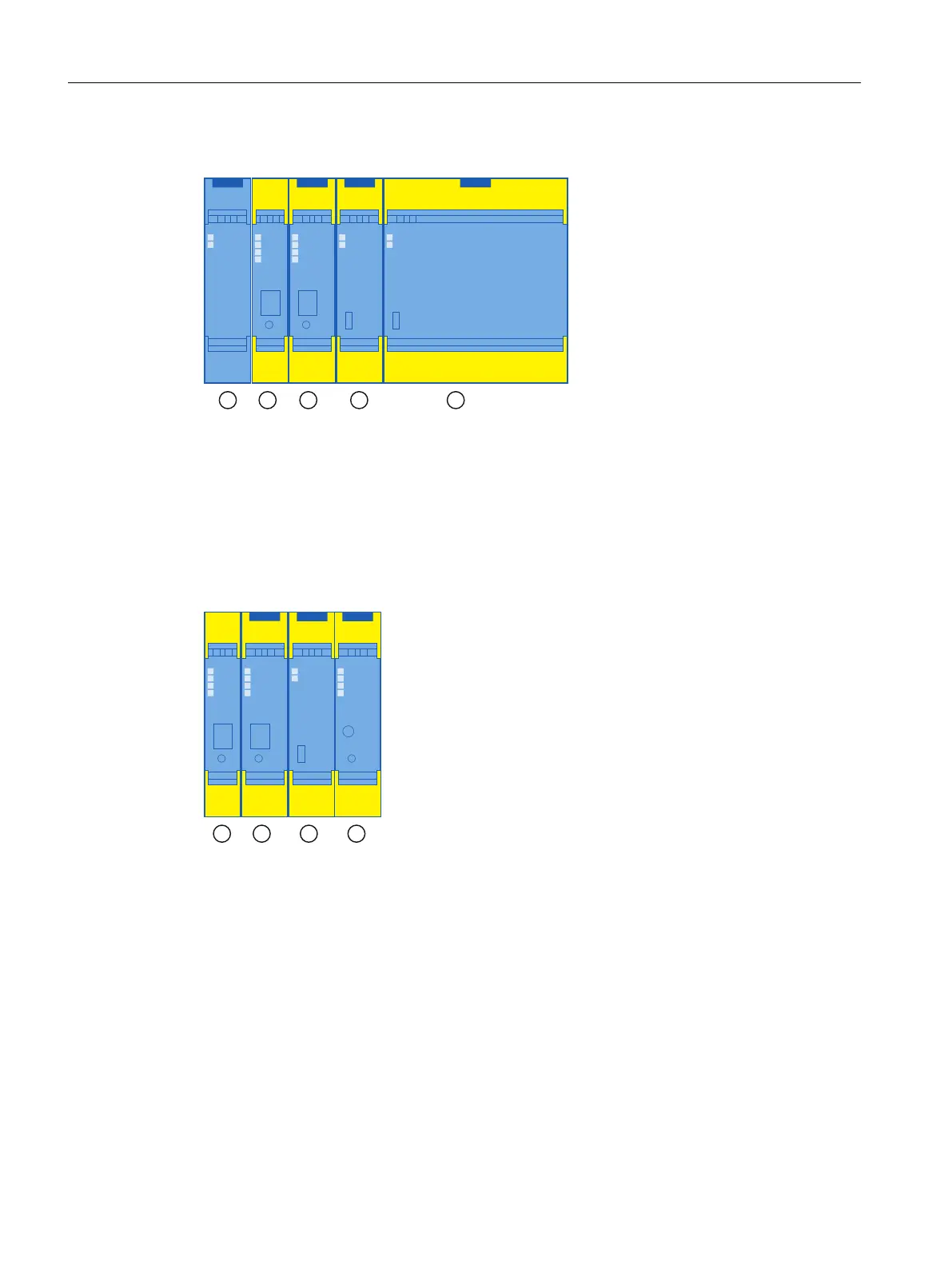

Typical 3SK1 Advanced system con󹪝guration

① 3SK1230 power supply
② 3SK1220 input expansion
③ 3SK1Advanced basic unit
④ 3SK1211 or 3RQ1 output expansion
⑤ 3SK1213 output expansion
Example 1 of a 3SK1 Advanced system con󹪝guration with 3RM1 Failsafe motor starter

① 3SK1220 input expansion
② 3SK1Advanced basic unit
③ 3SK1211 or 3RQ1 output expansion
④ Output expansion for 3RM1Failsafe motor starter
