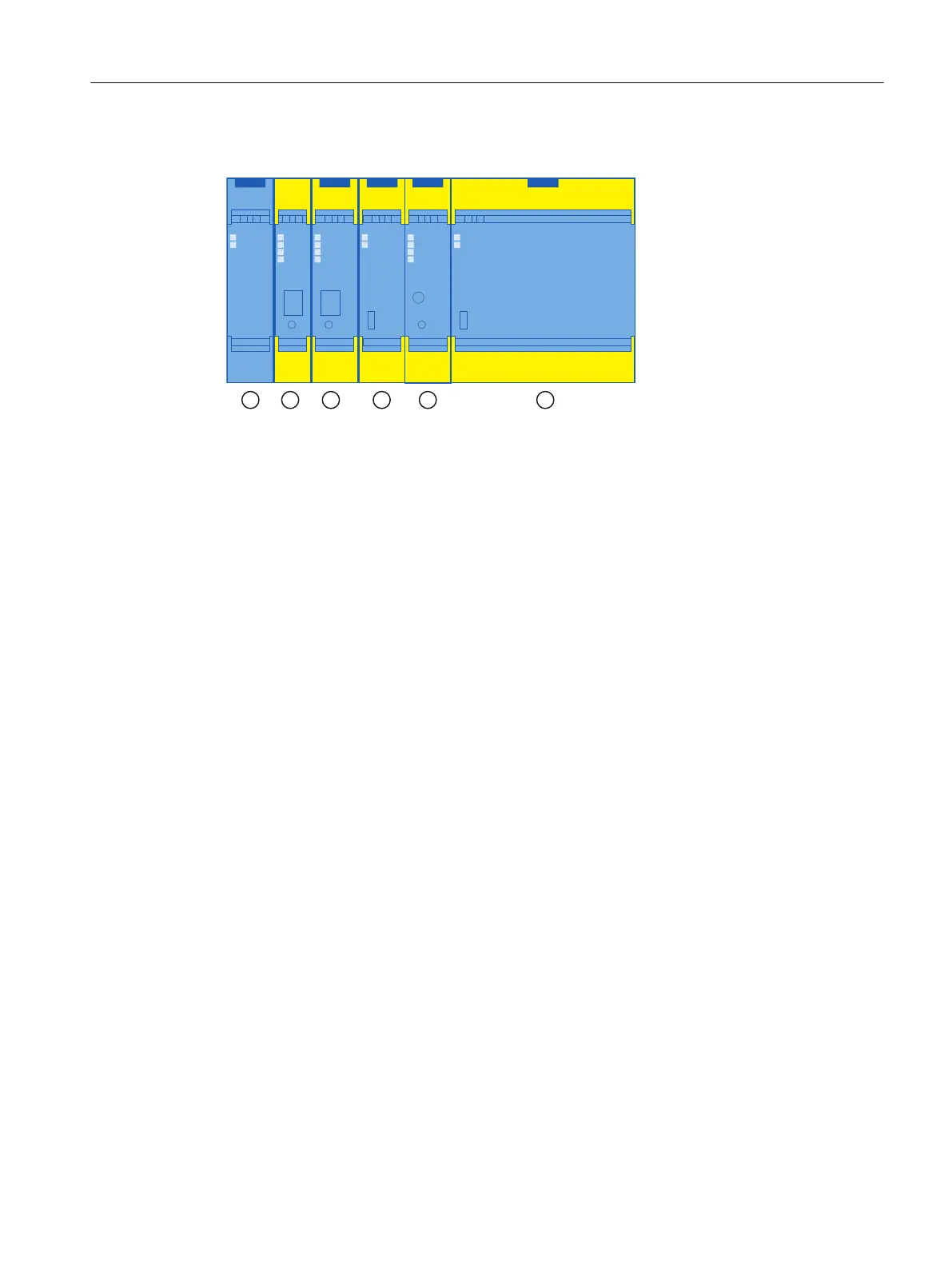

Example 2 of a 3SK1 Advanced system conguration with 3RM1 Failsafe motor starter
① 3SK1230 power supply
② 3SK1220 input expansion
③ 3SK1Advanced basic unit
④ 3SK1211 or 3RQ1 output expansion
⑤ Output expansion for 3RM1Failsafe motor starter
⑥ 3SK1213 output expansion
Description
3.5 3SK1 system
SIRIUS 3SK1 Safety Relays and 3RQ1 Positively-Driven Coupling Relays
Equipment Manual, 05/2021, A5E02526190021A/RS-AE/005 39
