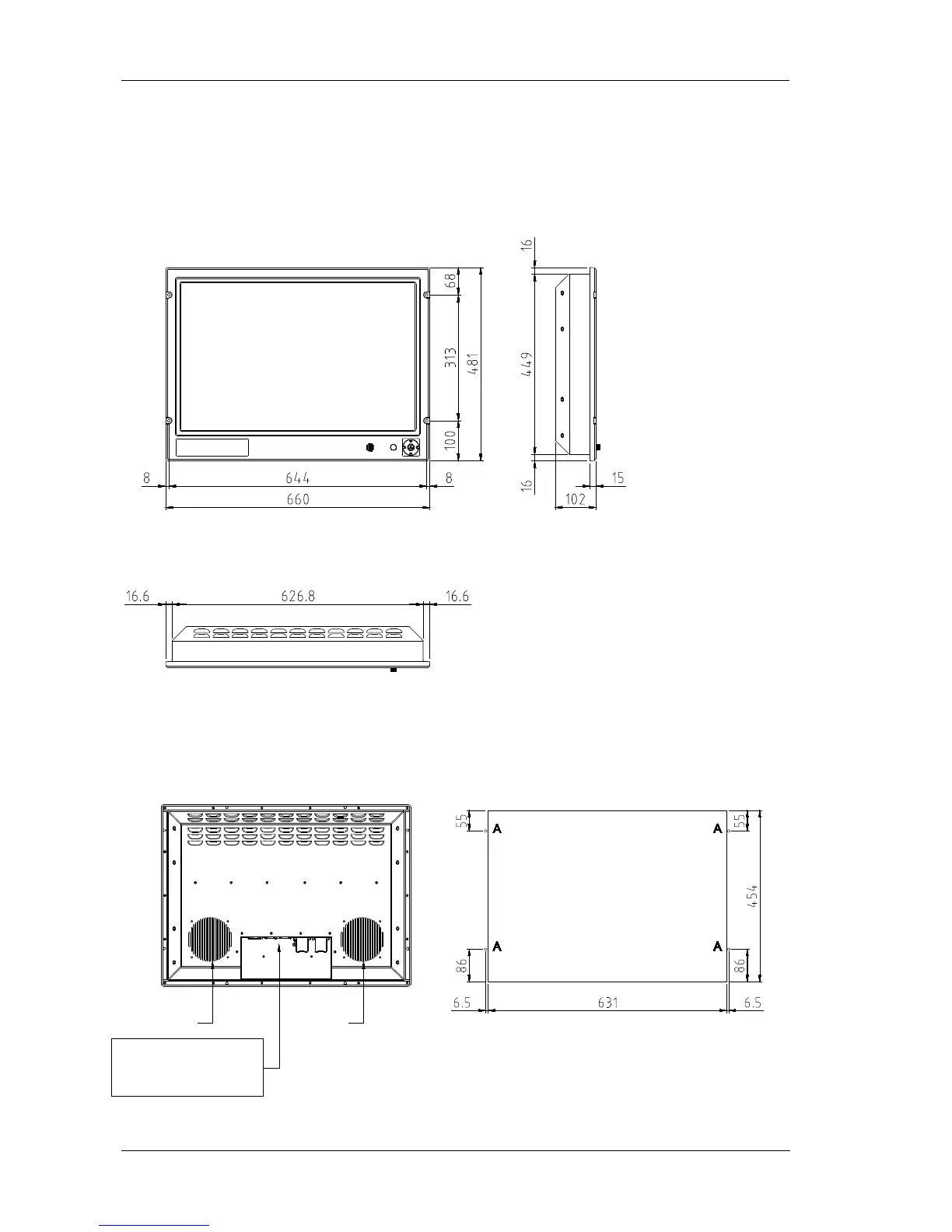

ARGUS DISPLAY – 27” Wide Screen Monitor dimensional
drawing
All dimensions are in mm. Weight 16 Kg IP30
FRONT VIEW
SIDE VIEW
REAR VIEW
PANEL CUT-OUT
A - Drill n. 4 thru-holes metric
thread M6x1x6 minimum (thread
code x pitch x depth) for steel or
stainless steel panel.
For aluminium panel increase
depth to 12 minimum.
Or drill n. 4 thru-holes and
mounting n. 4 self-clinching nuts
M6x1.
FAN
FAN
Input signals, main
power and grounding
Screw
