Argus Radar - ANNEX B
988-10187-004 7.19

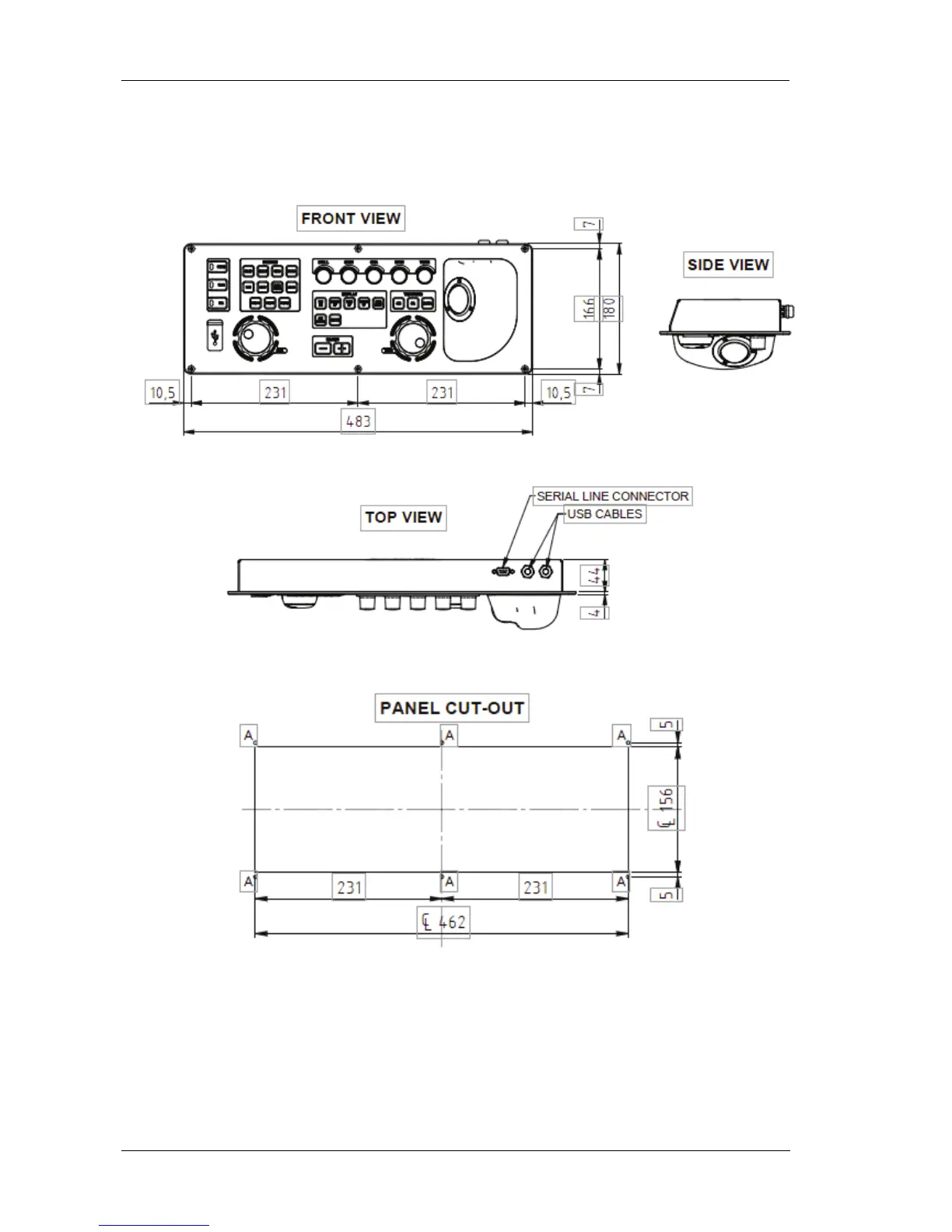

ARGUS RADAR SYSTEM – Control Panel dimensional drawing
All dimensions are in mm. Weight 2.7 Kg IP 30
Drill 6 holes (A), metric thread M4x0.7x4 minimum (thread code x pitch x depth) for
steel or stainless steel panel. For aluminium panel depth should be 8 mm minimum.
Or drill 6 holes and mount 6 self-clinching nuts M4x0.7 in the panel.
