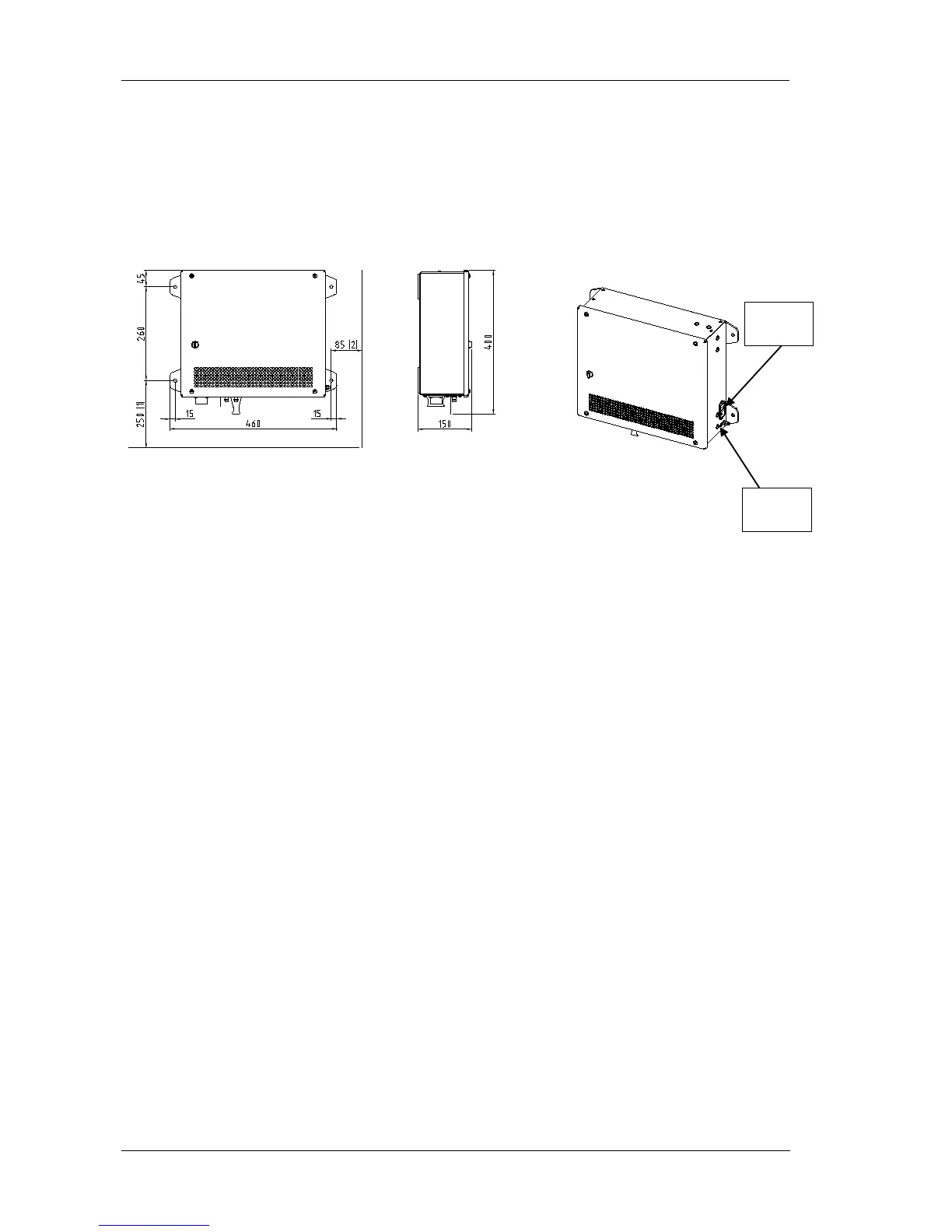

ARGUS RADAR SYSTEM – CORE UNIT outline drawing
All dimensions are in mm. Weight 9 Kg IP 20
FRONT VIEW
SIDE VIEW
Main line
input
3D VIEW
Ground
bolt
For installation drill 4 holes ∅12 or
drill 4 holes,
metric thread M8x1.25x8 minimum
(thread code x pitch x depth) for steel or stainless
steel support. For alluminium support depth should
be 16 minimum
(1) Minimum distance to the floor
(2) Minimum distance to the wall and to
other equipment
