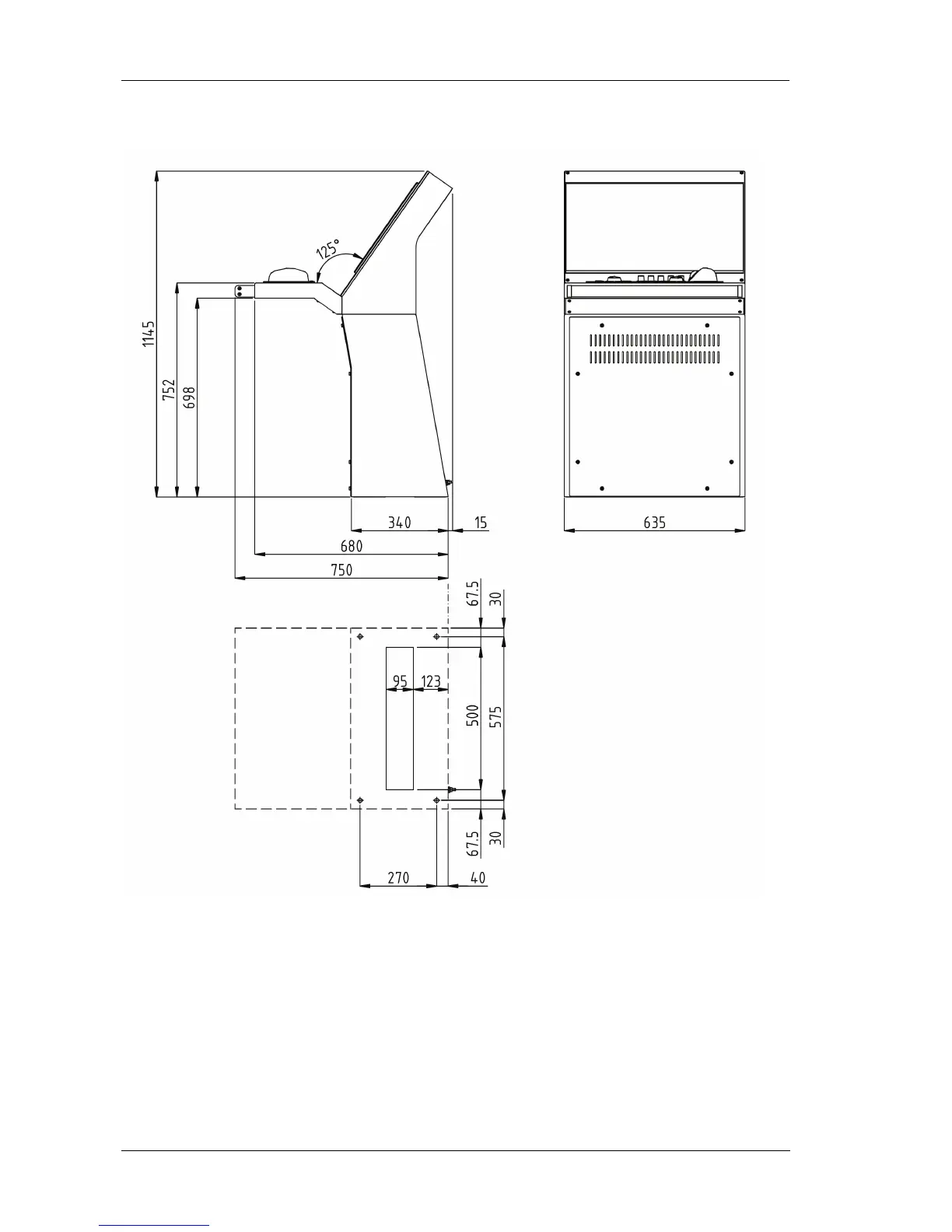

ARGUS DISPLAYS Deck Mounting Version Outline Drawing
- Grounding bolt.
- Floor cut-out for input
cables.
- Drill N. 4 metric through
holes threaded M12x1.75
per 12 mm depth minimum
for steel or stainless steel
floor. For aluminium floor,
increase depth to 24 mm
minimum, otherwise drill N.
4 through holes and
mounting N. 4 self-clinching
nuts M12x1.75 mm.
Weight 53 Kg IP 20
All dimensions are in mm






