6 Using the radar
The radar panel can be set up as a full screen view or combined with other panels.
The radar image can also be displayed as an overlay to existing 2D chart views and 3D
for Navionics. Refer to the Chart section.

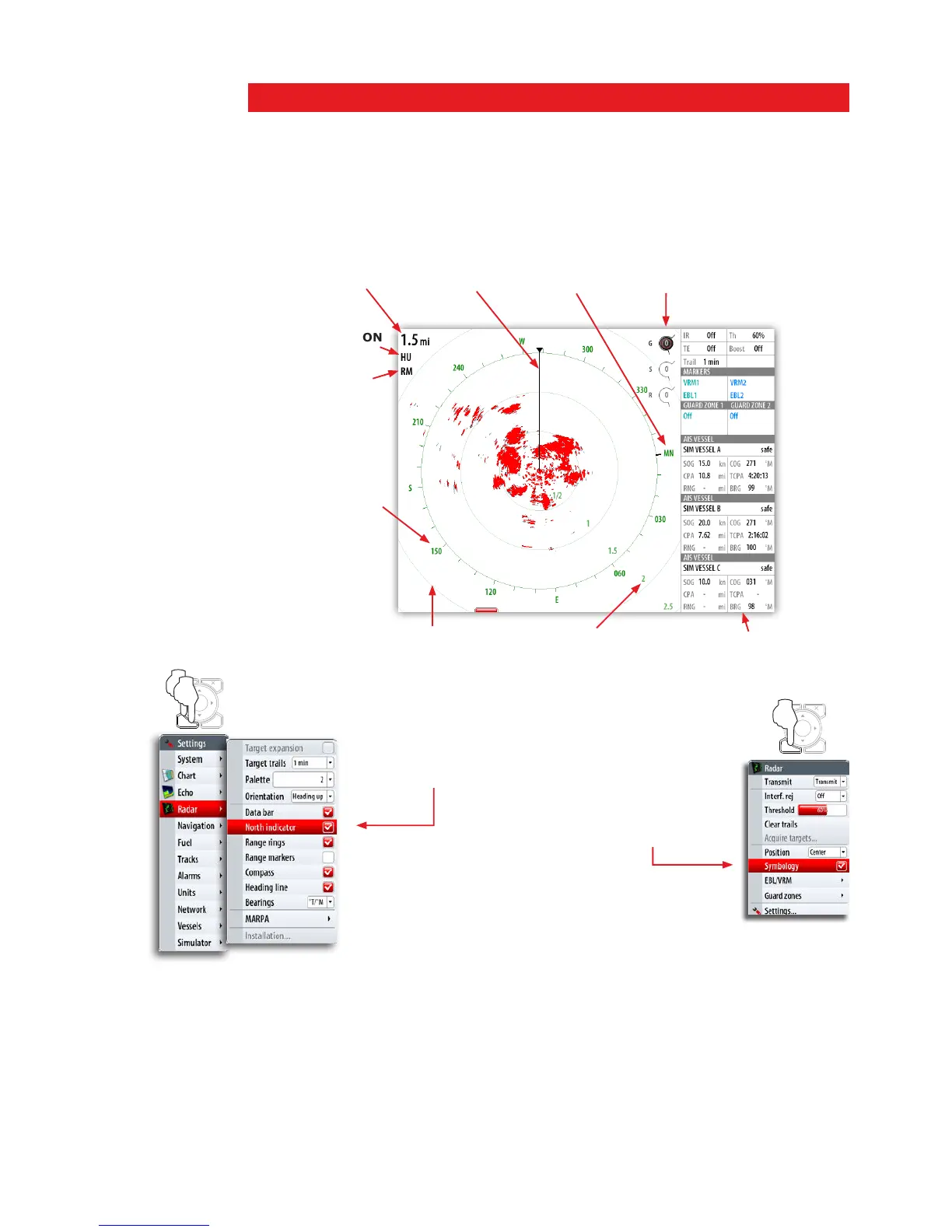

The radar panel
RANGE MARKERS *RANGE RINGS *
NORTH
INDICATOR *
ROTARY
CONTROLS
RANGE
ORIENTATION
MOTION
DATA BAR*
HEADING
LINE *
COMPASS *
* Optional radar symbology
You can turn the optional
symbology on/off individually.
MENU WIN
x2
MENU WIN
The activate symbology can be
turned on/off collectively.
