Simrad NSE12 User Manual

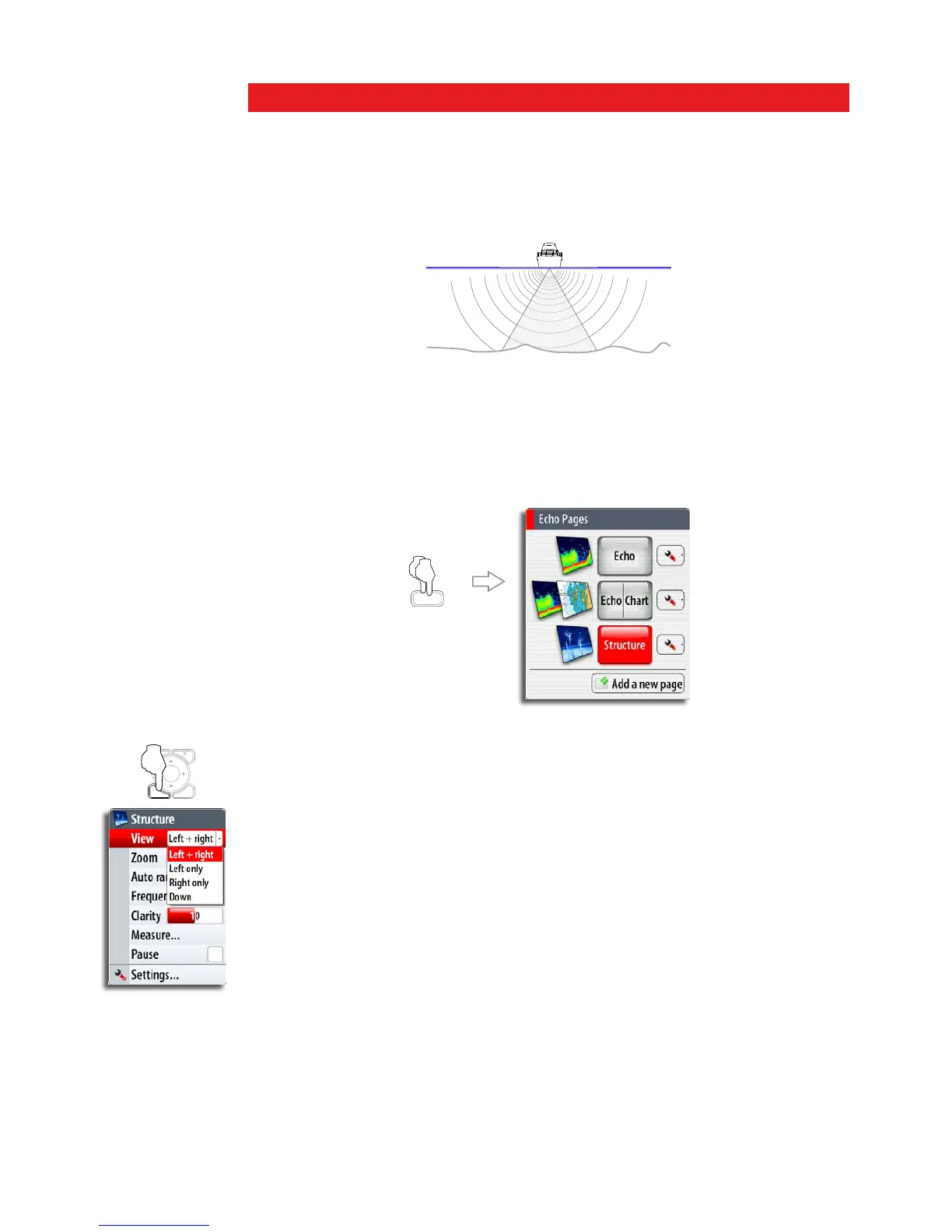

StructureScan | 51
9 StructureScan™
StructureScan™ is an optional hardware module that uses high frequency to provide a
High resolution image of the seabed
StructureScan™ provides a 150 m (480 ft) wide coverage in high detail with SideScan,
while the DownScan™ provides picture perfect images of structure and fish directly
below your boat, down to 90 m (300 ft).
Accessing the StructureScan™ panel
StructureScan is accessed via the ECHO DAK when the StructureScan external box and
transducer are fitted.
ECHO
x2
StructureScan can also be set up in one of the other page groups accessed by the DAK
keys. It can be set up as a single panel or as one of the panels in a multi-panel page.
Refer to the Customizing your NSE system section.
The StructureScan™ images
The StructureScan panel can be set up as a traditional downscan image, or showing left/
right side scanning.
The DownScan image can also be added as an overlay to the traditional Echosounder
image. For more information, refer to The echosounder section.
MENU WIN
