Navigation panels
The Steer and Position panels can be used to display information when you are
navigating.

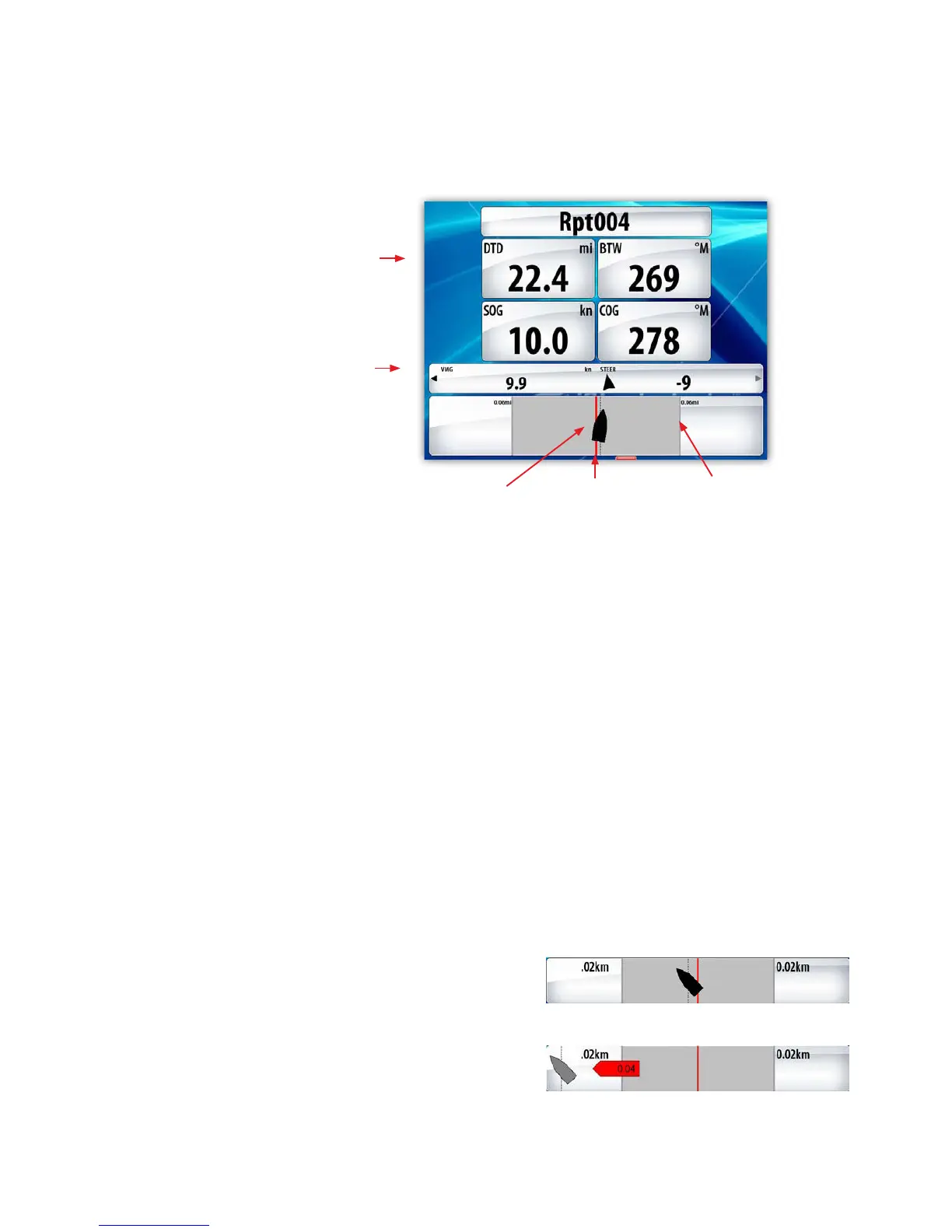

The Steer panel
DATA
FIELDS
U S E L E F T/
RIGHT
ARROW TO
TOGGLE
COURSE
LINE
VESSEL
SYMBOL
OFF COURSE
LIMIT
The Steer panel offers the following information:
DTD Distance to destination
BTW Bearing to waypoint
SOG Speed over ground
COG Course over ground
TTD: Time to destination
ETA: Estimated time of arrival at next waypoint
VMG: Velocity Made Good towards next waypoint.
STEER: Course to steer towards next waypoint
The course line
When travelling on a route the course line shows the intended course from one waypoint
towards the next.
When navigating towards a waypoint (cursor position, MOB or an entered lat/
lon position), the course line will show the intended course from the point at which
navigation was started towards the next waypoint.
Vessel symbol
The vessel symbol indicates distance and
bearing relative to the intended course.
Off course limit
If the XTE exceeds the defined off course
limit (refer below), this will be indicated
with a red arrow including the distance
from the track line
If the off course alarm is enabled, the alarm will activate if the XTE exceeds the defined
off course limit.
