Simrad NSE12 User Manual

Overview | 7
1 Overview

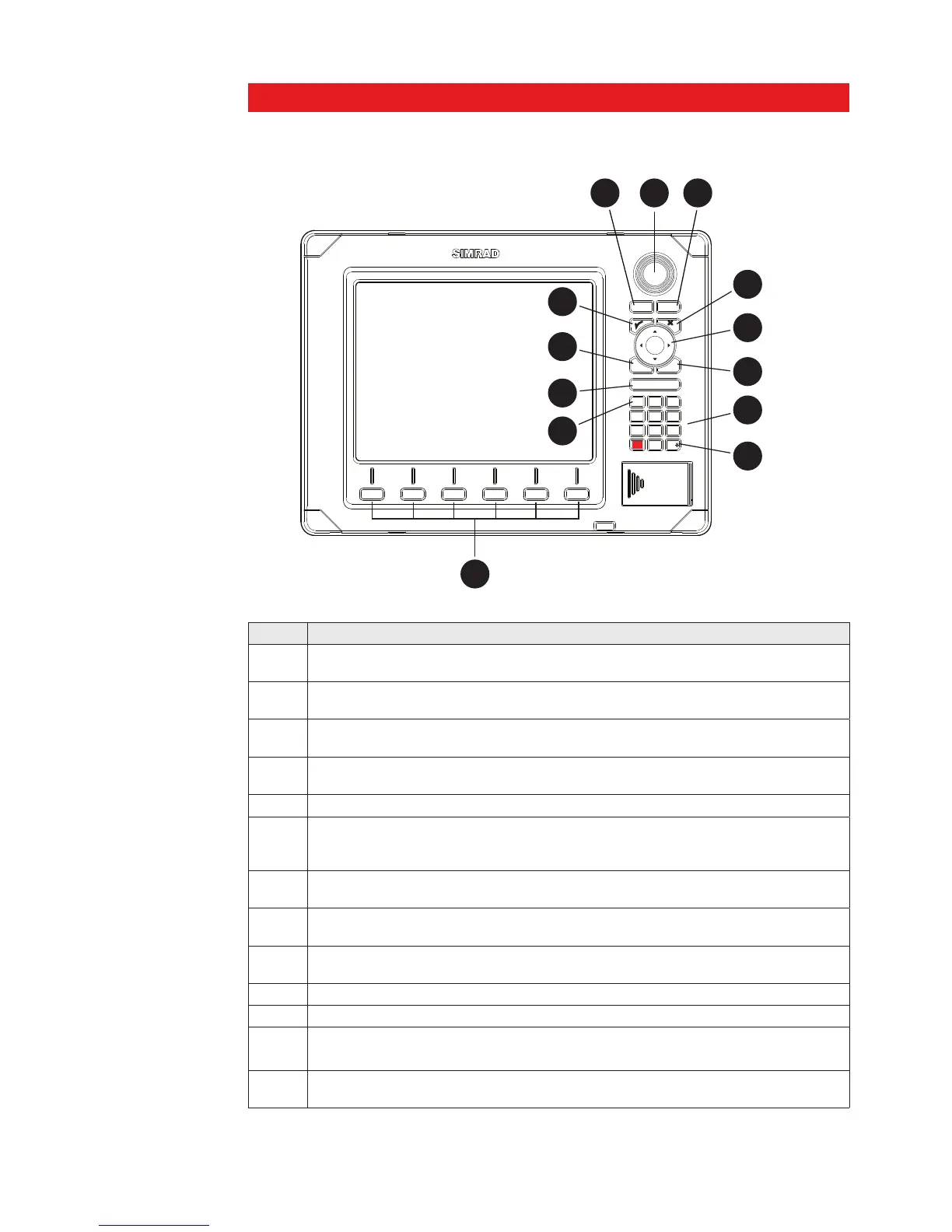

Front panel
ECHORADARCHART NAV INFO PAGES
MENU
PLOT GO TO
MARK VESSEL
WIN
IN
MOB
ABC DEF
1 2 3
JKLGHI MNO
4 5 6
TUV PQRS WXYZ
7
STBY
AUTO
PWR
8
0
9
OUT
1
2 4
6
7
9
13
12
5
8
10
11
3
Key Description
1
Direct Access Keys (DAK). Provide direct access to a page. Repeated presses
of each DAK cycles through several different pages that relate to the DAK
2
PLOT/MARK key. A short press activates the Plot menu, a long press positions
a waypoint at the vessel position
3
Rotary knob. Used to maneuver in the menu system, and for context specific
operation
4
GOTO/VESSEL key. A short press activates the Goto menu, a long press
centers the chart to vessel position
5
P (
6
X (Exit) key. Used to close dialogs, and to return to previous menu level.
Toggles between cursor and vessel position on chart panels. Removes the
cursor from the screen on radar and echosounder panels
7
Cursor keypad used to move the cursor on the display, and to maneuver in the
menu system
8
MENU key. A single press displays the context menu for active panel/overlay/
operation. Pressing the key twice displays the Settings menu
9
WIN key, used on multiple panels pages. A short press toggles between the
panels, a long press expands active panel to a full page panel
10 Zoom keys for radar, echosounder and chart pages
11 MOB key. A long press positions a MOB waypoint at the vessel’s position
12
Alpha numeric keypad used for entering numbers and text in dialog boxes.
NOTE: The STBY/AUTO key is reserved for future use.
13
Power key. A short press activated the Light dialog, a long press turns the unit
off
