Sirona Intego - Opening the Dentist Element

64 57 316 D3543
D3543.076.01.04.02 06.2015
101
Sirona Dental Systems GmbH 7Replacing components
Service Manual INTEGO / INTEGO pro 7.2Removing the cover
båÖäáëÜ
7.2.2.2
Opening the dentist element
✔ The treatment center is switched off and the instruments have been
put aside.

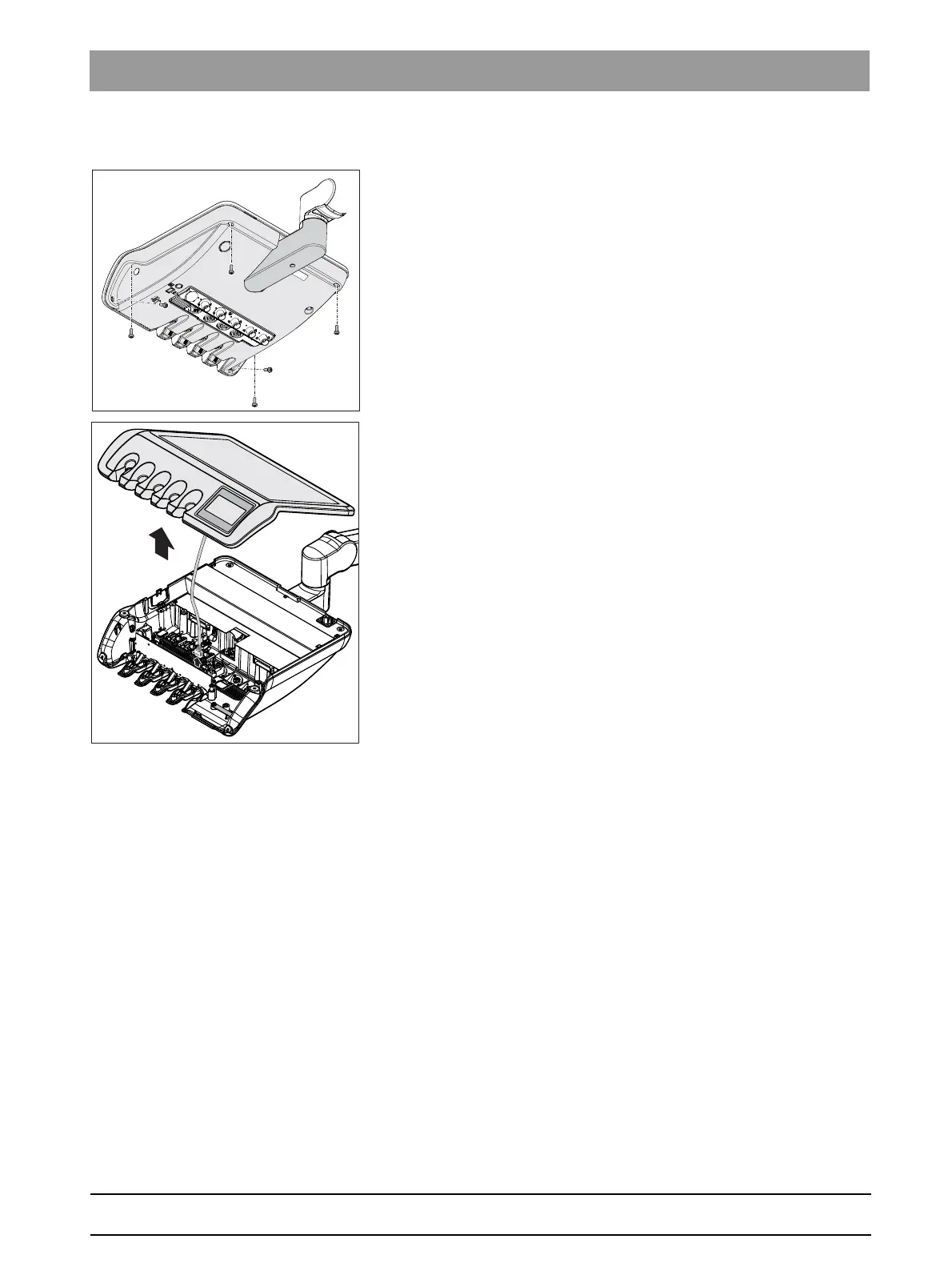

1. Unscrew the 6 screws from the underside of the dentist element.
2. Lift up the lid and pull connector X2 off the DAB board.
X2
