6.3.5 DAR board – Relay module

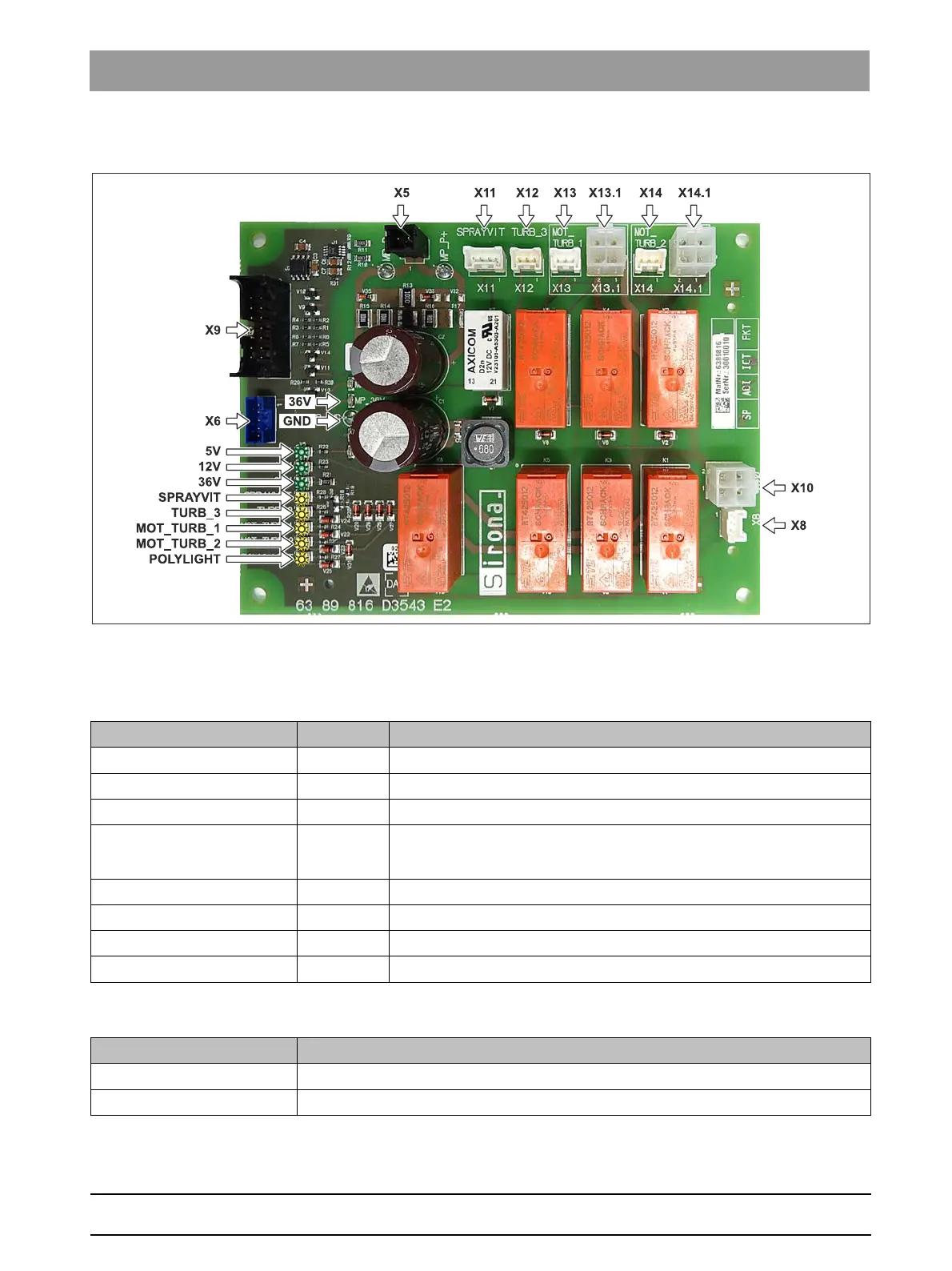

Components on the board
LEDs
Measuring points
LED Color Function
36V Green 36V input voltage
12V Green Generated +12 V voltage
5V Green Generated +5 V voltage
SPRAYVIT yellow Sprayvit voltage present at output
LED also lights up when all instruments have been set down
MOT_TURB_1 yellow Motor 1/turbine 1 voltage present at output
MOT_TURB_2 yellow Motor 2/turbine 2 voltage present at output
TURB_3 yellow Turbine 3 voltage present at output
POLYLIGHT yellow Polylight voltage present at output
Measuring point Function
36V Voltage measurement
GND Voltage measurement
