Sirona Intego - DAI Board - Instrument Light Supply

64 57 316 D3543
D3543.076.01.04.02 06.2015
65
Sirona Dental Systems GmbH 6Overview of modules and boards
Service Manual INTEGO / INTEGO pro 6.3Dentist element
båÖäáëÜ

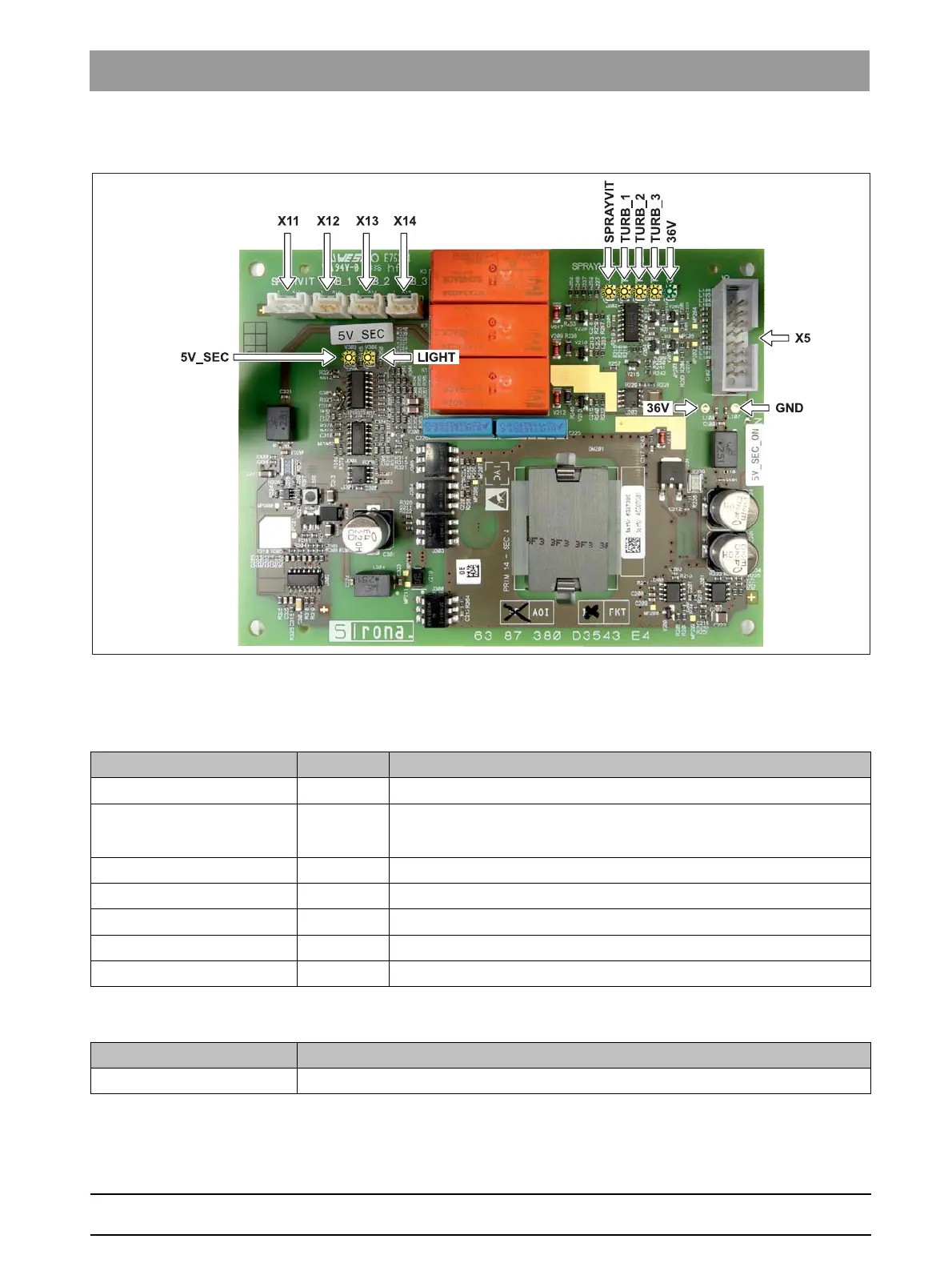

6.3.6 DAI board – Instrument light supply
Components on the board
LEDs
Function pads
LED Color Function
36 V Green 36 V input voltage
SPRAYVIT yellow Sprayvit voltage present at output
LED also lights up when all instruments have been set down
TURB_1 yellow Turbine 1 voltage present at output
TURB_2 yellow Turbine 2 voltage present at output
TURB_3 yellow Turbine 3 voltage present at output
LIGHT yellow Light activation for instrument active
5V_SEC yellow 5 V secondary voltage active
Function pad Function
5V_SEC_ON Enable signal for light supply secondary voltage
