6.4.2 DWEm board compact water unit control

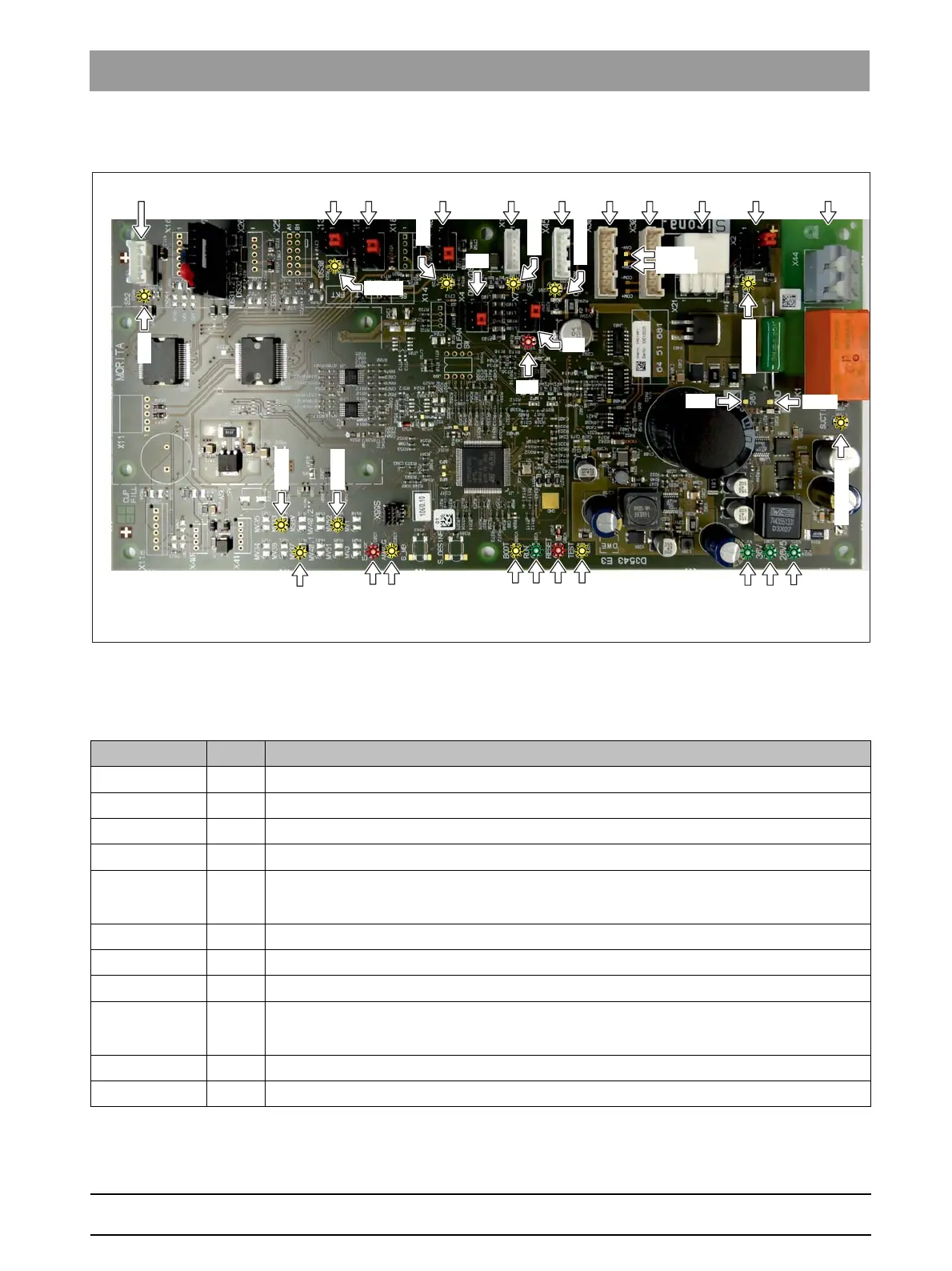

Components on the board
LEDs
LED Color Function
36 V Green 36 V input voltage
5 V Green generated +5 V voltage
26.5V Green Generated +26.5 V voltage
RUN Green Flashes 1x per second during normal operation
Error Red Illuminated: Error involving solenoid valves
2x flashes: Loss of communication with DSA
Reset Red Lights up while the board is performing a reset
BOOT yellow Lights up after switching on and remains lit until completion of the boot process
S3 Red Illuminated: Amalgam separator tank disassembled
AMALG yellow Illuminated: Amalgam separator 95%
Flashing: 100% full
MOTOR yellow Illuminated: Amalgam motor active
SUCTION yellow Illuminated: Suction machine active
X15 X13 X12 X8 X1 X31 X30 X2X45 X21 X44
MOTOR
X4
S3
ASE_SUC
OPL_PW
DN30/DS
DS30
SUCTION
5V
36V
26.5V
BOOT
RUN
RESET
MV33 MV52
MV37
TEST
36V
GND
CAN-
CAN+
S52
X7
ERROR
AMALG
