Sirona Intego - Instrument Allocation for Tray 2 and 3

64 57 316 D3543
D3543.076.01.04.02 06.2015
151
Sirona Dental Systems GmbH 10Service and configuration of the treatment center
Service Manual INTEGO / INTEGO pro 10.3Service settings with EasyTouch user interface
båÖäáëÜ

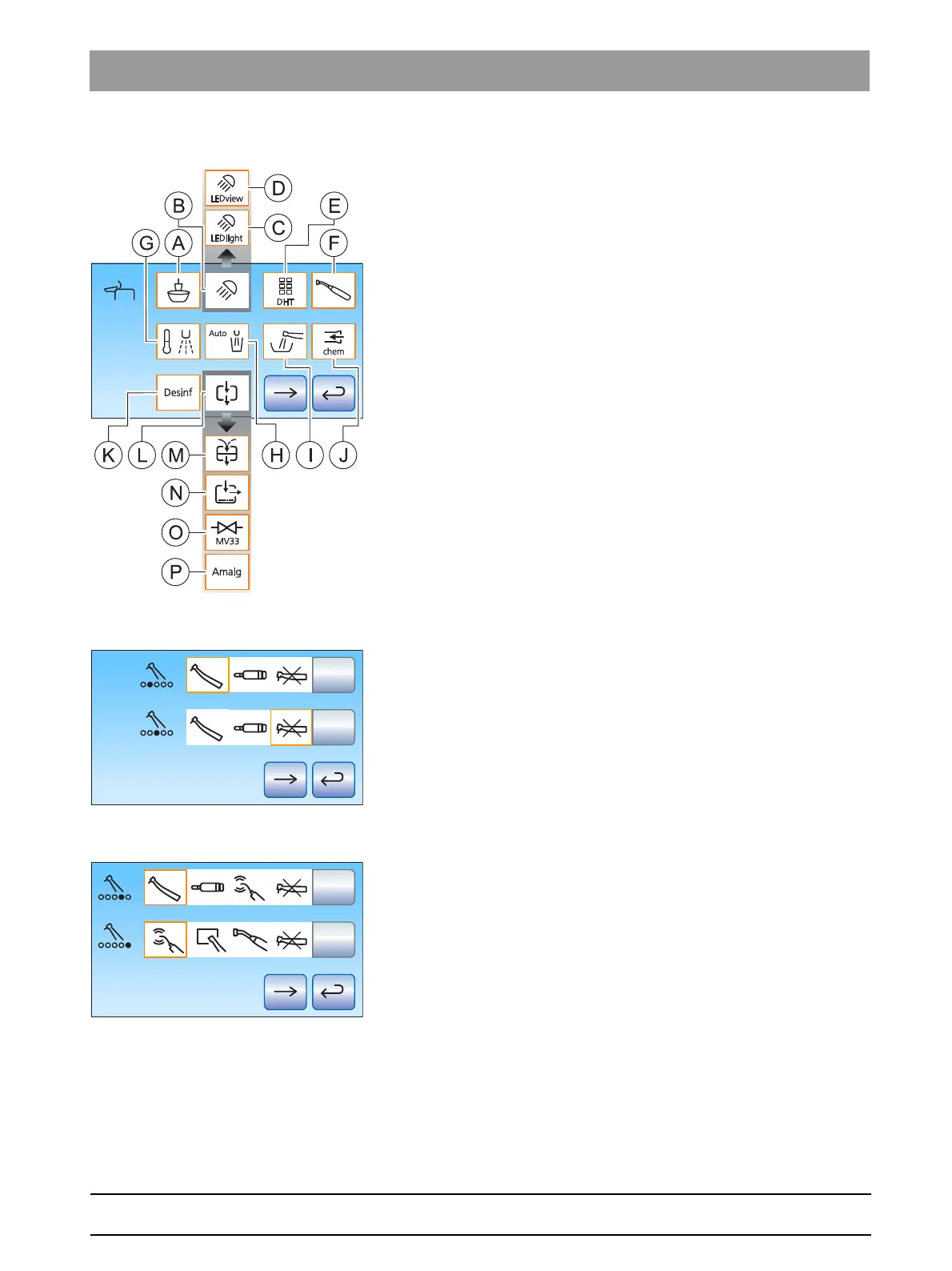

10.3.2.6.4 Water unit service information
✔ If the field is orange, the option has been detected.
➢ (A) Mouth rinse basin
➢ (B) No treatment lights
➢ (C) LEDlight
➢ (D) LEDview
➢ (E) Assistant element
➢ (F) Polylight assistant element
➢ (G) Water heater
➢ (H) Automatic mouth glass filling
➢ (I) Purge
➢ (J) Chemical suction tube cleaning
➢ (K) Disinfectant system
➢ (L) No water supply detected (error)
➢ (M) Dry wet suction
➢ (N) Sedimentation unit
➢ (O) Position selector
➢ (P) Amalgam separator
10.3.3 Instrument allocation for tray 2 and 3
➢ Press the corresponding function key for tray 2 or 3 in order to
allocate the possible instruments.
 The orange field displays the allocated instrument.
10.3.4 Instrument allocation for tray 4 and 5
➢ Press the corresponding function key for tray 4 or 5 in order to
allocate the possible instruments.
 The orange field displays the allocated instrument.
