6Overview of modules and boards Sirona Dental Systems GmbH
6.6LEDview Service Manual INTEGO / INTEGO pro
6.6
LEDview

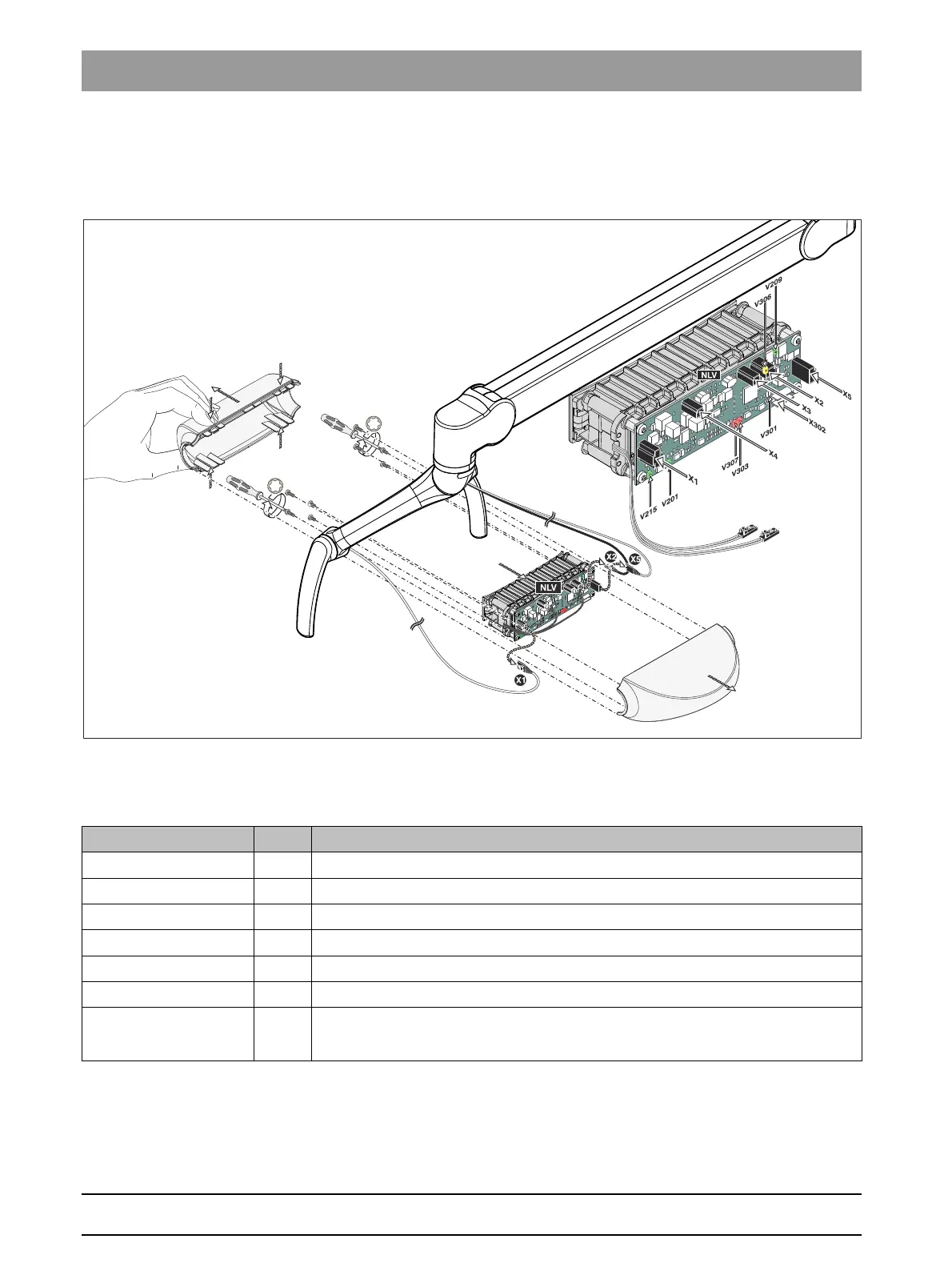

6.6.1 NLV board - LEDview control
DARWIN description
Components on the board
LEDs
LED Color Function
24-32VDC Green 32V input voltage
3.3 VDC Green 3.3V operating voltage
5VDC Green 5V operating voltage
RUN Green Flashes 1x per second during normal operation
RESET Red Lights up while the board is performing a reset
BOOT yellow Lights up after switching on and remains lit until completion of the boot process
ERROR (red) Flashing:
2x No connection to DSA
