Sirona Dental Systems GmbH 5Important information
Service Manual INTEGO / INTEGO pro 5.11Connecting the motors and turbines in the dentist element
båÖäáëÜ
5.11
Connecting the motors and turbines in the dentist
element
Various wiring diagrams exist for the motors and turbines due to the
different configuration options that are available for the dentist element.

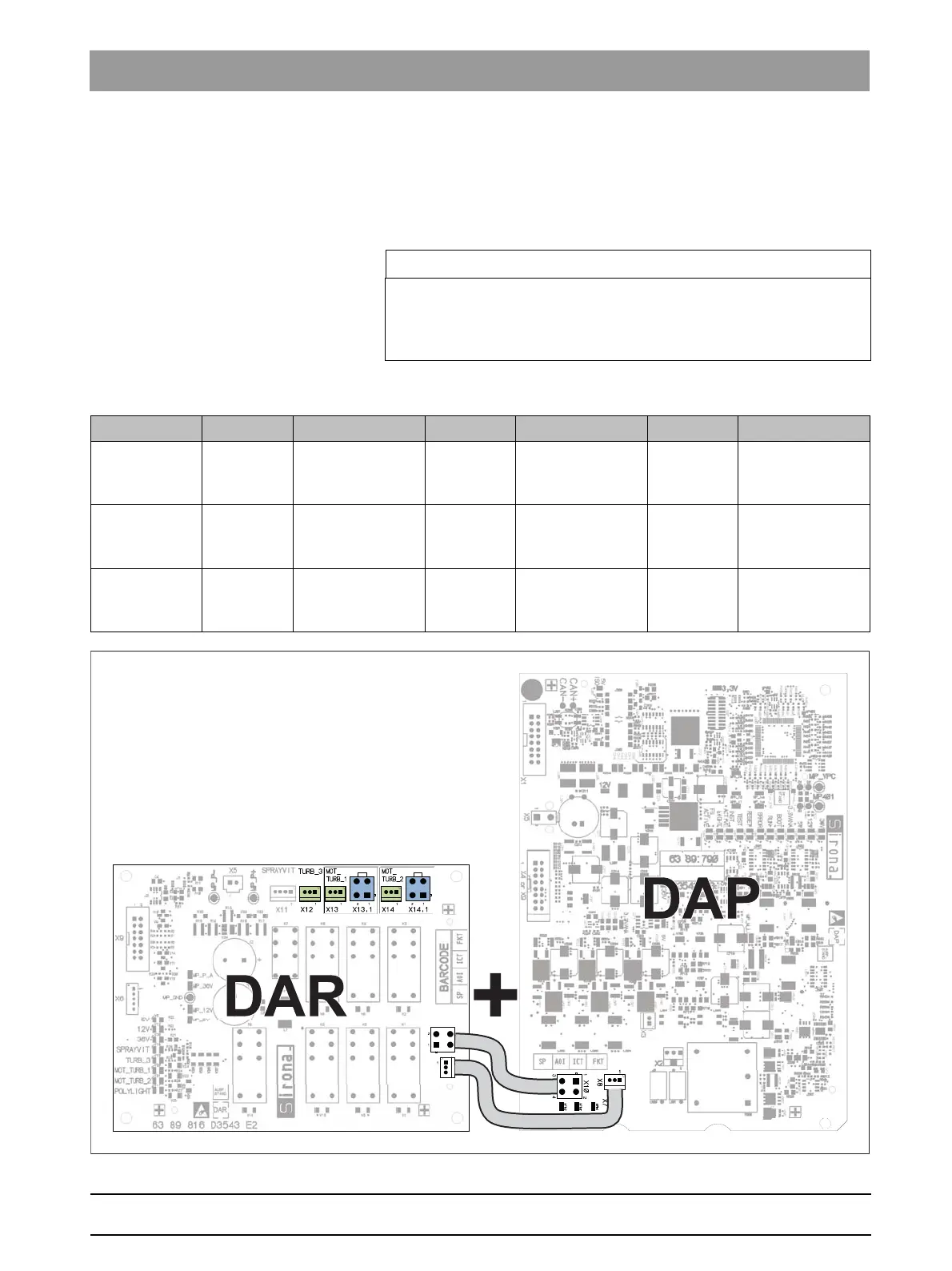

DAR and DAP combination
IMPORTANT
The terminal assignment is independent of the allocation of instruments
in the trays! The allocation is made by the software in the service
settings. See "Instrument allocation for tray 2 to 5", for
EasyPad [ → 142], for EasyTouch [ → 151].
Drives Instrument Connected to Instrument Connected to Instrument Connected to
Without motor 1. High-
speed
handpiece
MOT_TURB_1 2. High-
speed
handpiece
MOT_TURB_2 3. High-
speed
handpiece
TURB_3
One motor 1. Motor MOT_TURB_1 1. High-
speed
handpiece
MOT_TURB_2 2. High-
speed
handpiece
TURB_3
Two motors 1. Motor MOT_TURB_1 2. Motor MOT_TURB_2 1. High-
speed
handpiece
TURB_3
