Sirona Intego - NAA Board - Apex Locator

64 57 316 D3543
74 D3543.076.01.04.02 06.2015
6Overview of modules and boards Sirona Dental Systems GmbH
6.3Dentist element Service Manual INTEGO / INTEGO pro

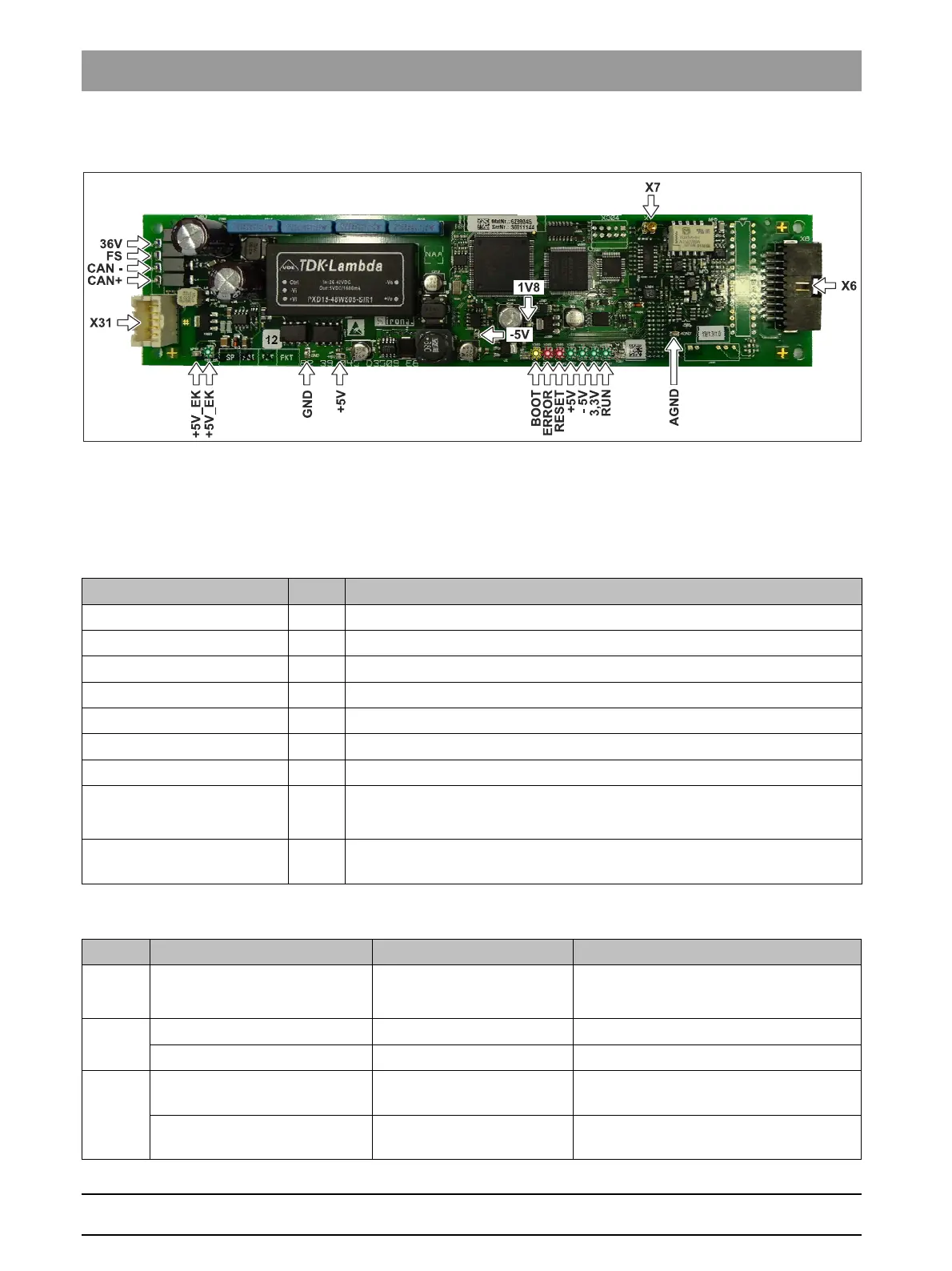

6.3.11 NAA board - Apex locator
Overview of DARWIN board
NAA - Apex locator
Components on the board
LEDs
Connector
LED Color Function
36VDC Green 36 V input voltage
-5V Green Generated -5 V voltage
+3.3V Green Generated +3.3 V voltage
+5V Green Generated +5 V voltage
Run Green Flashes 1x per second during normal operation
+5V EK Green Operating voltage
Reset Red Lights up while the board is performing a reset
Error Red Flashing:
2x No connection to DSA
Boot yellow Lights up after switching on and remains lit until completion of the boot
process
Source Destination Location Function
X6 X2
NAH
Dentist element
X7 X7 DAP Dentist element
X7 DAPm Dentist element
X31 X1 DAP Dentist element Power supply, CAN, foot control, chair
stop
X4 DAPm Dentist element Power supply, CAN, foot control, chair
stop
