Overview of modules and boards
6.1
Locations of modules and boards

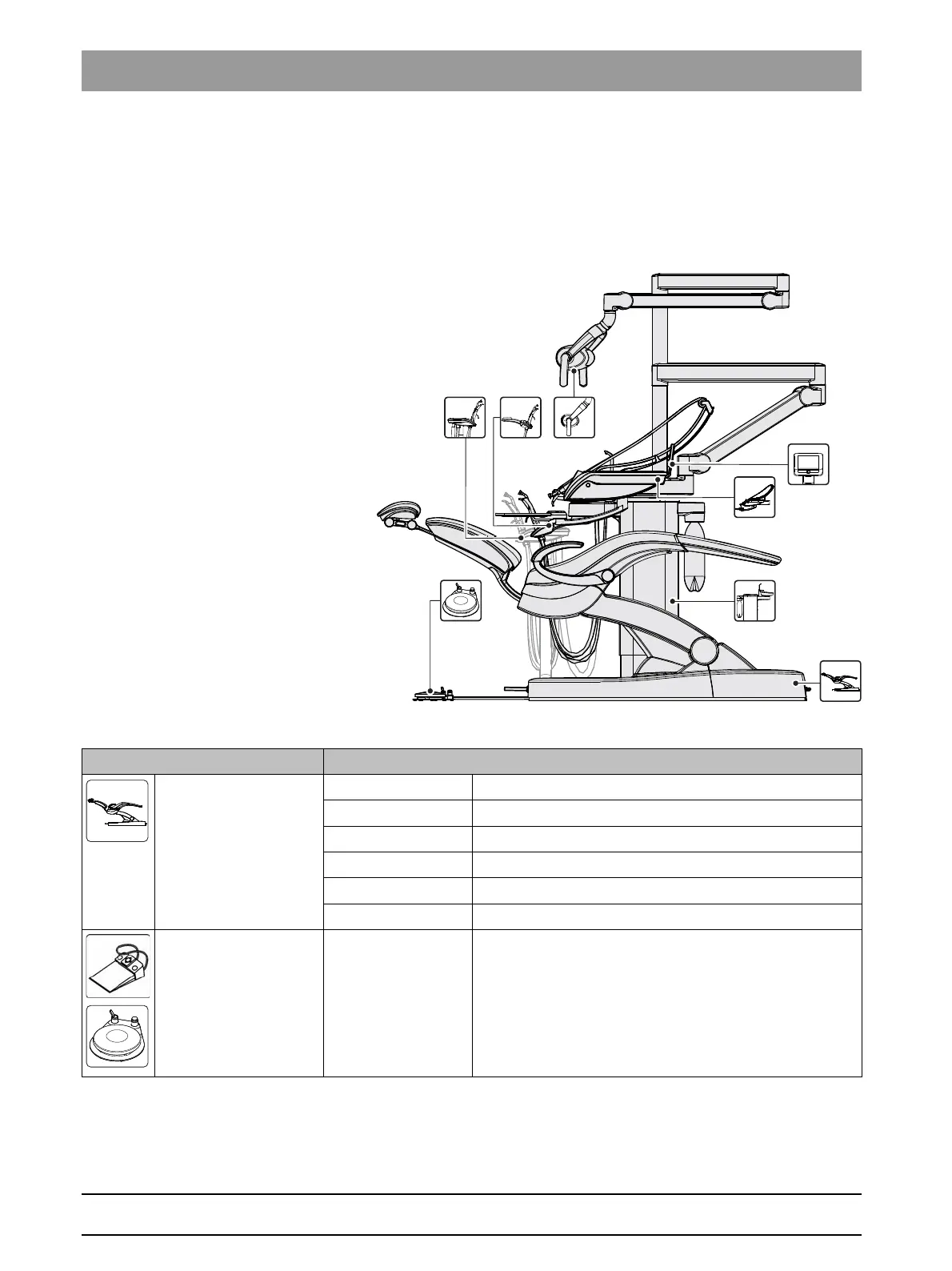

INTEGO
The table shows the maximum possible configuration for the boards.
Component Board/module
Patient chair DSA Patient chair control [ → 45]
DSL LAN interface [ → 53]
DSS Treatment center unit memory [ → 52]
DSU USB connection to patient chair [ → 54]
Power supply unit -
DC/DC converter -
Foot control
