Sirona Intego - DSL Board - LAN Interface

64 57 316 D3543
D3543.076.01.04.02 06.2015
53
Sirona Dental Systems GmbH 6Overview of modules and boards
Service Manual INTEGO / INTEGO pro 6.2Patient chair
båÖäáëÜ

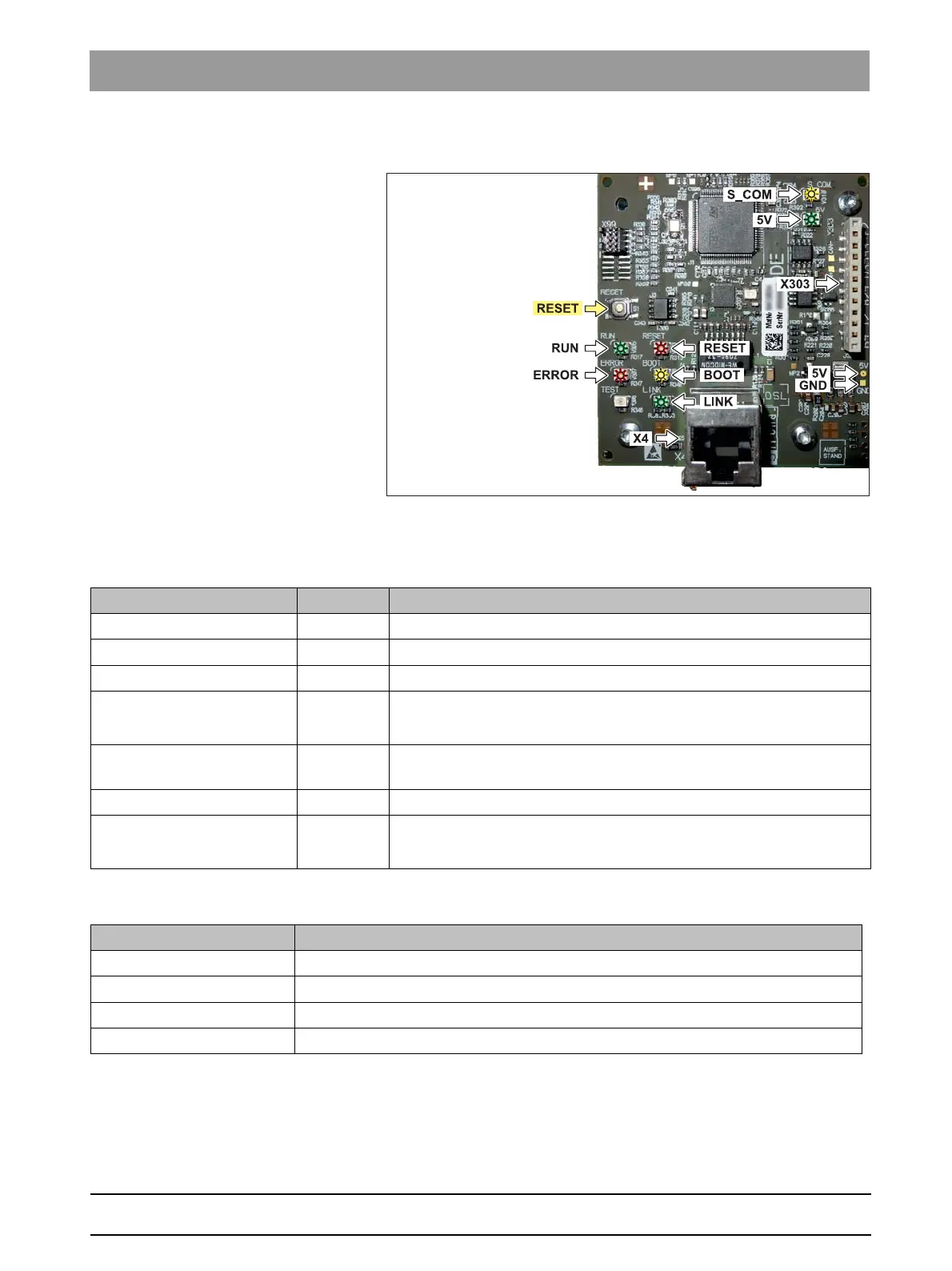

6.2.4 DSL board – LAN interface
Components on the board
LEDs
Measuring points
LED Color Function
5 VDC Green Power supply
RUN Green Flashes 1x per second during normal operation
RESET Red Lights up while the board is performing a reset
ERROR Red Flashing:
2x No connection to DSA
Boot yellow Lights up after switching on and remains lit until completion of the boot
process (approximately 60 seconds)
S-COM yellow Illuminated: Connection active
LINK Green Illuminated: Connection active
Flashing: Data transmission active
Measuring point Function
MP_CAN+ Terminating resistor measurement
MP_CAN- Terminating resistor measurement
5 V Voltage measurement
GND Voltage measurement
